VARMEC RCV 252 - Page 22

22

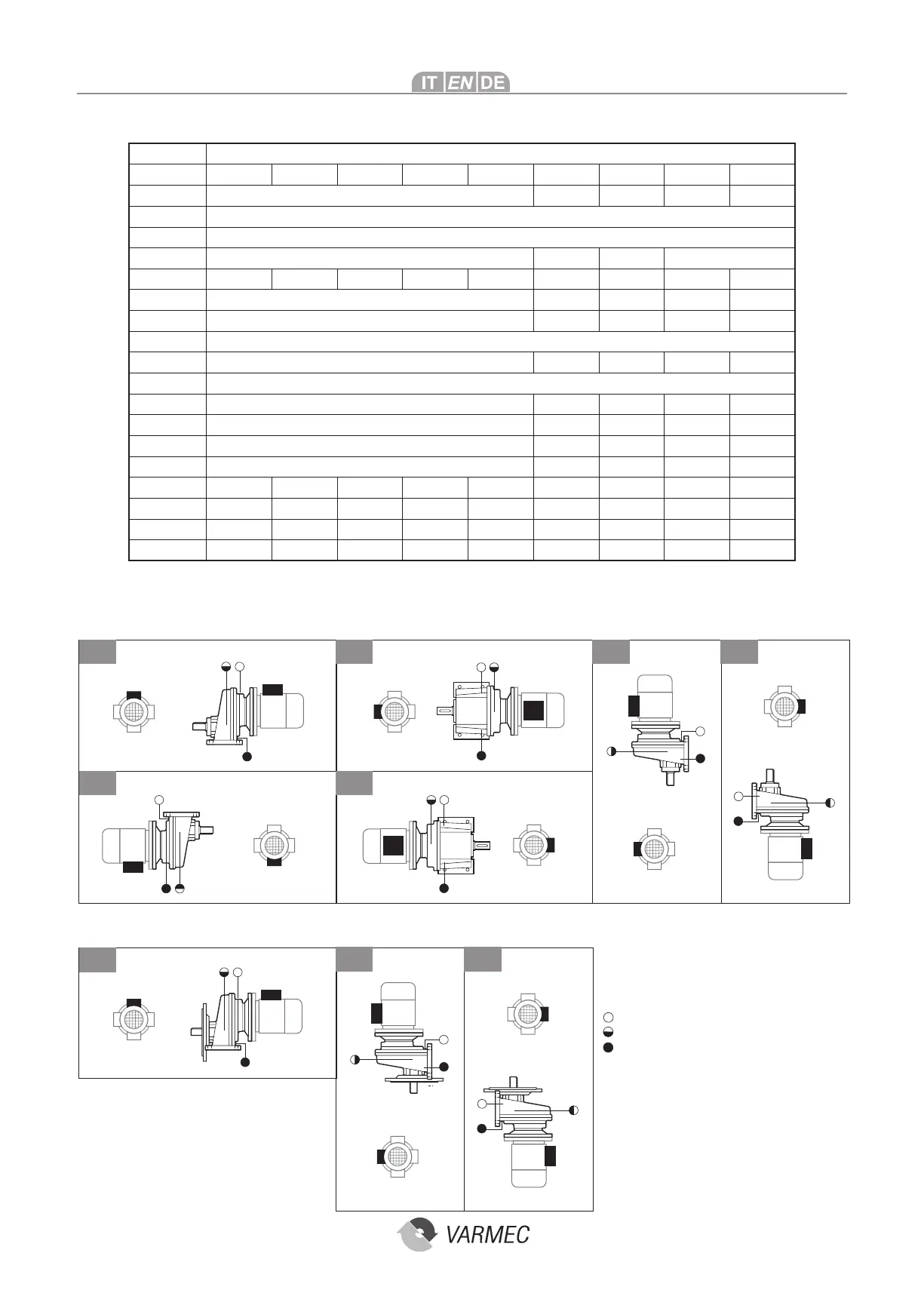

Posizioni di montaggio / Assembly position / Einbaulage
RCV B3 B5 B6 B7 B8 V1 V3 V5 V6
141 0.16 0.19 0.15 0.19 0.15
191 0.28
241 0.4
281 0.7 0.4 1.0 0.7
381 0.8 0.8 1.5 1.5 2.0 0.4 2.0 1.0 2.0
162 0.17 0.27 0.25 0.27 0.25
202A 0.2 0.33 0.28 0.33 0.28
202-203 0.55
252A-253A 0.55 0.55 0.6 0.55 0.6
252-253 0.7
302A 1.0 1.15 1.10 1.15 1.10
303A 1.0 1.35 1.30 1.35 1.30
302-303 1.3 1.5 1.3 1.5 1.3
352-353 1.3 1.5 1.3 1.5 1.3
452-453 2.5 2.3 2.3 2.3 2 2.9 3.4 3 3.4
552-553 3.8 3.5 3.5 3.5 3 4.5 5.8 5 5.5
582-583 4.9 4.9 4.9 4.9 5.6 7.3 8.5 7.3 8.5
602-603 8.5 8.5 8.0 8.0 8.5 12.5 12 12.5 12
Quantità di lubricante
Posizioni di montaggio e orientamen-
to morsettiera
Quantity of lubricant
Schmiermittelmenge
Assembly position and orientation of
terminal box
Einbaulage und Einbau der War-
tungsanschlüsse
A
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
B
B
C
C
C
C
C
C
C
C
C
D
D
D
D
D
D
D
D
D
B5
B3
B8
B6
B7
V1
V3
V5
V6
CV..1-RCV..1/P,PF
CV
..1-RCV..1/N,NF
Tab.4
Carico olio / Breather plug / Öleinfüllung
Livello olio / Level plug / Ölstand
Scarico olio / Drain plug / Ölablass
