Vasa SwimErg User’s Manual
PART 1 - Assembly

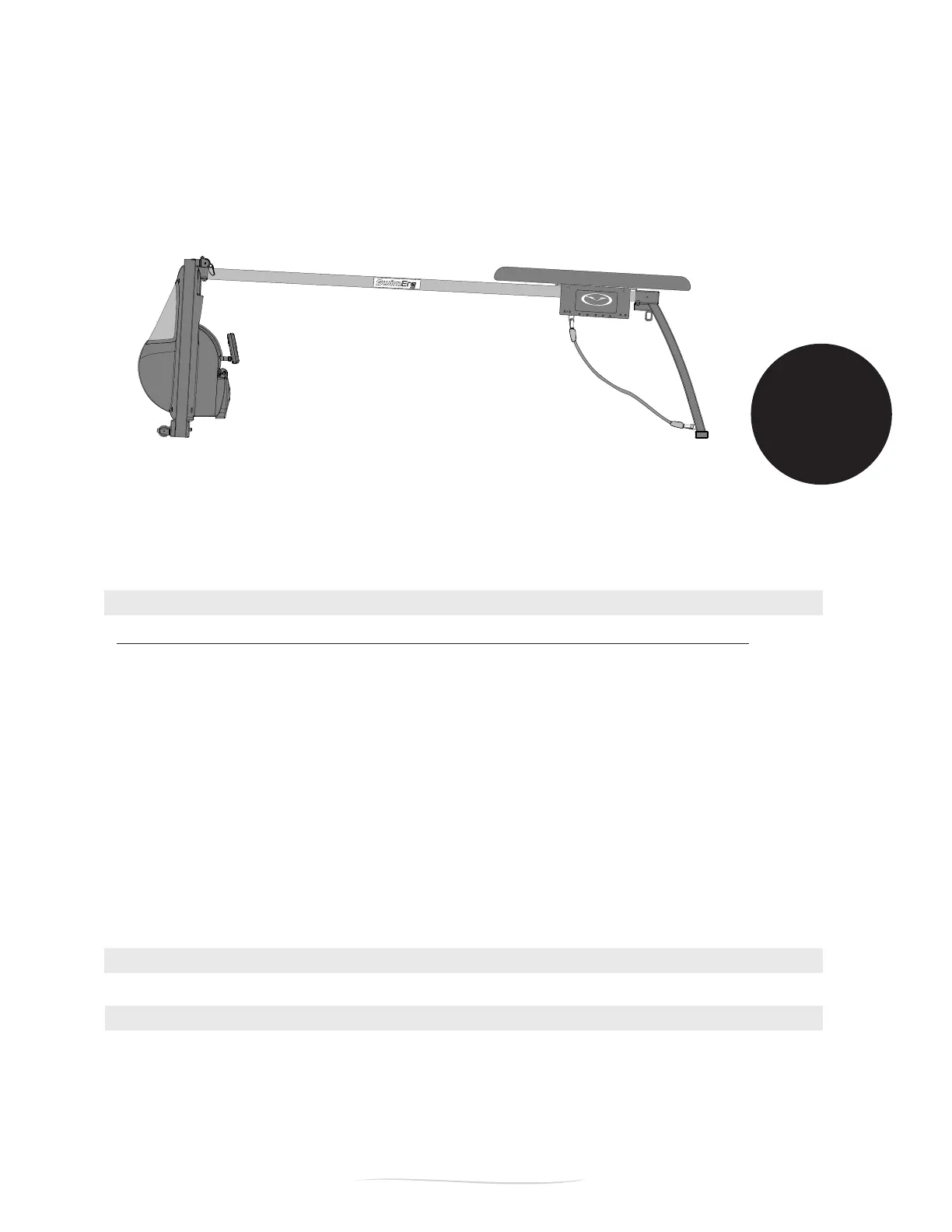

PART NAME
1. Front Assembly
2. Monorail
3. Bench
4. Seat Carriage
5. Stretch Cord
6. Rear Stanchion
7. Power Meter
8. Damper Door
9. Wheel Bracket Assembly
(Swim paddles, exercise handles not shown)
V A S A
➊
➋
➎
➌
➏
➐
➑
➒
VASA SWIMERG - PARTS LIST
PART 1 - ASSEMBLY
1.1 - VASA SWIMERG - PARTS DESCRIPTIONS
BOX 1 CONTENTS (36x16x9 inches / 91x40x22 cm)
PART NAME PART # QUANTITY LOCATION
REAR STANCHION ASSEMBLY VE-2 1 BOX 1
STANDARD BENCH (or XL Bench) 4P (XL UPGR) 1 BOX 1 (XL IN BOX 4)
SEAT CARRIAGE ASSEMBLY 3-VT-SCA 1 BOX 1
WHEEL BRACKET ASSEMBLY VE-1-WBC 1 INNER BOX
STRETCH CORD 9SC-DLX 1 INNER BOX
EXERCISE HANDLES 8M-WHD 1 pair INNER BOX
POWER PADDLES PWR PPAD 1 pair INNER BOX
INSTRUCTION MANUAL IM-ERGO-V2 1 INNER BOX
HARDWARE BAG (see below) 1 bag INNER BOX
button head screw - 2 1/2” 11P 2
hex jam nut 18PS 2
hex cap screw - 1” (yellow zinc) 14SC 4
lock washer 14A-P 4
atwasher 19P 4
hex key allen wrench - 3/16” 12A-PS 1
hex key allen wrench - 5/32” 12B-PS 1
wrench - 7/16” 14B-PS 1
screwdriver VE-1-SDR 1
monorail reinforcement angle VT-MRA 2
BOX 2 CONTENTS (89x3x3 inches / 226x7x7 cm)
MONORAIL MONO-ERG 1 BOX 2
BOX 3 CONTENTS (35x29x18 inches / 88x73x45 cm)
FRONT SWIMERG ASSEMBLY ERGO-FE 1 BOX 3
POWER METER (+ mounting bracket & batteries) VM-1-PM2-BLE 1 INNER BOX
SAVE
ALL
PACKAGING
Box & inner packaging
for Box #3
➍
