Vasa SwimErg User’s Manual
August 2022
PART 3 - Maintenance & Troubleshooting
V A S A

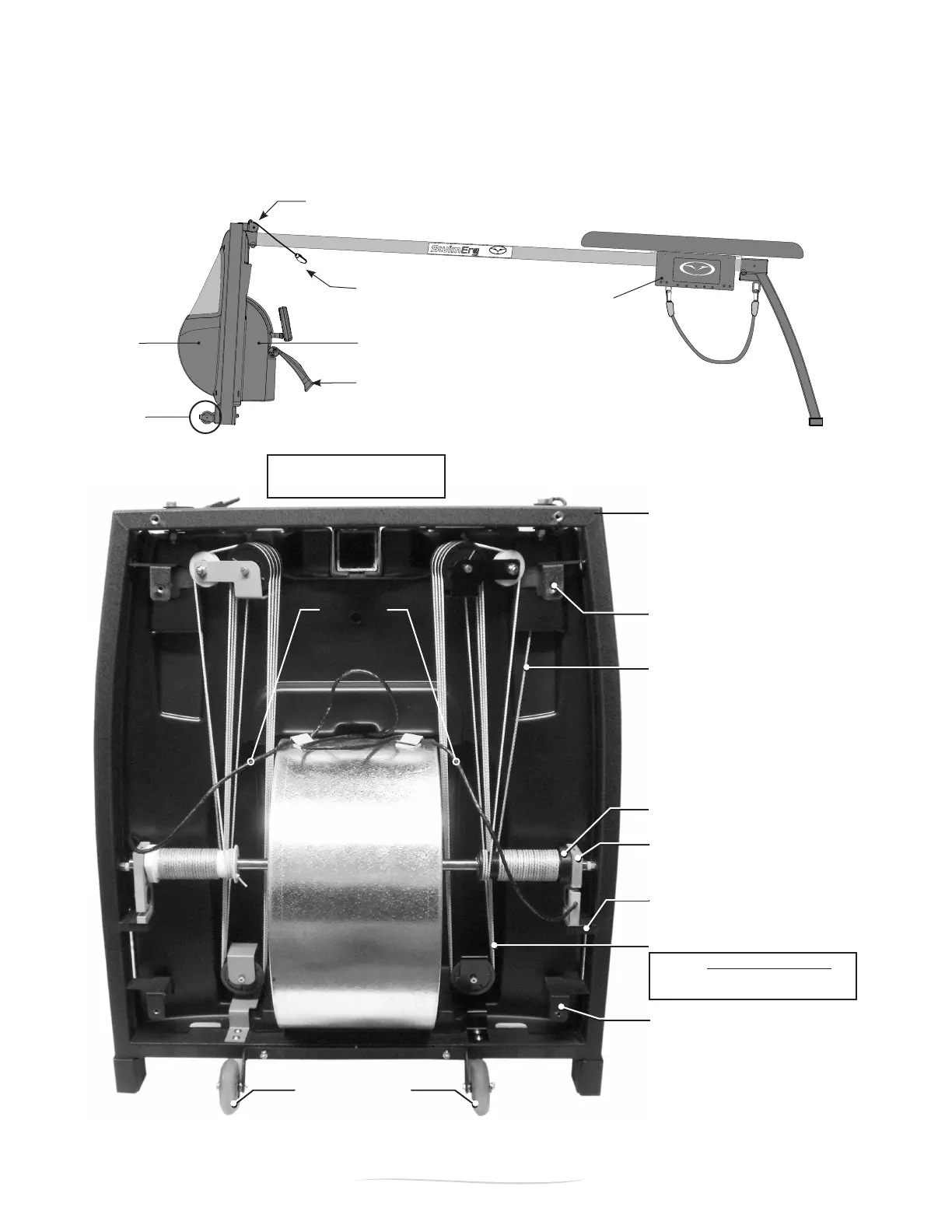

load cell
load cell mounting bracket
front end frame weldment
drive spool
(black spool & white spool)
drive cord
rewind shock cord / rewind system
monitor
connection
cable
(part of the
load cell)
front cover mounting bracket
front cover mounting bracket
front end assembly
front (inlet) cover removed
CAUTION: Do NOT attempt to remove
the cords without proper instruction. The
rewind cord is under tension.
(Production Date
located here)
fan housing
damper door
front/inlet
cover
wheel
bracket
stretch cord
drive cord
& drive cord clip
idler pulley
rear/outlet cover
seat carriage
(holds seat rollers)
wheels mounted on
wheel bracket
