Vasa SwimErg User’s Manual
August 2022
REAR
STANCHION
STANDARD
BENCH
XL BENCH
IN BOX #4
SEAT CARRIAGE
WHEEL BRACKET
ASSEMBLY
STRETCH CORD
POWER PADDLES EXERCISE HANDLES
MONORAIL (16AL-E)
2 1/2” button
head screw (2)
hex jam nut (2)
1” hex cap screw (4)
lock washer (4)
at washer (4)
3/16” hex key allen
wrench (1)
5/32” hex key allen
wrench (1)
7/16” wrench (1)
HARDWARE BAG INCLUDES:
POWER METER
FRONT END
ASSEMBLY
BOX #1
BOX #3
BOX #2
PART 1 - Assembly
SAVE
ALL
PACKAGING
Box & inner packaging
for Box #3
1.2 - ASSEMBLING YOUR VASA SWIMERG
SWIM ERG ASSEMBLY VIDEO
View under the FAQ tab on this page:
https://vasatrainer.com/product/swim-SwimErg-swimming-machine/

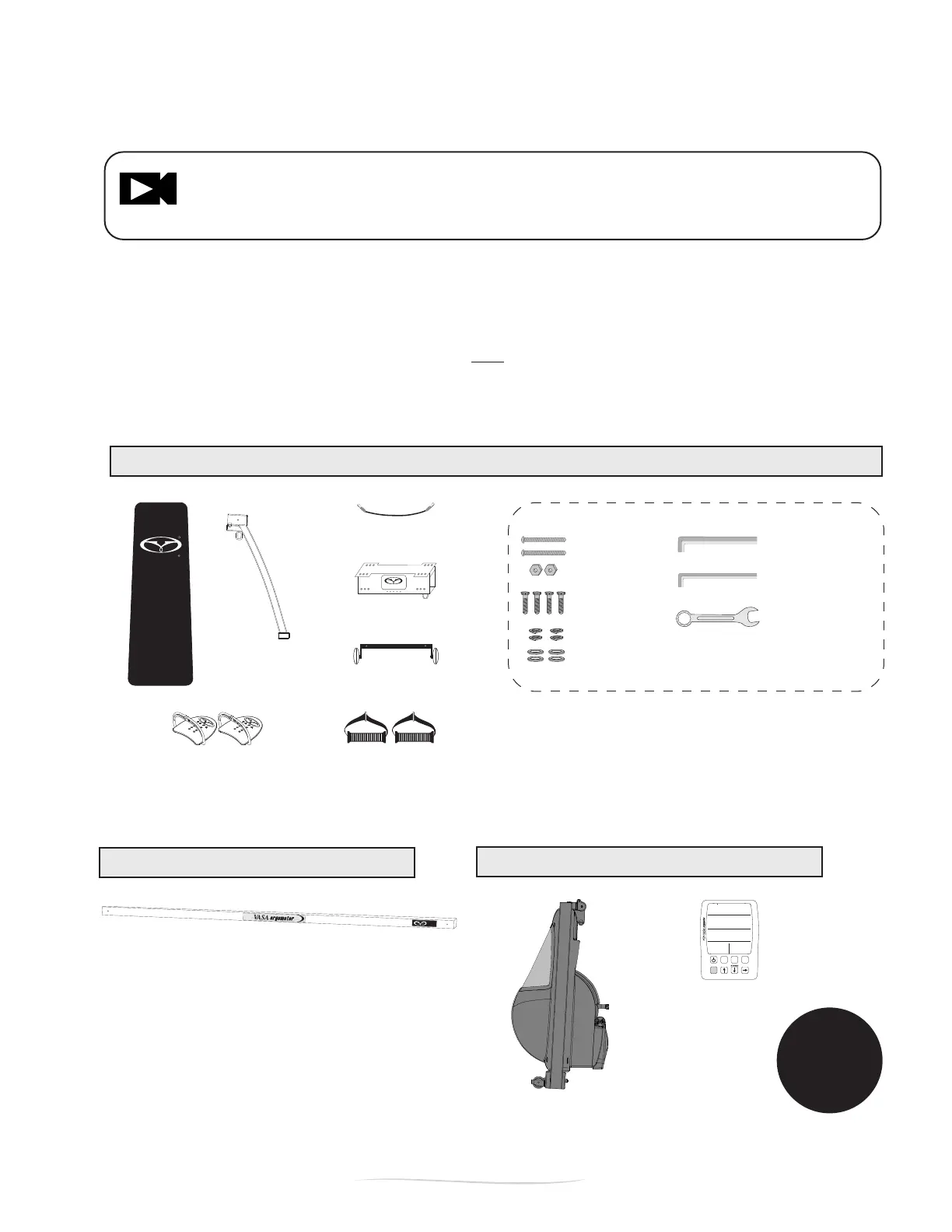

UnpackandassembleyournewVasaSwimErginthespecicorderoutlinedbelow(unpackandassemble
the parts from Box 1 and Box 2 as instructed, then you will unpack and attach the front assembly from
Box3).Thisspecicorderistoavoidanydamagetothefrontassembly.
STEP 1: UNPACK BOX 1 AND BOX 2 (DO NOT UNPACK BOX 3 YET)
1.1.UnpackBox1andBox2andlaythecontentsoutontheoor.
