VAT 075 Series User Manual

Series 075 DESIGN AND FUNCTION
601899EC
Edition
2014
-
08
-
20
9
/
29
3.2 Function
The 075 ATM door consists of two vertical pneumatic cylinders, one pneumatic box and
three horizontal actuators. The vertical cylinders move from open to closed position in the
vertical direction. The horizontal actuators move the gate from the open position to the
closed position in horizontal direction. The gate moves in a so called L-movement.

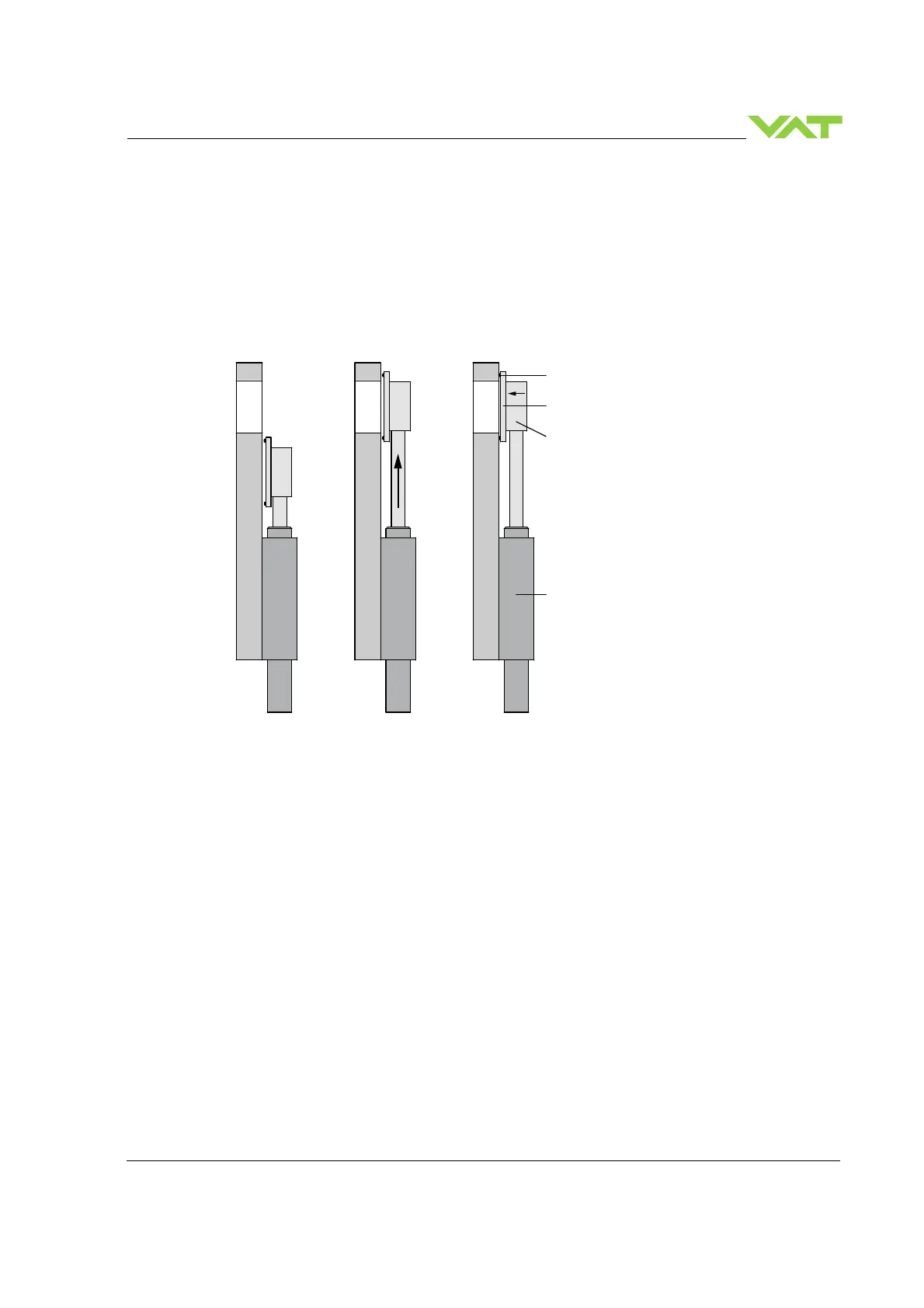

OPEN CLOSED CLOSED
unlocked locked
1 Gate O-ring
2 Gate
3 Pressure element
4 Pneumatic actuator
Figure 3-2
1
2
4
3
