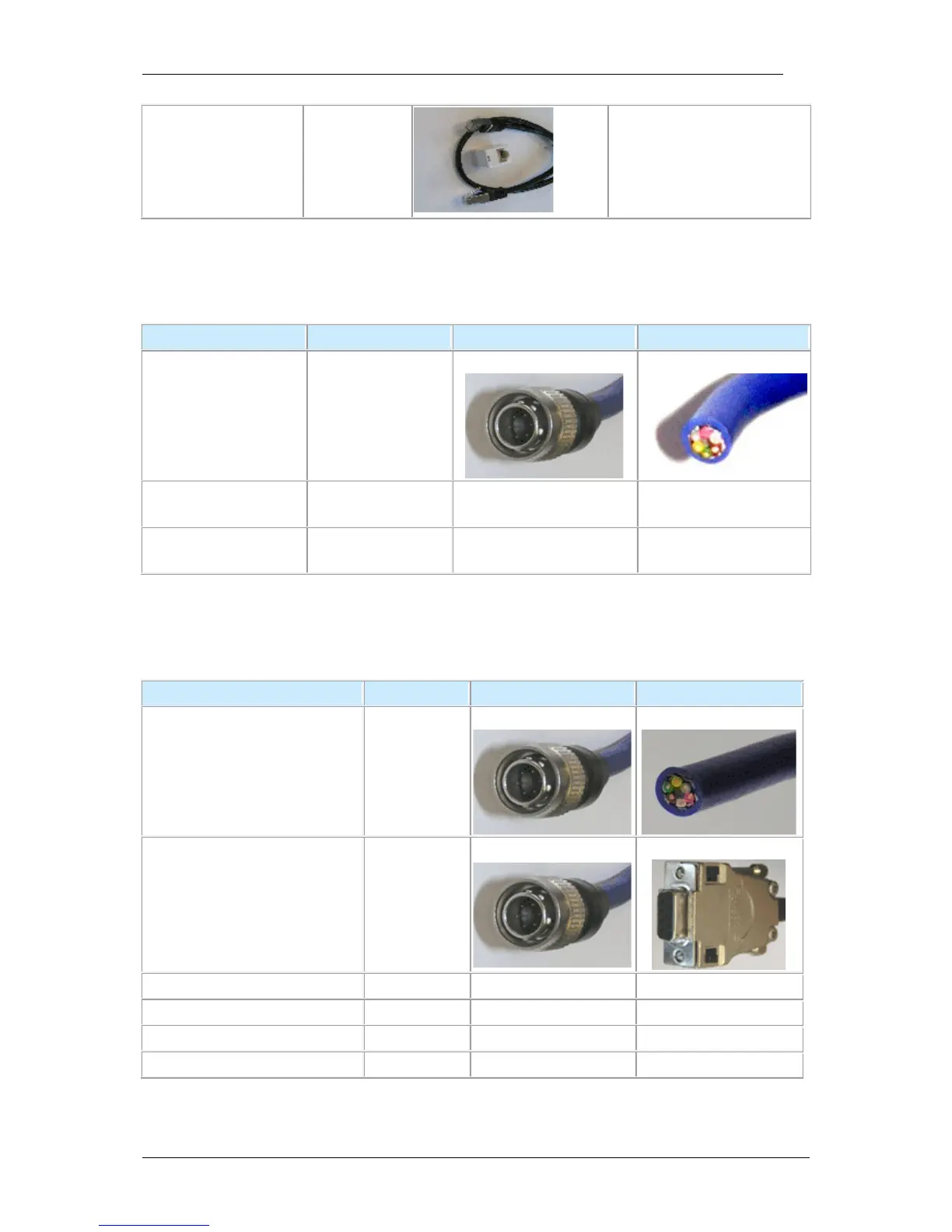

Ethernet Cross Module
VK000156
RJ45
RJ45 female socket
Trigger Cables (Refer to section 3.2.2):
Article Description
Order Number
Camera Connector
Second Connector
5m Trigger-Cable / C6 VK000115
HRS connector male 6 pin
without connector
10m Trigger-Cable / C6
VK000164
HRS connector male 6 pin
without connector
25m Trigger-Cable / C6
VK000153
HRS connector male 6 pin
without connector
V24 (RS232) Serial Cable (Refer to section 3.2.3):
Article Description
Order Number
Camera Connector
Second Connector
5m V24 cable VK000243
HRS male 6 pin
without connector
5m V24 cable with DSUB VK000244
HRS male 6 pin
D-SUB 9 pin female
10m V24 cable
VK000239
HRS male 6 pin
without connector
10m V24 cable with DSUB
VK000240
HRS male 6 pin
D-SUB 9 pin female
25m V24 cable
VK000241
HRS male 6 pin
without connector
25m V24 cable with DSUB
VK000242
HRS male 6 pin
D-SUB 9 pin female
