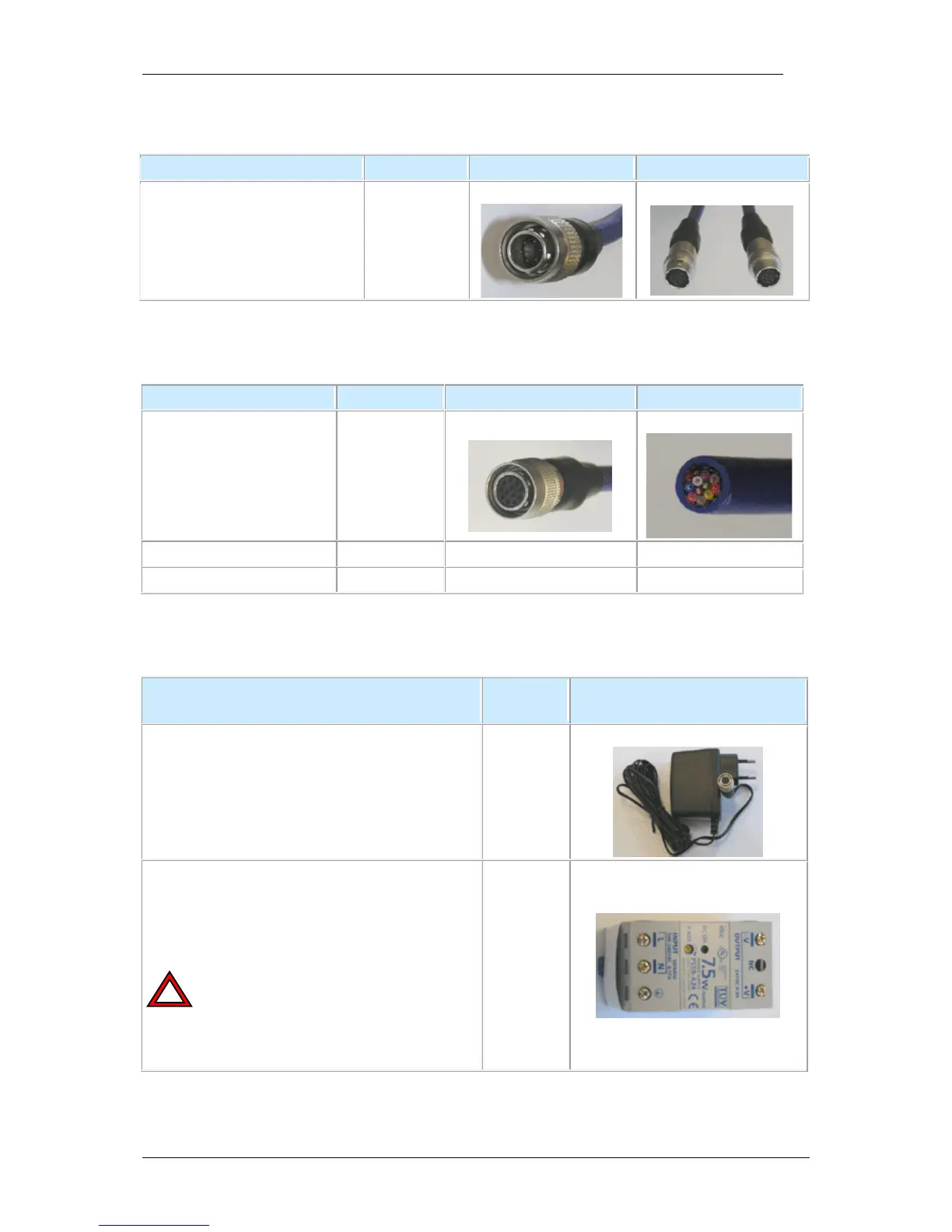

Y-Cable for connecting several cables to the Trigger / Serial Interface (Refer to section 3.2.4):
Article Description
Order Number
Camera Connector
Second Connector
0.5m Y adapter cable VK000124
HRS male 6 pin
2 HRS female 6 pin
Power Supply and IO Interface Cables (refer to section 6.3.5):
Article Description
Order Number
Camera Connector
Second Connector
5m Power / PLC-Cable C6 VK000008
HRS female 12 pin
without connector
10m Power / PLC-Cable C6
VK000114
HRS female 12 pin
without connector
25m Power / PLC-Cable C6
VK000161
HRS female 12 pin
without connector
Further Accessories:
Article Description
Order
Number
Camera Connector
Power Adapter C6 24V, with 12 pins conn. 3m VK000119
HRS connector female 12 pin
Power adapter for rail mounting, Input Voltage
100 - 240VAC 50/60 Hz, Output Voltage DC
24V +/-5%, max. 300 mA (7.5 W),
Equipped with connecting clamps for AC input
and 24V output, CE cert.
Using this power supply with VC Base
Cameras (VC4018 and VC4016) is only
possible when booting by switching the 24V
secondary side! 15W power supply needed
if switching the mains supply!
VK000036
!
