2.1 Scope of Delivery
Manual VN5610/VN5610A Version 2.0 11
2.1 Scope of Delivery
Contents The delivery includes:
> VN5610(A) Ethernet/CAN interface
> Vector Power Supply 12 V / 1.25 A (part number 05024)
> USB2.0 cable (part number 05011)
2.2 Introduction
About the
VN5610(A)
The VN5610(A) is a Vector network interface which supports the Ethernet physical
layer 10BASE-T, 100BASE-T1 (OPEN Alliance BroadR-Reach), 100BASE-TX and
1000BASE-T. 100BASE-T1 is a physical layer especially used in automotive elec-
tronics.

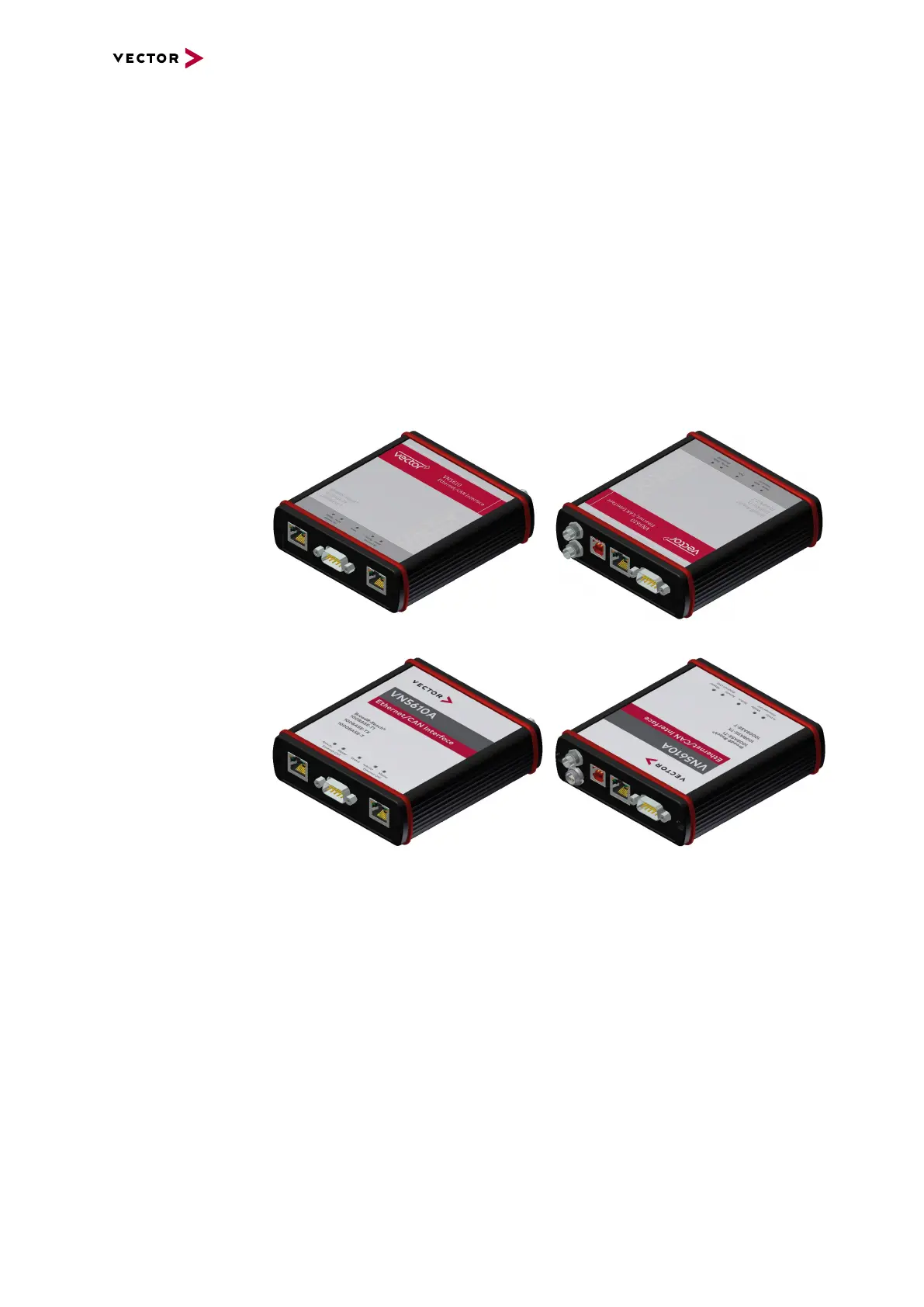

Figure 1: VN5610 Ethernet/CAN Interface
Figure 2: VN5610A Ethernet/CAN Interface
The VN5610(A) enables the transparent monitoring and logging of Ethernet data
streams and CAN events with minimal latency times and high resolution time stamps.
With this, the VN5610(A) enables a variety of applications such as simple bus ana-
lyses, complex remaining bus simulations as well as diagnostic and calibration (e.g.
with CANalyzer.Ethernet/CANoe.Ethernet).
Highlights Common features of VN5610 and VN5610A:
> Support of two independent Ethernet ports,
available as 2x RJ45 or 1x D-SUB9
> Support of standard Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
> Support of two independent CAN/CAN FD channels,
available as 1x D-SUB9
> High resolution time stamps for Ethernet frames
