2.4 Examples of Usage
Manual VN5610/VN5610A Version 2.0 13
2.4 Examples of Usage

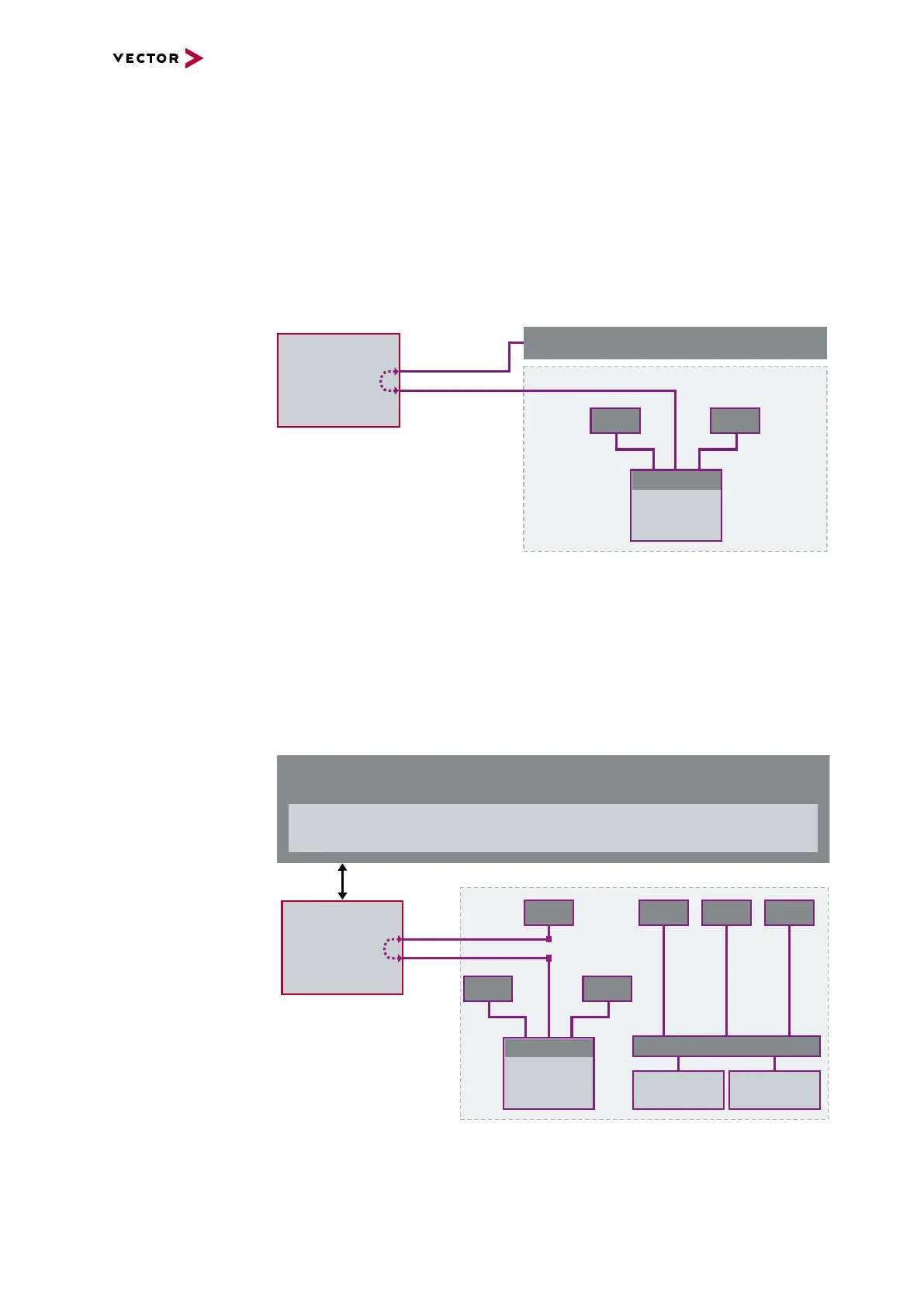

2.4.1 Standalone Media Converter
Physical layer
conversion
The Ethernet channels of the VN5610(A) can be configured independently. That way
the VN5610(A) can be used as a media converter between an ECU using the
100BASE-T1 physical layer and any standard Ethernet equipment (e.g. loggers)
using 100BASE-TX/1000BASE-T.
Setup
CH1
VN5610(A)
CH2
Media Converter
PC/Standard Ethernet Logger
100BASE-TX
100BASE-T1
SensorSensor
ECU
SWITCH
Figure 3: Media converter
2.4.2 Transparent Ethernet Monitoring
Monitoring The VN5610(A) can be used for Ethernet monitoring between an ECU and a con-
nected sensor without influencing the Ethernet bus (bypassing). In this particular
setup the VN5610(A) receives and forwards incoming data packages from one chan-
nel to the other.
Setup
ETH CH1
PC
USB
CANalyzer.Ethernet/CANoe.Ethernet
VN5610(A)
ETH CH2
Sensor
bypassing
Sensor
ECUECU
Sensor Sensor Sensor
SWITCH
Sensor
ECU
SWITCH
Figure 4: Bypassing Ethernet data
This allows applications such as CANalyzer.Ethernet or CANoe.Ethernet to trace Eth-
ernet data with accurate time stamps.
