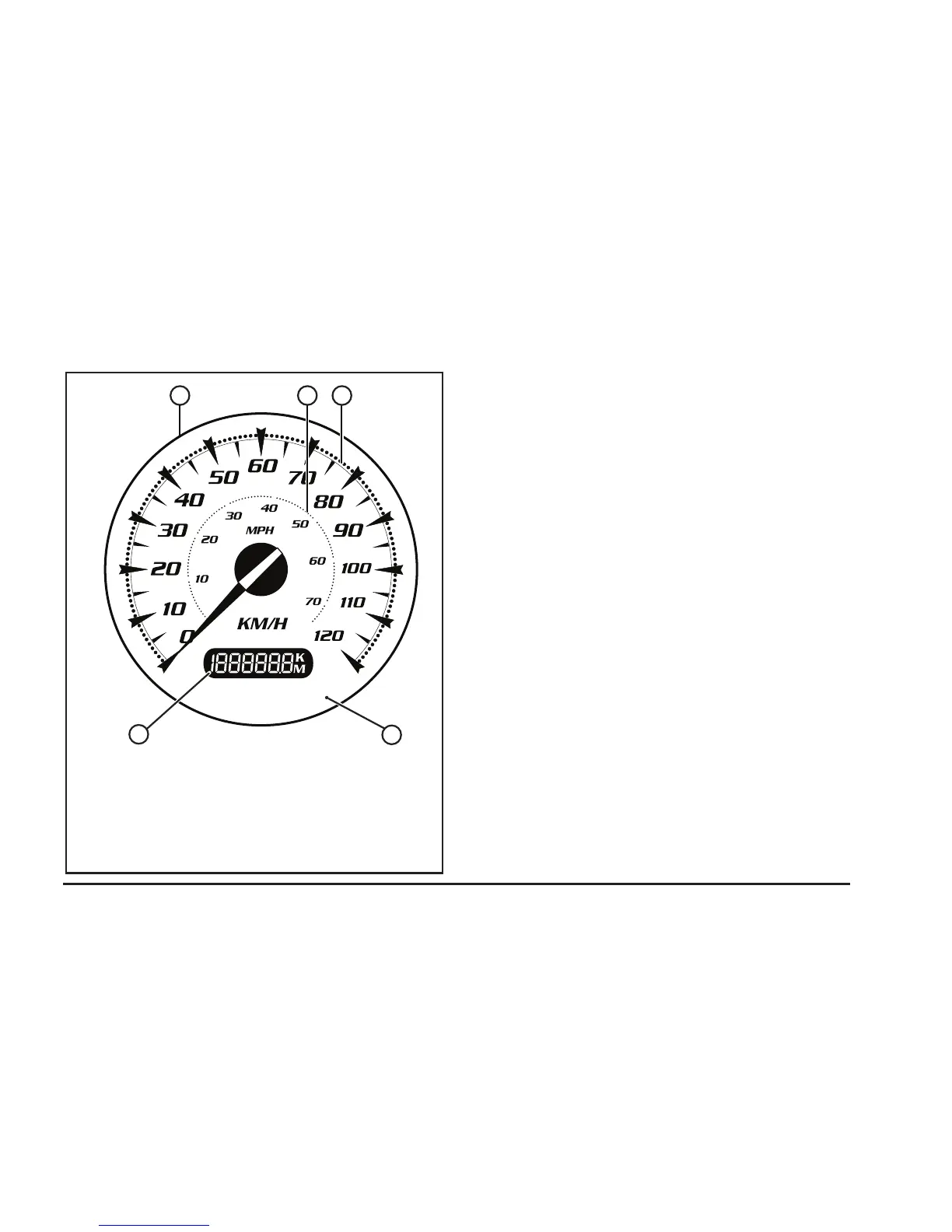

Center Instrument Cluster
A. Speedometer
B. MPH Indicator
C. KM/H Indicator
D. Odometer
E. Light Sensor
A
D
E
B
C
A. Speedometer
The speedometer displays your current speed.
During the charging process, the speedometer
indicates the charge current times 10. Example: If
the KM/H meter reading is 100 KM/H, the charge
current is 10 amps.
B. MPH Indicator
This indicator displays your current speed in miles
per hour.
C. KM/H Indicator
This indicator displays your current speed in
kilometers per hour.
D. Odometer
The odometer reading lets you see how many total
miles or kilometers you have traveled on your
scooter. During the charging process, the odometer
will indicate the charge mode and the charge
termination voltage. Charging modes are:
• CP - Constant Current
• CV - Constant Voltage
• EC - End of Charge
• DE - Delay Mode
See Battery Charging on page 4-7 for more
information. If the “Maintenance Required”
indicator (wrench) is illuminated this will display an
abbreviated fault code.
