5-3
5 Vac System Field Wiring - TLS-450PLUS Console Disable Extended Run Feature in the Pump Controller

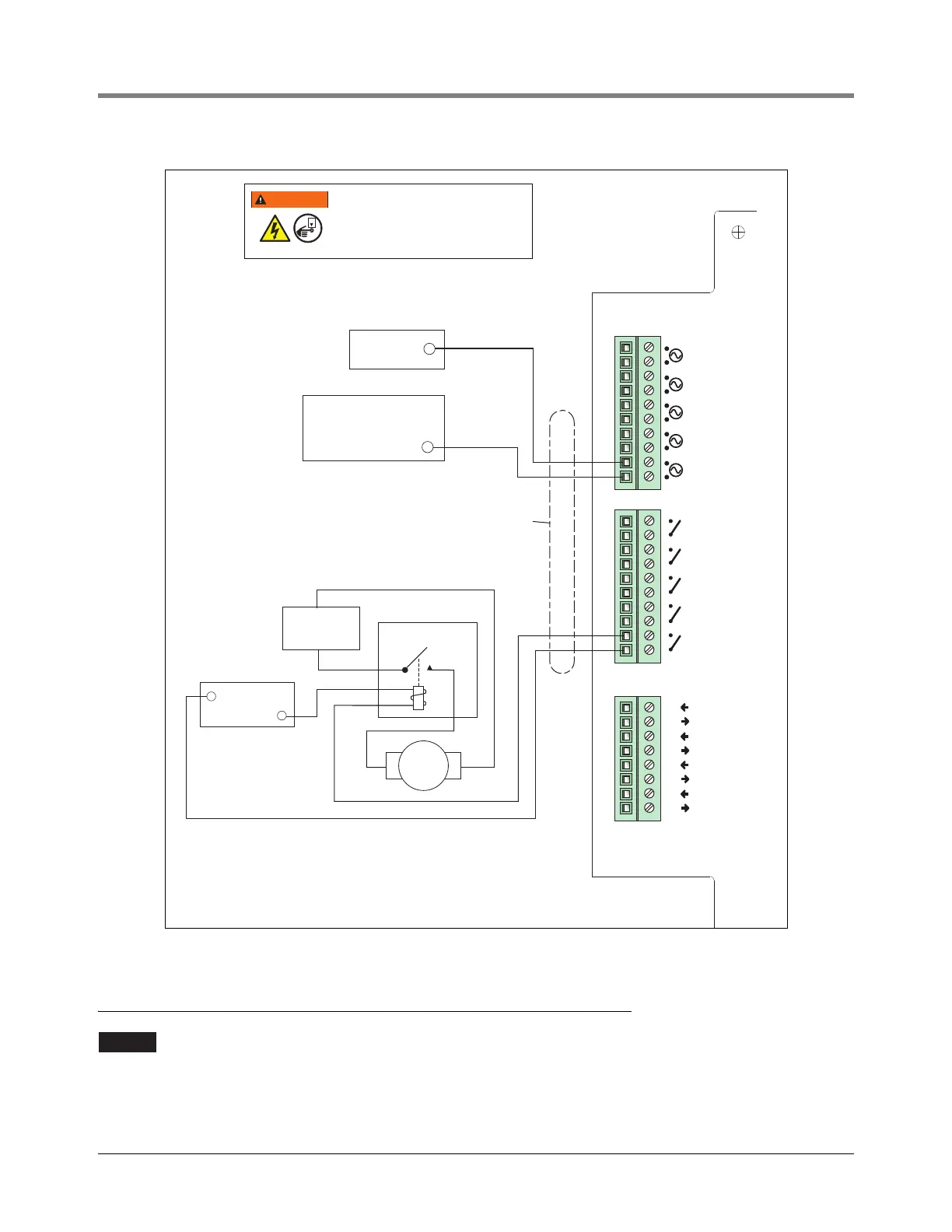

Figure 5-3.- Non-Red Jacket STP Control And Pump Sense Inputs
Disable Extended Run Feature in the Pump Controller
Certain pump controllers may be programmed to turn off the pump after an extended run
period and post an ER (Extended Run) error in the controller. Because the Vac Sensors may
require the pumps to run for several hours and possibly triggering this error, you must dis-
able this ER feature in the pump controller. Refer to the Pump Controller’s documentation
for instructions on how to disable the Extended Run feature.
WARNING
OFF
DISCONNECT, LOCK OUT, AND TAG POWER
TO THE STP/SELF SERV SYS./DISPENSER
AT THE POWER PANEL BEFORE CONNECTING
WIRING TO THIS EQUIPMENT.
WARNING
OFF
Rigid Conduit (enters Console
through a Power Bay knockout)
Self-Serve System
or Dispenser switched
hot 120 Vac
Power Panel
Power Panel
Pump Control
AC Neutral
110 Vac
AC Neutral
PUMP IN
Pump Contactor
STP
Motor
Pump Motor
Power
PUMP RETURN
RTN
12V
1
2
3
4
1
2
3
4
5
1
2
3
4
5
RTN
12V
RTN
12V
RTN
12V
Maximum AC
Input Ratings
120/240 Vac, 0.10 A
Maximum Relay Contact Ratings
120/240 Vac 5A, 30 Vdc 5A
Fuse Ratings 5A, 250 Vac Type T (Slo-Blo)
Maximum External Contact
Closure Circuit Ratings
12 Vdc, 0.015 A
To Next Page
