1 Introduction Product Marking Information
1-2
Product Label Contents
Failure to install this product in accordance with its instructions and warnings will result in
voiding of all warranties with this product.
CLASS I Division 1, Group D
CLASS 1, Zone 0
Hazardous Location
Intrinsically Safe Apparatus
I.S. Sensor
Connections
Intrinsically Safe
Wiring
White (+)
(+)
Black (-)
(-)
I.S.
Rigid Conduit

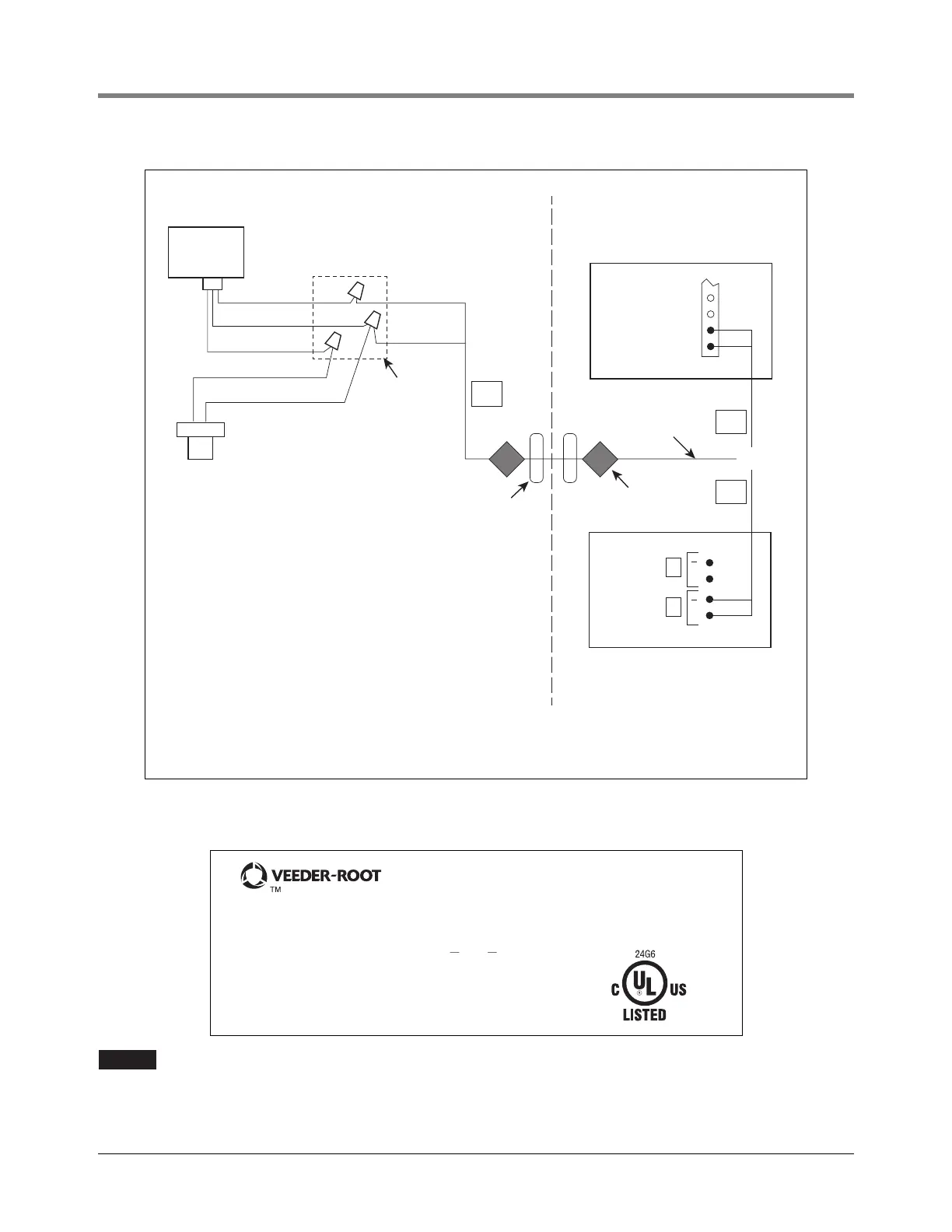

GENERAL PRODUCT WIRING DIAGRAM
Seal-Off
I.S.
I.S.
Weatherproof
Junction Box
Vac
Sensor
Vac Float or tank
interstitial sensor
Black
Black
White
Red
Red
Non-Hazardous Location
Associated Apparatus
8470/TLS-350;
8482/TLS-350R ATG Console
1
2
Non-Hazardous Location
Associated Apparatus
8600/TLS-450PLUS ATG Console
+
+
OR
I.S. CIRCUIT FOR HAZLOC SENSOR
F/N 857280-XXX
S/N XXXXXX
-40°C < Ta < +60°C
CL I, DIV. 1, GP.D
CL I, ZONE 0
AEx ia IIA
Ex ia IIA
TC=T4
MANUAL NO. 577013-836
SECURITE INTRINSEQUE
To Next Page
