Wiring/Miscellaneous For TLS-IB Consoles W/RS-232 & With & W/O IFSF) Connecting Power Wiring to TLS-IB
4-7

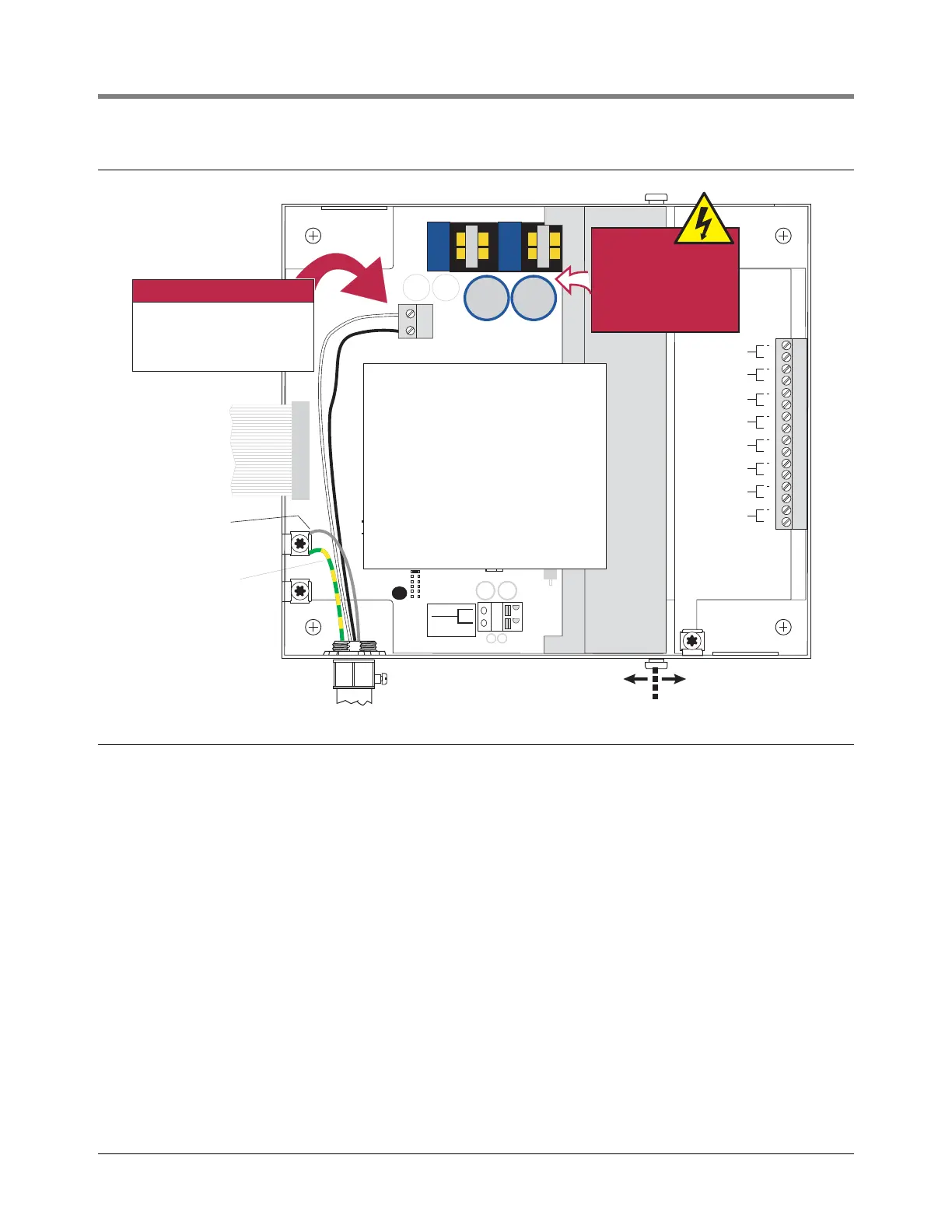

Figure 4-4. Wiring AC Power To The TLS-IB
+
PROBE 6
+
PROBE 5
+
PROBE 4
+
PROBE 3
+
PROBE 2
+
PROBE 1
WARNING
SUBSTITUTION OF COMPONENTS
MAY IMPAIR INTRINSIC SAFETY.
NO REPAIRS SHOULD BE ATTEMPTED.
REFER SERVICING TO QUALIFIED
PERSONNEL ONLY.
AVERTISSEMENT
LA SUBSTITUTION DE COMPOSANTS
PEUT COMPROMETTRE LA SECURITE
INTRINSEQUE.
+
PROBE 8
+
PROBE 7
J5
SGL DBL
B
A
WIRING SIDE
G
J4
D1
IFSF
JP3
J8
U8
J7
L1
S1
SERVICE
RAM
IB
POWER
esso\ibpowr.eps
Protective Earthing
Conductor (Green and
Yellow) Attach #12AWG
(4 mm
2
) barrier ground
wire to ground lug
Attach chassis ground
wire to ground lug
Power
Side
Intrinsically
Safe Side
IFSF
CLR
N
M
L
C
L
R
R12-001
331470
R12-002
R12-003
R12-004
R12-005
R12-006
N
L
Power Wiring
Connect neutral wire to upper
terminal of J5 (N). Connect
hot wire to lower terminal (L).
C26 C28
L2 L4
POWER WIRING NOTES:
1. Barrier ground must be #12 AWG (4 mm
2
cross-
sectional area) or larger diameter.
2. Check to be sure that the electrical resistance
between the console ground lug and a "known
good earth ground" is less than 1 ohm.
3. Connect the power supply wires in the power
panel to a separate dedicated circuit.
4. Electrical rating power input -- 120 Vac or
240 Vac, 50/60 Hz, 2 A maximum.
5. See the "Console Dimensions
and Designated
Conduit Knockouts" figure for actual locations of
power conduit knockouts into the console. Power
wiring must enter only in Power Area conduit
knockouts.
WARNING!
Shock hazard. Do not
touch metal ends of
capacitors C26/C28
or the metal bands
on chokes L2/L4.
