PPS10 Pocket Scope
TM
Power supply
The PPS10 Pocket scope can be powered by
means of an adapter, ordinary batteries or
rechargeable ones. Rechargeable batteries are
advised for intensive use. The greater the
capacity of the rechargeable batteries, the
greater the autonomy of the unit.
Rechargeable batteries of the 600mAh type
will yield approx. 6 hours of autonomy.
Attention:
⇒ Use a non-regulated adapter of 9VDC that
supplies a min. of 300mA. Observe the
polarity and consult your retailer if
necessary (Fig. 1 & 3)
⇒ When using a regulated adapter, the user
should verify whether it can supply 12VDC.
Batteries (option):
⇒ The unit can be used with either ordinary
alkaline batteries or rechargeable type
HR3C (5 x) (Fig. 4.0)
⇒ Open the battery cover by loosening the
screw.
POWER SUPPLY
Insert the batteries in the holders. Mind
the polarity !
Remove all non-rechargeable batteries
when connecting an AC/DC adapter !
9V DC
PC
interface

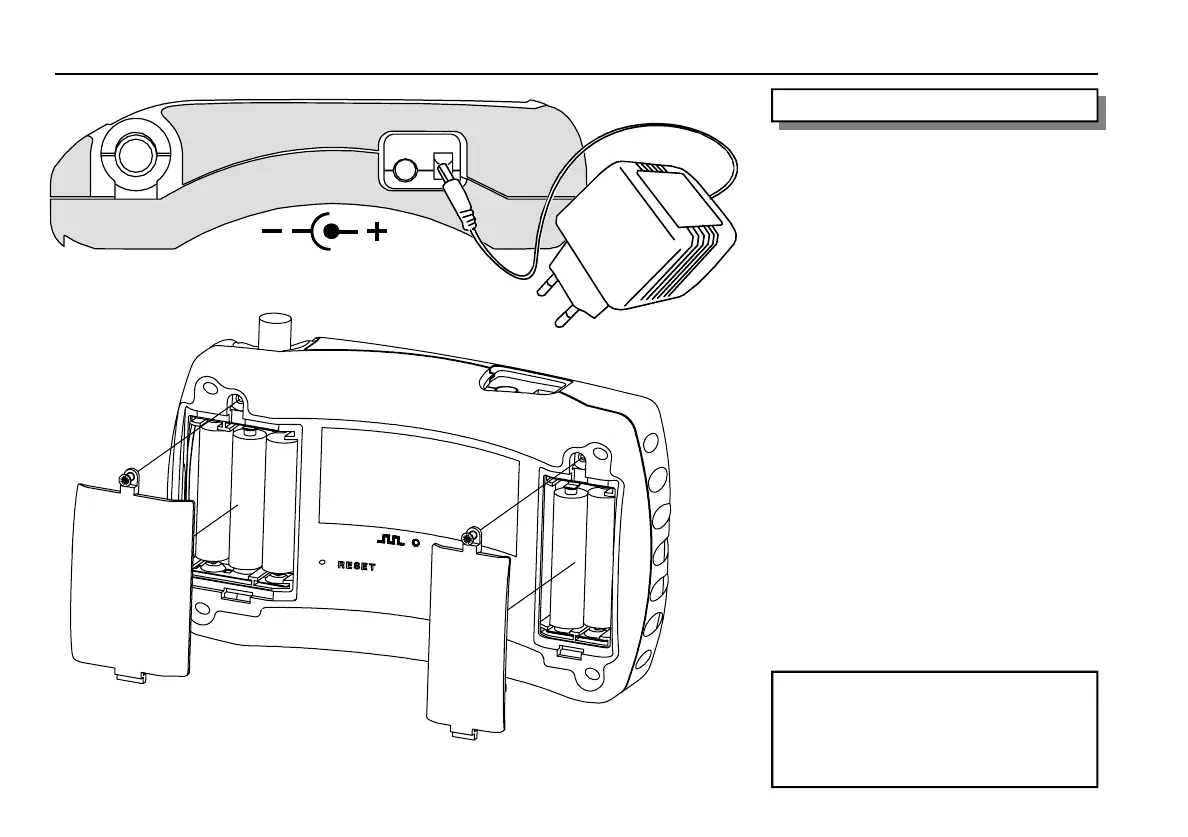

Fig 3.0
Fig 4.0
+
+
+
+
+ -
-
-
-
-
