PPS10 Pocket Scope
TM

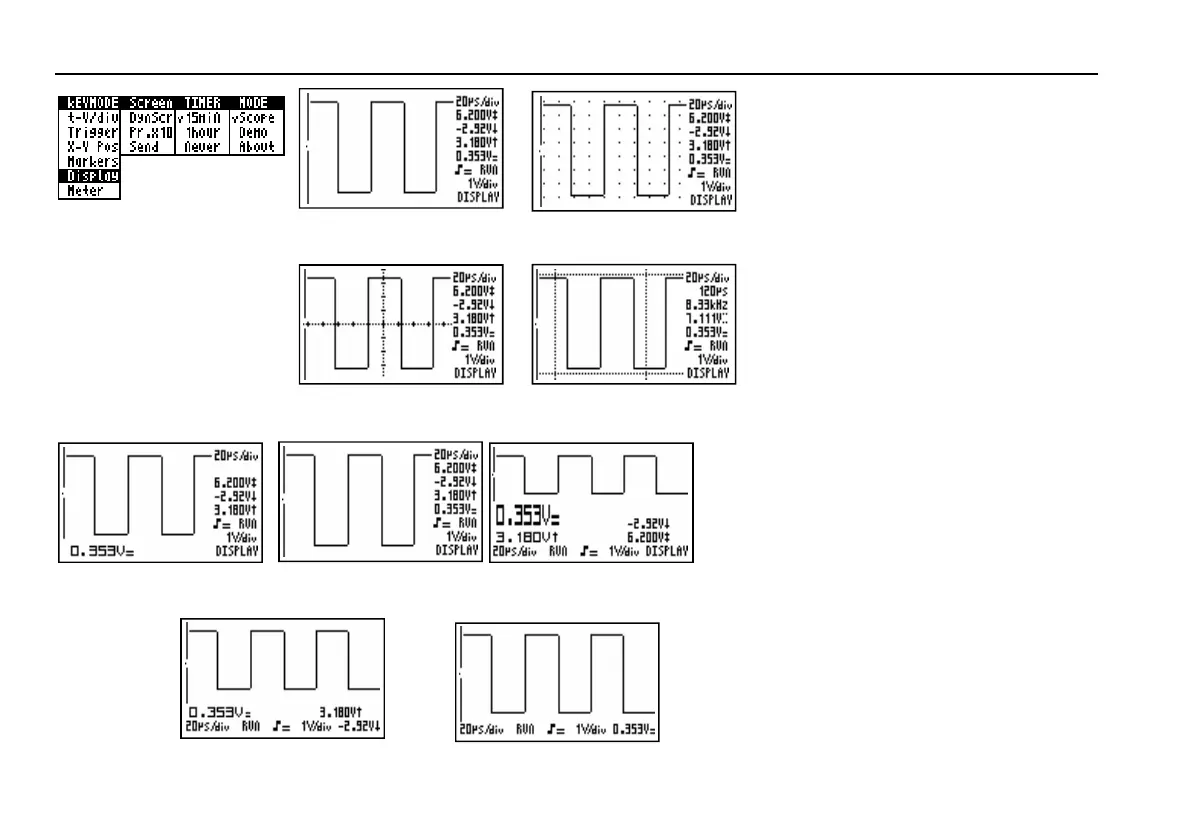

Display layout
Display layout
Press the MENU button to call the setup menu.
Use the joystick to select ‘Display’ under
‘KEYMODE’ and press the joystick (Fig. 18).
Push the joystick up and down to display a grid,
a crosshair or markers
• Normal : Fig.18
• Grid : Fig 19
• Crosshair: Fig. 20
• Markers : Fig.21
When moving the joystick to the left or right,
you can choose between 5 different screen lay-
outs (fig. 22 to 26).
After having chosen the screen layout, it can be
locked by pressing the joystick. The joystick
functions will be reset to the default time base
and sensitivity settings.
Fig 18
Fig 20
Fig 19
Fig 21
Fig 25
Fig 22 Fig 23
Fig 24
Fig 26
Fig 17
