14 WAC
The AC rms power is calculated on the cho-
sen load.
15 Wpeak
The peak power is calculated on the chosen
load.
16 WAC+DC
The AC+DC power is calculated on the
chosen load.
15 14 16
Remark:
•
If the signal goes off-screen or is too small
for dB measures, the readout will indicate
‘???’ (fig. 69).
• Make sure that at least one or two periods are
displayed for all AC measures.
• Hide the readout via ‘none’.
• Up to four readouts can be shown on the
display, depending on the chosen display
layout.
• Some readouts have more digits (precision)
when they are shown on the left side of the
display.
• With a time base of 1s/div or slower, only
the instant value (Vs) will be shown (fig. 70).

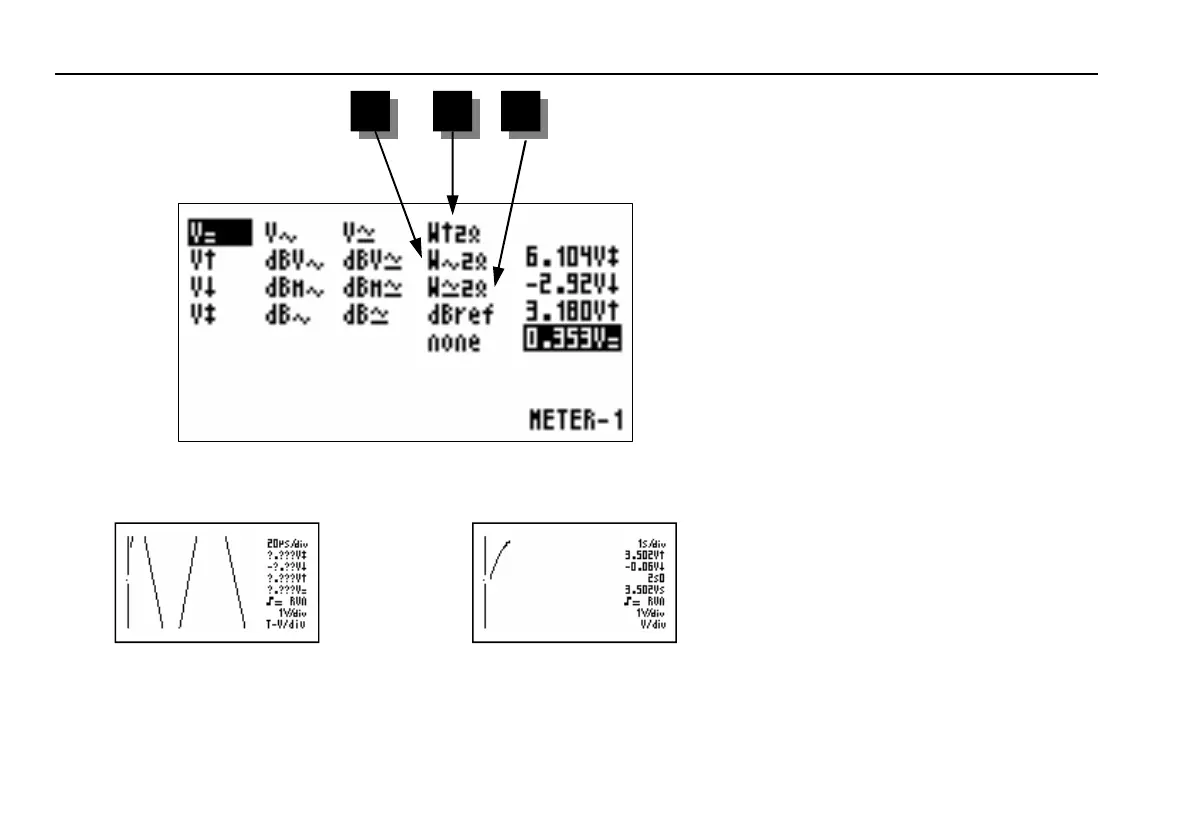

Fig 68
Fig 69 Fig 70
Readout setup
