6. CleaningROBOT HP7C / HP10C / HP15C / HP17C
6-1© VEMAG 2004
6. Cleaning
6.1 General information
The machine and any attachments and additional devices (optional) must
be cleaned daily.
Danger!
To prevent injury, take the following measures before cleaning.
• Press the OFF key on the machine control panel.
• Switch off the main switch of the machine to disconnect it from the
mains.
• Disconnect any attachments or additional devices (optional) from the
mains and remove the devices.
Attachment operating instructions
Danger!
The linking gear can heat up at extremely high speeds (risk of burns). To
prevent injury, proceed extremely carefully when fitting and dismantling
the part.
6.2 Removing parts to be cleaned
6.2.1 Filling horn and filling horn holder
• Undo filling horn nut (1) and remove filling horn (2). To do so, use
universal spanner (3).
• Undo the locking nut with the handle anticlockwise until the bayonet
lugs come free and remove the filling horn holder.
3
1
2
1 Filling horn nut
2 Filling horn
3 Universal spanner

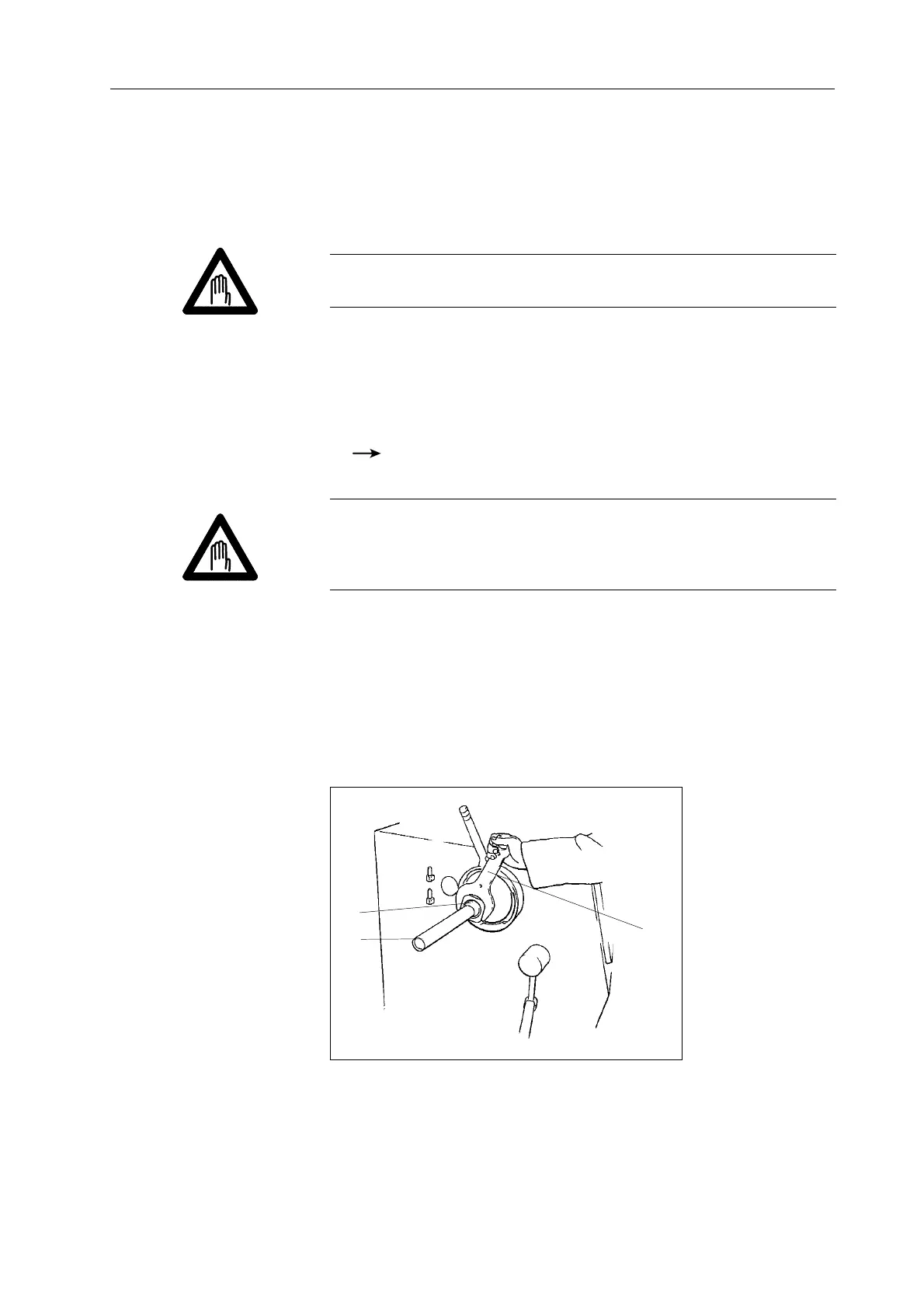

Fig. 6-1
Removing filling horn
