9. Appendix
9-3
ROBOT HP7C / HP10C / HP15C / HP17C
© VEMAG 2004

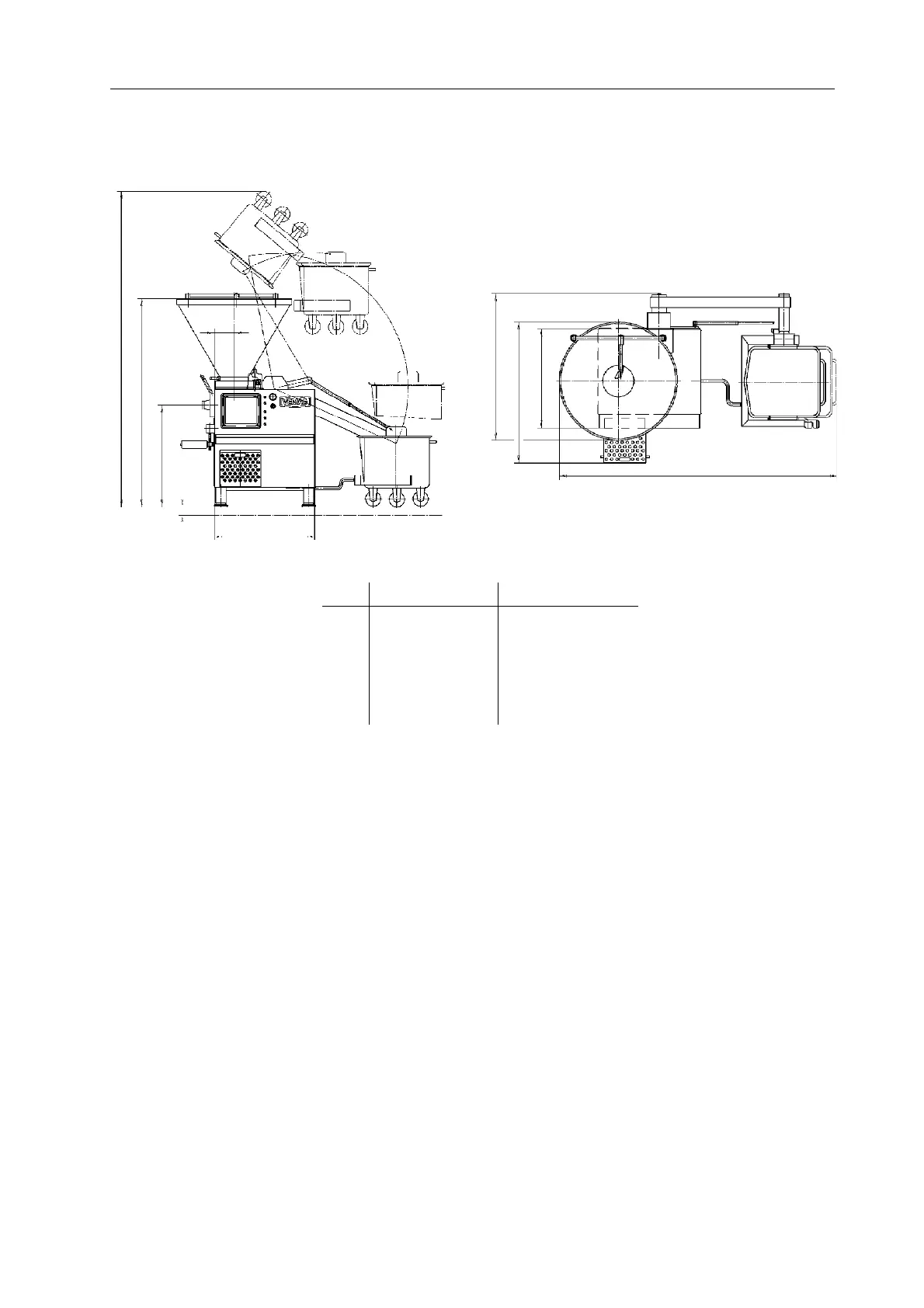

9.3 ROBOT HP7C / HP10C / HP15C / HP17C dimensional drawings
250 l hopper350 l hopper
A 2505 2665
B 1340 1400
C 1935 2040
D min. 2940 min. 3040
max. 2995 max. 3090
980
191
C
D
1000
+80
~940
B
1349
max. A
