Venmar HRV CONSTRUCTO 2.0ES User Manual

12
For the Installer

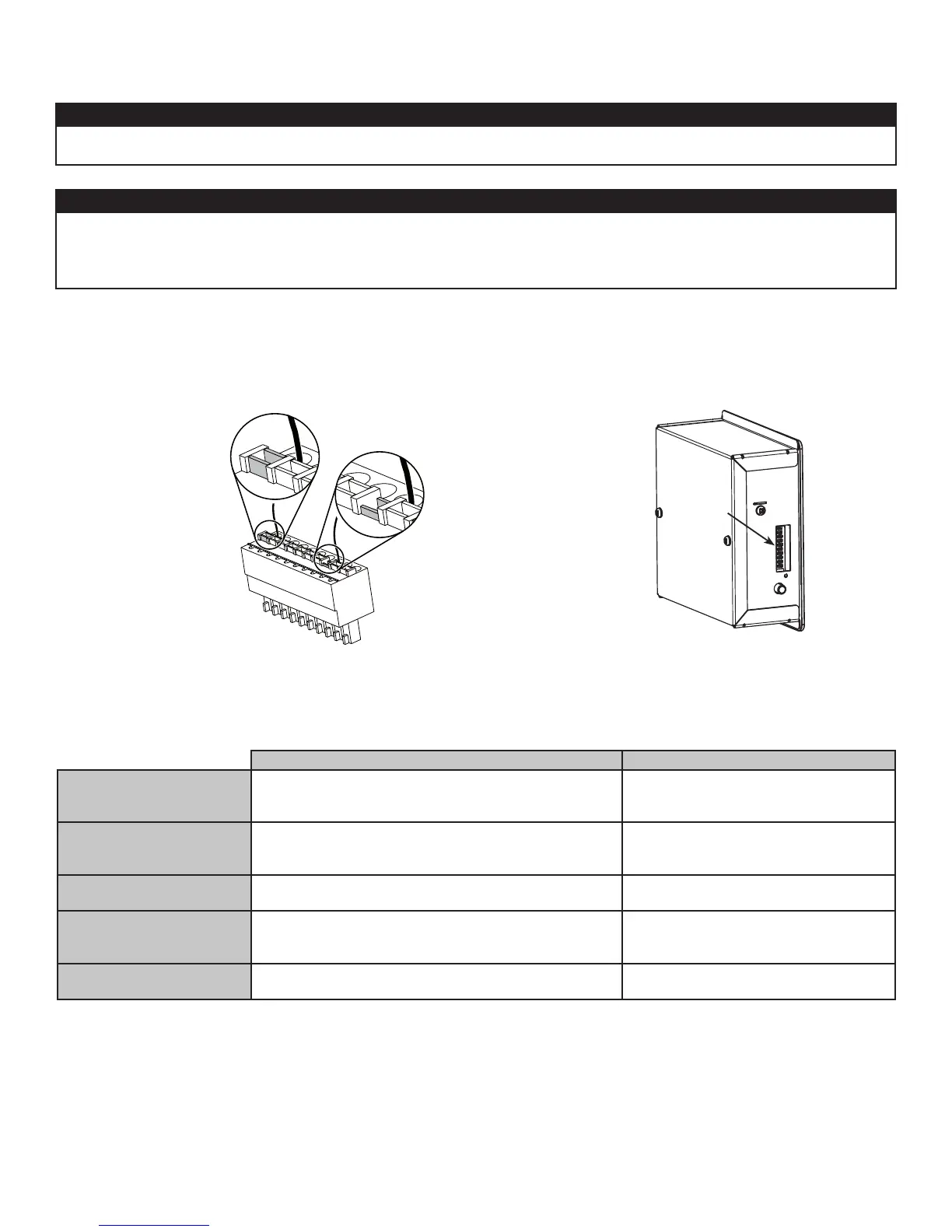

7.2 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROL
• Use the terminal connector included in the installation kit to perform the
electrical connection for main and optional wall controls.
• Make sure all wires are correctly inserted in their corresponding holes in
the terminal block. A wire is correctly inserted when its orange receptacle
is lower than another one without wire. On picture below, wire A is correctly
inserted, but wire B is not.
• Once the wall control(s) connections have
been made, insert the terminal connector in the
electrical compartment.
• If an optional main control is being installed, make
sure that the unit is set to OFF using the integrated
push-button.
VD0278
TERMINAL
CONNECTOR
VE0272
A
B
Use the chart below to verify compatibility with the optional controls before making any connection.
Main Controls Auxiliary Controls
HRV CONSTRUCTO 1.5ES
HRV CONSTRUCTO 2.0ES
• Deco-Touch
• Lite-Touch Constructo
• Constructo
• Dehumidistat
• 20-minute lighted push button
• 60-minute crank timer
HRV SOLO 1.5ES
HRV SOLO 2.0ES
• Altitude
• Deco-Touch
• Lite-Touch Constructo
• Simple Touch Constructo
• Constructo
• Dehumidistat
• 20/40/60-minute push-button timer
• 60-minute crank timer
HRV NOVOFIT 1.5ES
HRV NOVOFIT 2.0ES
• Altitude
• Deco-Touch
• 20/40/60-minute push-button timer
• 60-minute crank timer
100H
200H
• Deco-Touch
• Lite-Touch Bronze
• Bronze
• Dehumidistat
• 20-minute lighted push button
• 60-minute crank timer
NOVO+ 100H
NOVO+ 200H
• Platinum
• Deco-Touch
• 20/40/60-minute push-button timer
• 60-minute crank timer
⚠WARNING
Always disconnect the unit before making any connections. Failure in disconnecting power could result in electrical
shock or damage of the wall control or electronic module inside the unit.
CAUTION
Never install more than one optional main wall control per unit. Make sure that the wires do not short-circuit
between themselves or by touching any other components on the wall control. Avoid poor wiring connections. To
reduce electrical interference (noise) potential, do not run wall control wiring next to control contactors or near
light dimming circuits, electrical motors, dwelling/building power or lighting wiring, or power distribution panel.
