7
For the Installer

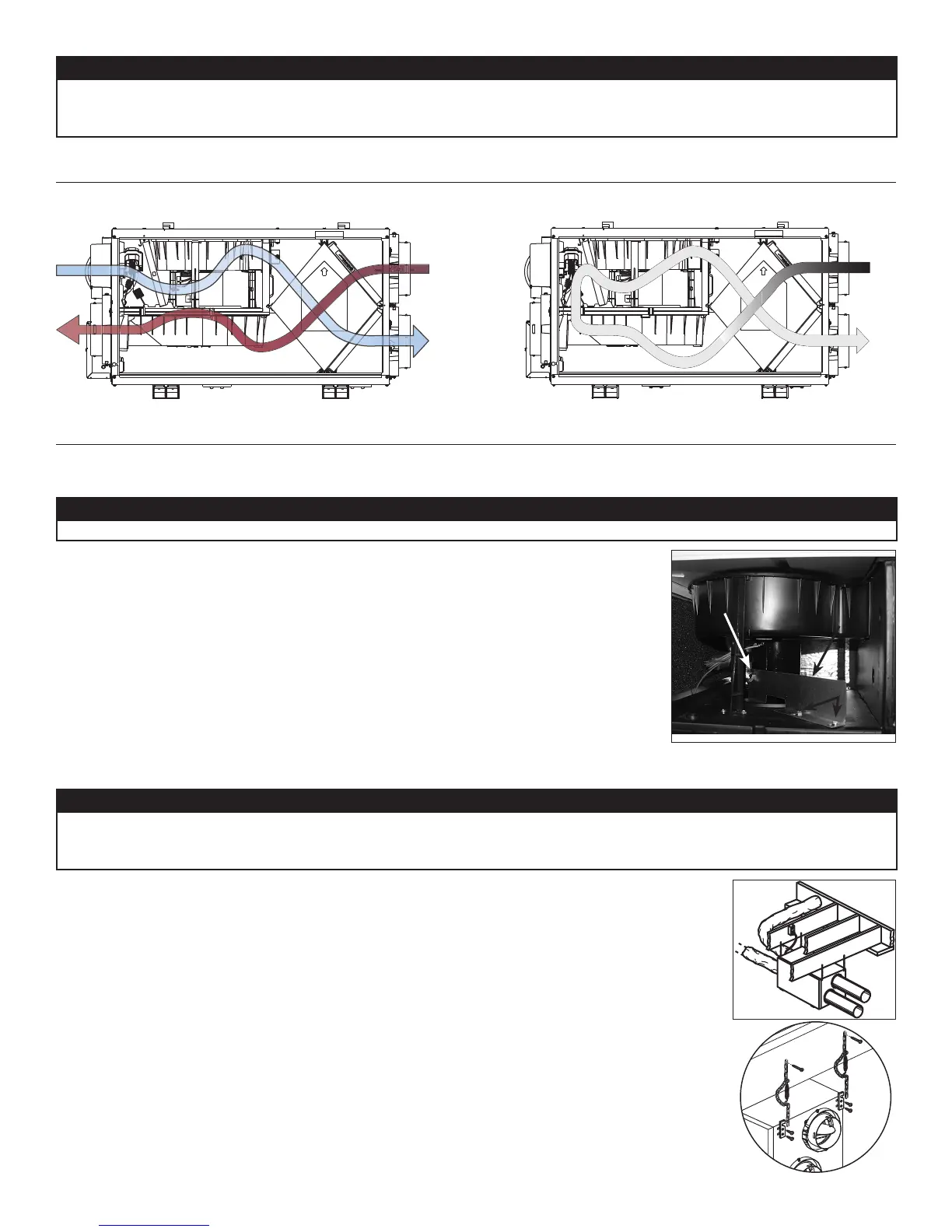

5. AIR DISTRIBUTION
NORMAL OPERATION DEFROST MODE
VF0053
6. INSTALLATION
6.1 PREPARING THE UNIT
Inspect the exterior of the unit for shipping damage. Make sure that there is no damage to the door,
ports, power cord, etc.
Before installing the unit, remove the shipping bracket by unscrewing its wing nut and loosening both
retaining screws.
VD0283
SHIPPING BRACKET
RETAINING SCREWS
WING NUT
6.2 LOCATING THE UNIT
Choose an appropriate location for the unit:
• Within an area of the house where the ambient temperature is kept between 10°C (50°F) and 40°C
(104°F)
• Away from living areas (dining room, living room, bedroom), if possible
• So as to provide easy access to the interior cabinet for quarterly and annual maintenance, and to the
control panel on the side of the unit
• Close to an exterior wall, so as to limit the length of the insulated flexible duct to and from the unit
• Close to a drain. If no drain is close by, use a pail to collect run-off
• Away from hot chimneys, electrical panel and other fire hazards
• Allow for a power source (standard outlet)
Hang the unit with the 4 chains and springs provided (see illustrations at right).
VD0037
VD0279
⚠WARNING
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
CAUTION
HRV Solo 1.5ES and HRV Solo 2.0ES units can be installed in normal or reverse postion (upside down). When
installed in reverse position in a cold region where outdoor temperature could drop below -20C (-4F) for more
than 5 days in a row, these units must always be set in extended defrost. See Section 7.1 Setting Extended Defrost.
CAUTION
• Before installing this unit, please take the time to carefully read page 2 of this guide to ensure it is installed
safely and properly.
• For Novoclimat compliant installation requirements, please refer to the current Novoclimat Program criterias.
