Sample Wiring Diagrams
Gas or Electric Heat

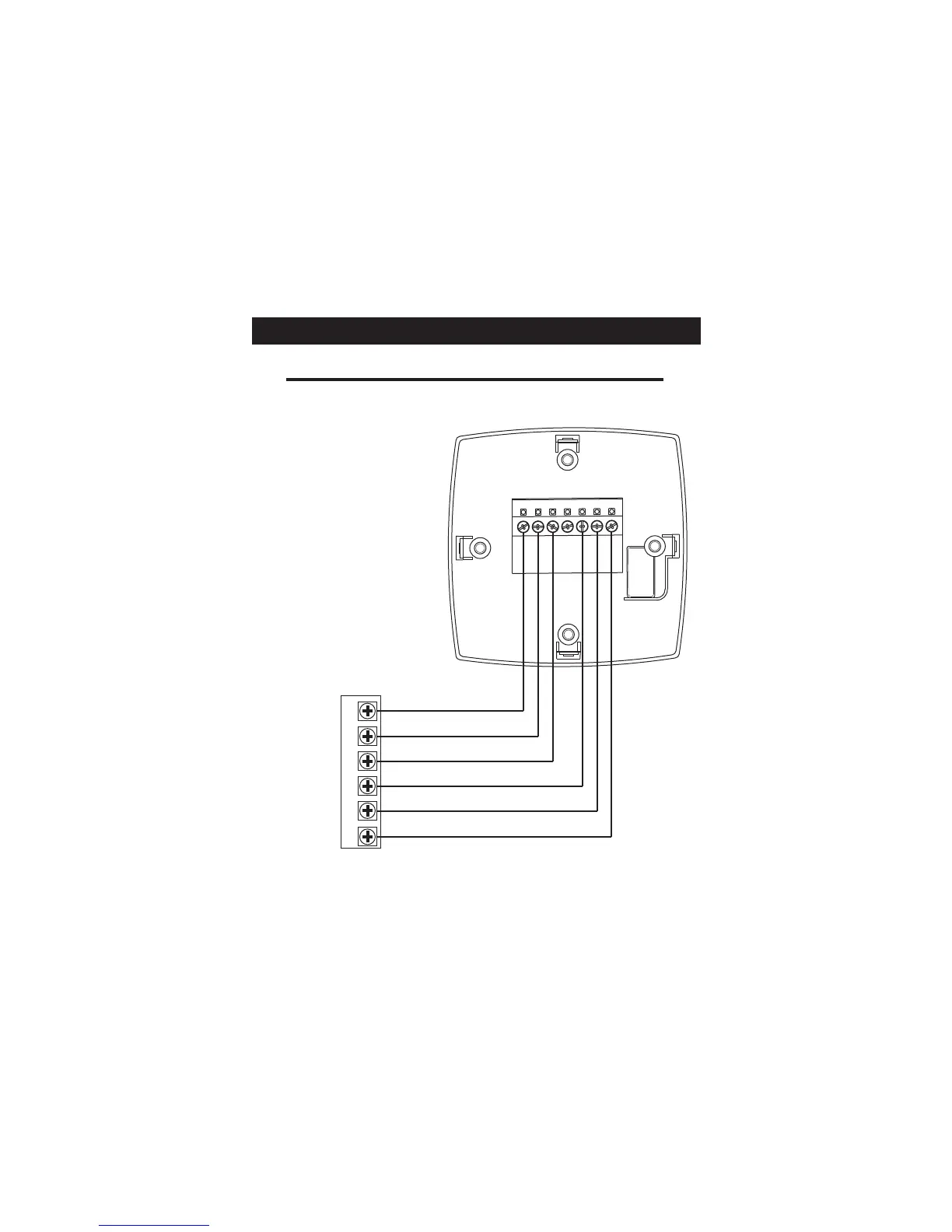

6 Wire, 2 Stage Cooling, 1 Stage Gas Heat
Residential two stage cooling with
Gas or Electric Heat*.
C
G
R
Y
1
W2
W
1
Y2
O
B
* If using first stage electric heat, this option must be
selected ON (see page 11, step #6 of Owner’s Manual).
POWER
R
COMPRESSOR
Y
2nd STAGE
COOLING
Y2
COMMON
C
FAN
G
W
GAS VALVE
or
STRIP HEAT
Page 7
