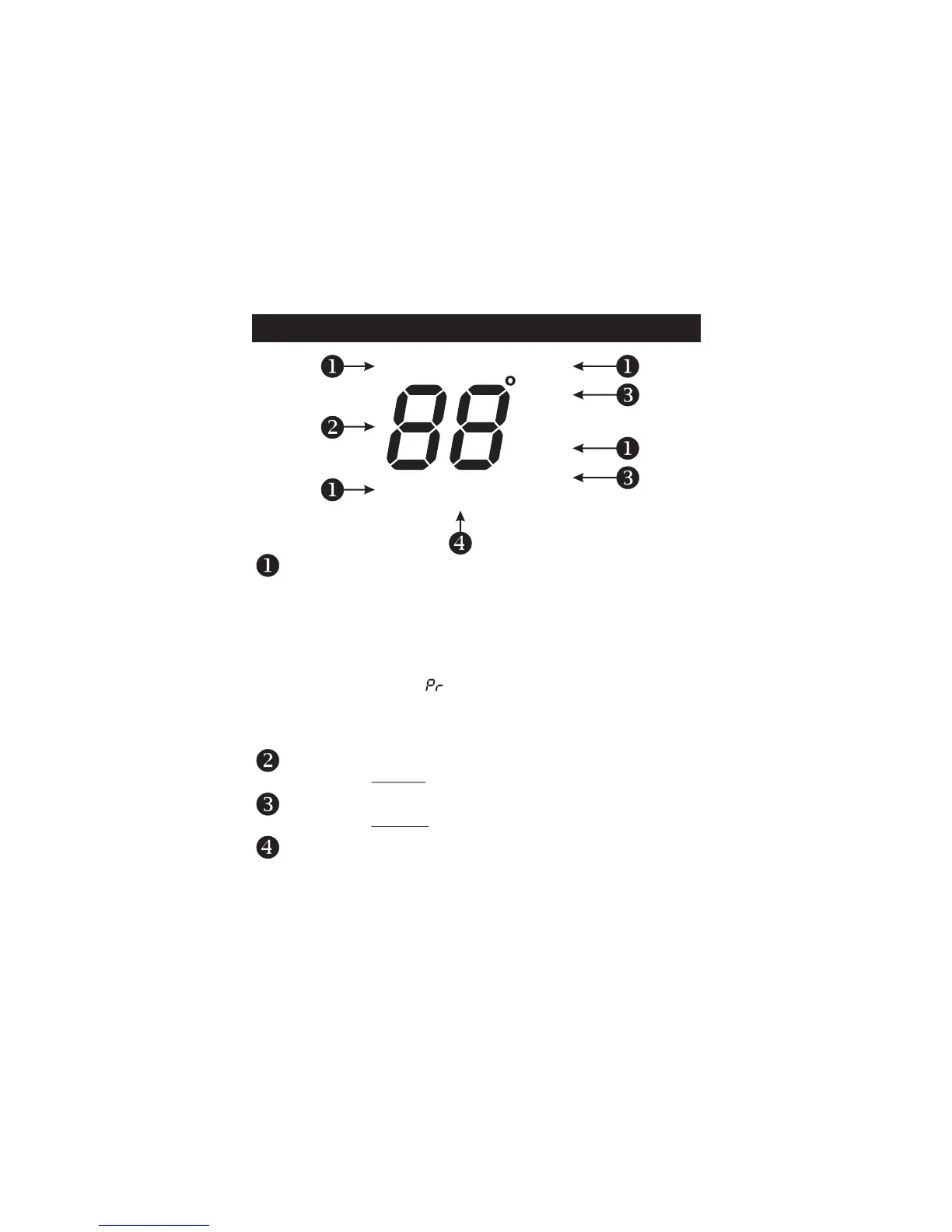

Mode Indicators - Page 5
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
AUTO - Indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
AUTO (Program) - When program mode is entered
the letters ( ) appear for two seconds and
the Auto icon blinks continuously to indicate
the time period program is enabled to run.
OFF - Indicates heating and cooling are turned off.
Room Temperature Display
Indicates current room temperature.
Desired Set Temperature - Page 6
Indicates desired room temperature(s).
Fan On icon - Page 6
Indicates constant, continuous fan operation.
When Fan On is not lit - indicates the fan will only
operate when necessary to heat or to cool.
Display
Fan On
AUTO
OFF
COOL
88
HEAT
88
