1.3 Hardware Description

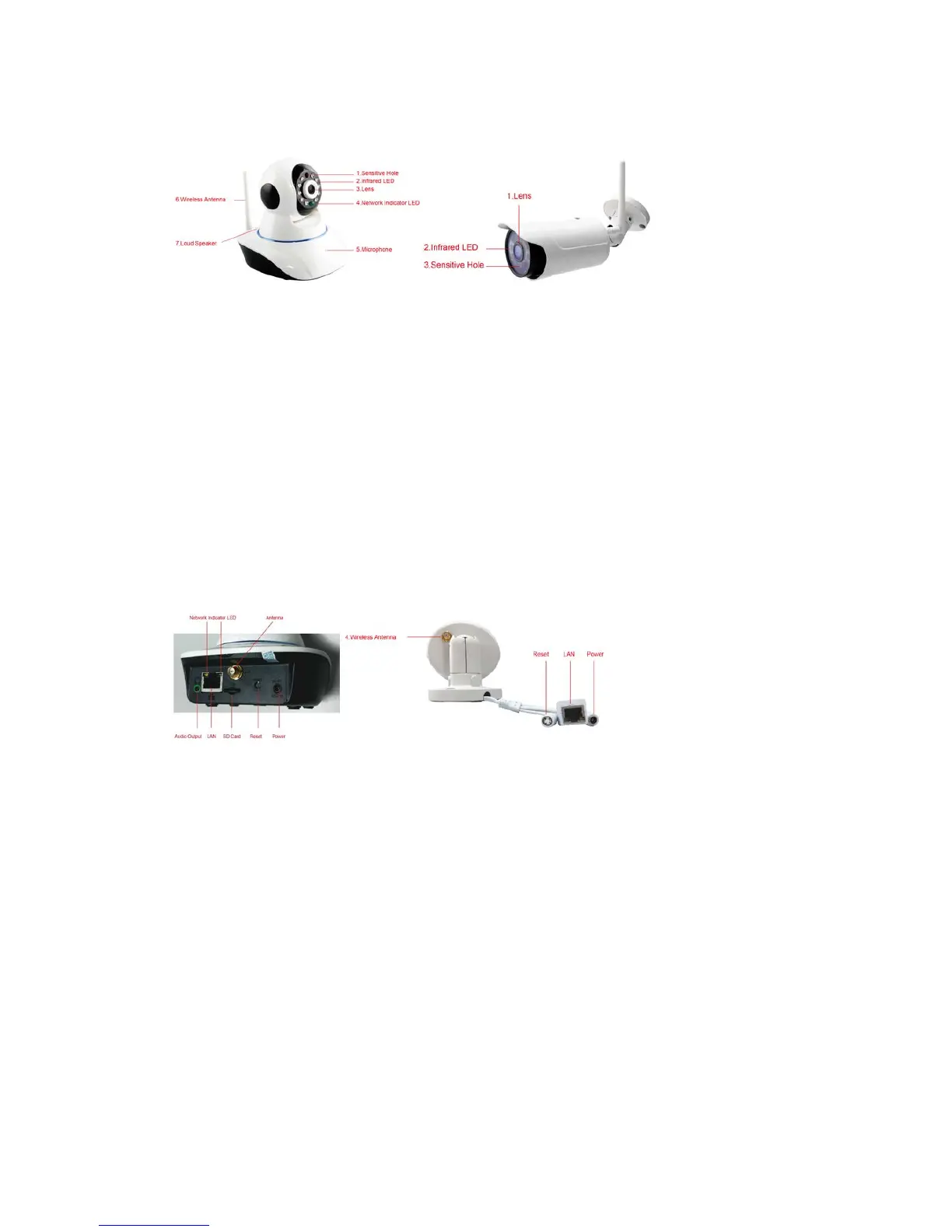

Front View
Figure 1.1
Indoor Camera
1.Sensitive Hole:For light sensitive
2. Infrared LED:10 LEDs
3.LENS:CMOS sensor with fixed focus lens. (Default is 3.6mm, 6mm optional)
4. Network Indicator LED:If there is network activity, the LED will blink
5. Microphone:Build-in microphone
6. Speaker:Build-in speaker
7. Wireless Antenna:WI-FI Antenna
Outdoor Camera:
1. Lens:Default is 3.6mm
2.Infrared LED:4 LEDs
3.Sensitive Hole
Rear Panel
Figure 1.2
LAN:RJ-45/10-100 base T
Power:DC 5V/2A power supply
Network Light:The green LED will on when connect to the network, the yellow LED will blink when data transferred
Audio Output:The jack is used to plug external speaker
To Next Page
