C18 Rear Panel

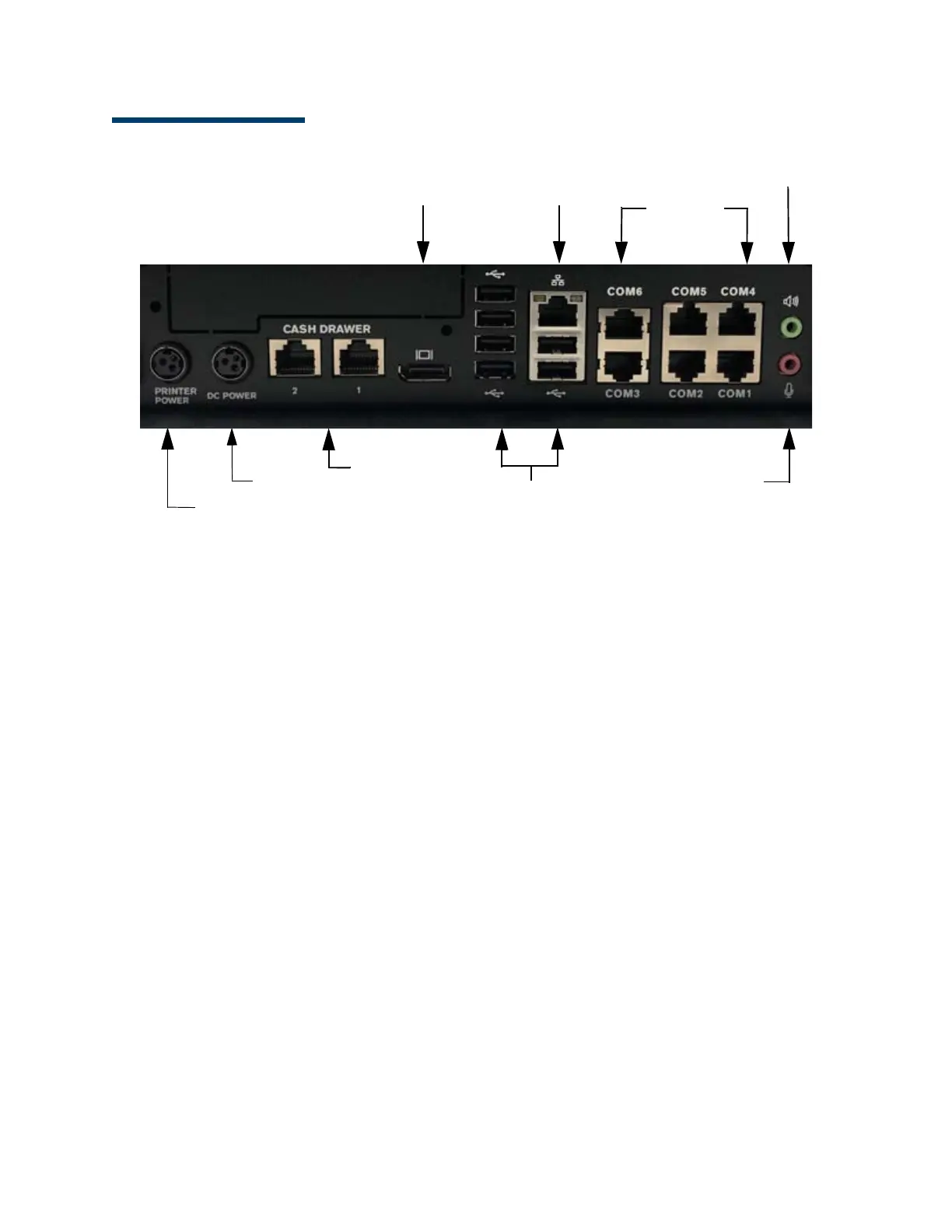

The rear panel of the C18 workstation has the following connections:
• Printer Power
•DC Power
• 2 Cash Drawer Ports (Solenoid)
• 1 Display Port
•6 USB Ports
• 1 Ethernet Port
•6 Serial Ports
– COM1 - not assigned
– COM2 - not assigned
– COM3 - not assigned
–COM4 - Printer
– COM5 - not assigned
– COM6 - not assigned
•1 Line Out Audio Jack
• 1 Microphone Audio Jack
Ethernet
USB (6)
Printer Power
Line Out Audio
DC Power
Cash
Drawers (2)
Microphone (in)
COM Ports
Display Port
