16
2. Remove the Mylar covering or rubber plug from the RJ9 Port on the front of the C18
base.
3. Connect the RJ9 Cable to the RJ9 Port on the Keyboard and to the RJ9 on the C18
base.
4. The Keyboard attaches to the Keyboard Plate using a magnetic connection.

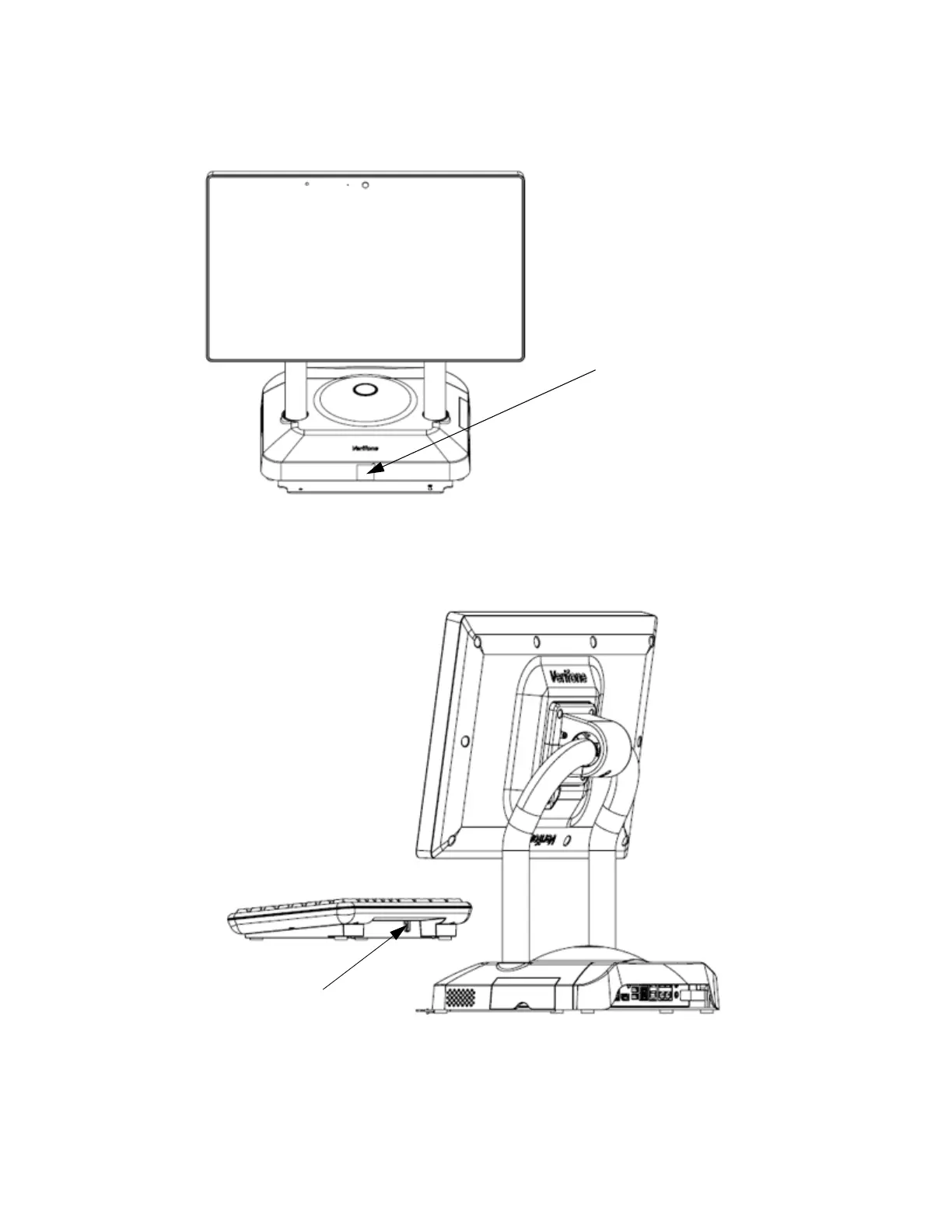

RJ9 Port
Keyboard RJ9
Port
