VeriFone VX 520 Installation Guide

TERMINAL SETUP
VX 520 Setup
18 VX 520 INSTALLATION GUIDE
Examining Terminal
Features
Before you continue the installation process, notice the features of the VX 520
terminal (see Figure 3).

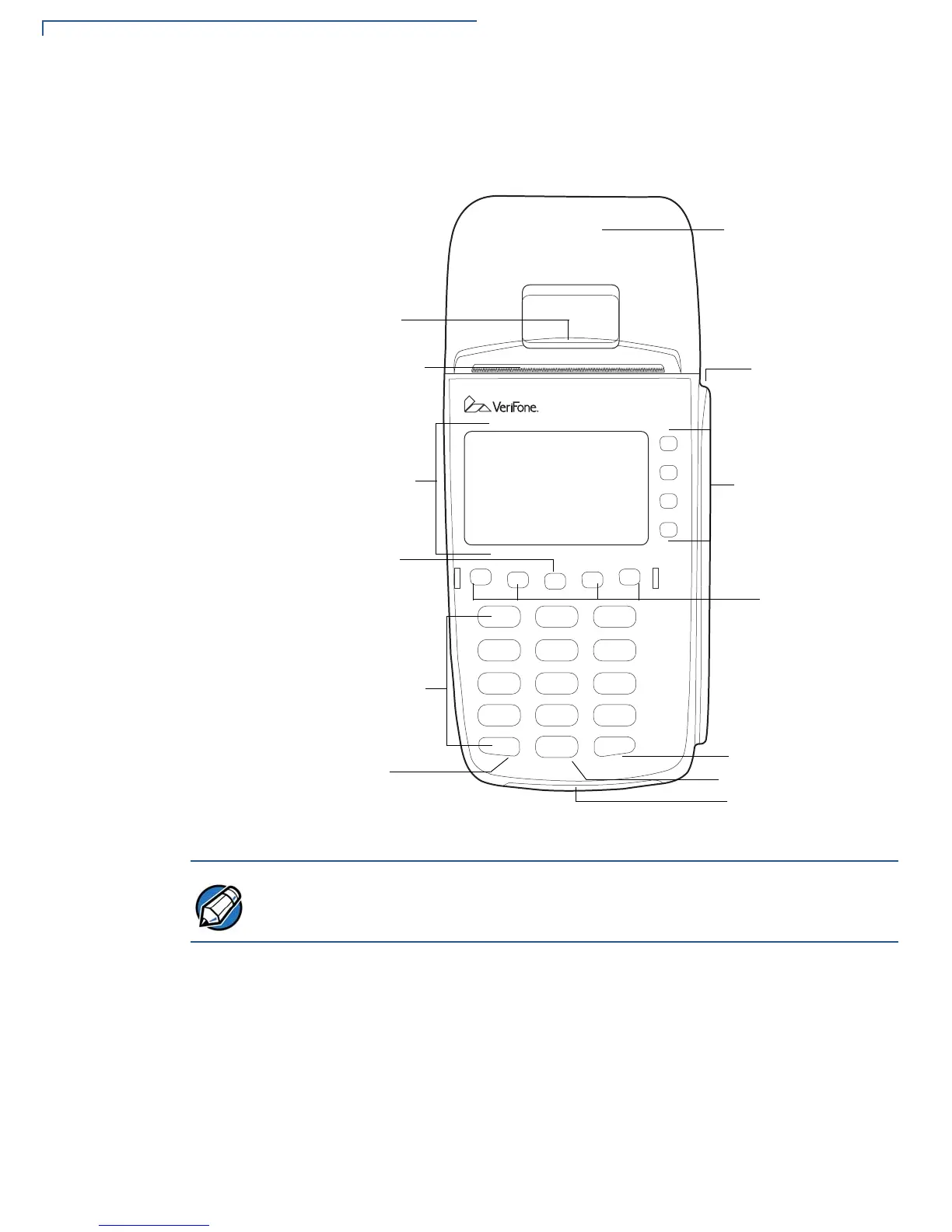

Figure 3 VX 520 Terminal Features (Front Panel)
Front Panel
The front panel includes the following features:
• A terminal display, backlit LCD screen.
• Five types of keys:
a A backlit 12-key, telephone-style keypad.
b Four ATM-style function keys, labeled F1 to F4, to the right of the LCD
screen.
INTERNAL THERMAL
PRINTER
ATM-STYLE
TERMINAL DISPLAY
MAGNETIC
PROGRAMMABLE
ALPHA KEY
TELEPHONE-STYLE
ENTER KEY
SMART CARD READER
FUNCTION KEYS
KEYPAD
CANCEL KEY
BACKSPACE/CLEAR KEY
SERRATED METAL
STRIP
FUNCTION KEYS
CARD READER
PRINTER DOOR
LATCH
NOTE
VeriFone ships variants of the VX 520 terminals for different markets. Your
terminal may have a different configuration from the features described in this
section.

VeriFone VX 520 Specifications

General

Processor	400 MHz ARM11
Card Readers	Magnetic stripe, EMV chip
Operating Temperature	0°C to 50°C (32°F to 122°F)
Display	128x64 pixel backlit LCD
Connectivity	Dial-up, Ethernet
Contactless	Optional
Printer	18 lines per second
Security	PCI PTS 3.0 approved
Weight	500g
Dimensions	203 mm x 87 mm x 77 mm (8.0 in x 3.4 in x 3.0 in)
