VERITAS NetBackup 5240 Appliance Product Description

Table 1-4
NetBackup 5240 Appliance control panel LED descriptions
(continued)
DescriptionComponentLabel
The System Status LED is bi-color indicator that
uses the colors green and amber to display the
current health of the appliance.
Two locations are provided for you to monitor the
health of the system. You can find the first location
on the front control panel, while the second location
is located on the back edge of the server board. It
is viewable from the rear of the appliance. Both
LEDs show the same state of health.
See “System Status LED states” on page 14.
System Status LEDE
The Power/Sleep button toggles the system on
and off.
See “Power button LED states” on page 17.
Power/Sleep button with
integrated LED
F
The drive activity LED on the front panel indicates
drive activity from the on-board hard disk
controllers.
Hard Drive Activity LEDG
System Status LED states
The System Status LED is a bi-color (Green/Amber) indicator that shows the current
health of the system. The appliance provides two locations for this feature. The first
location is on the Front Control Panel, while the second location is on the back edge
of the server board.

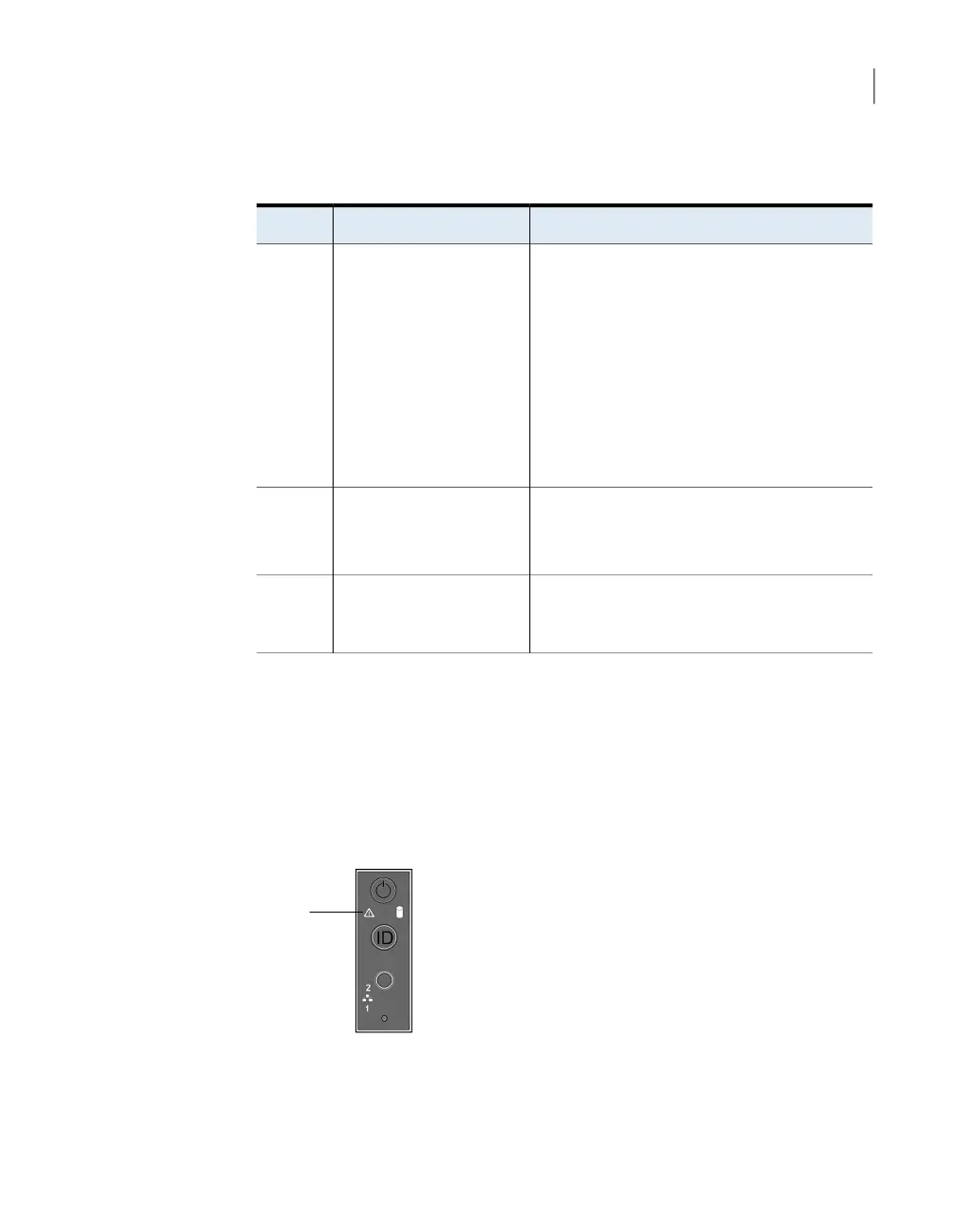

Figure 1-5
System Status LED control panel location
System
Status
LED
The following table provides a description of each LED state.
14About the NetBackup 5240 Appliance
