VERITAS NetBackup 5240 Appliance Product Description

Hard disk drive carrier characteristics
Each storage shelf hard drive is housed in a disk drive carrier. Each disk drive
carrier uses a locking mechanism that secures the disk drive within the storage
shelf.
Figure 2-2

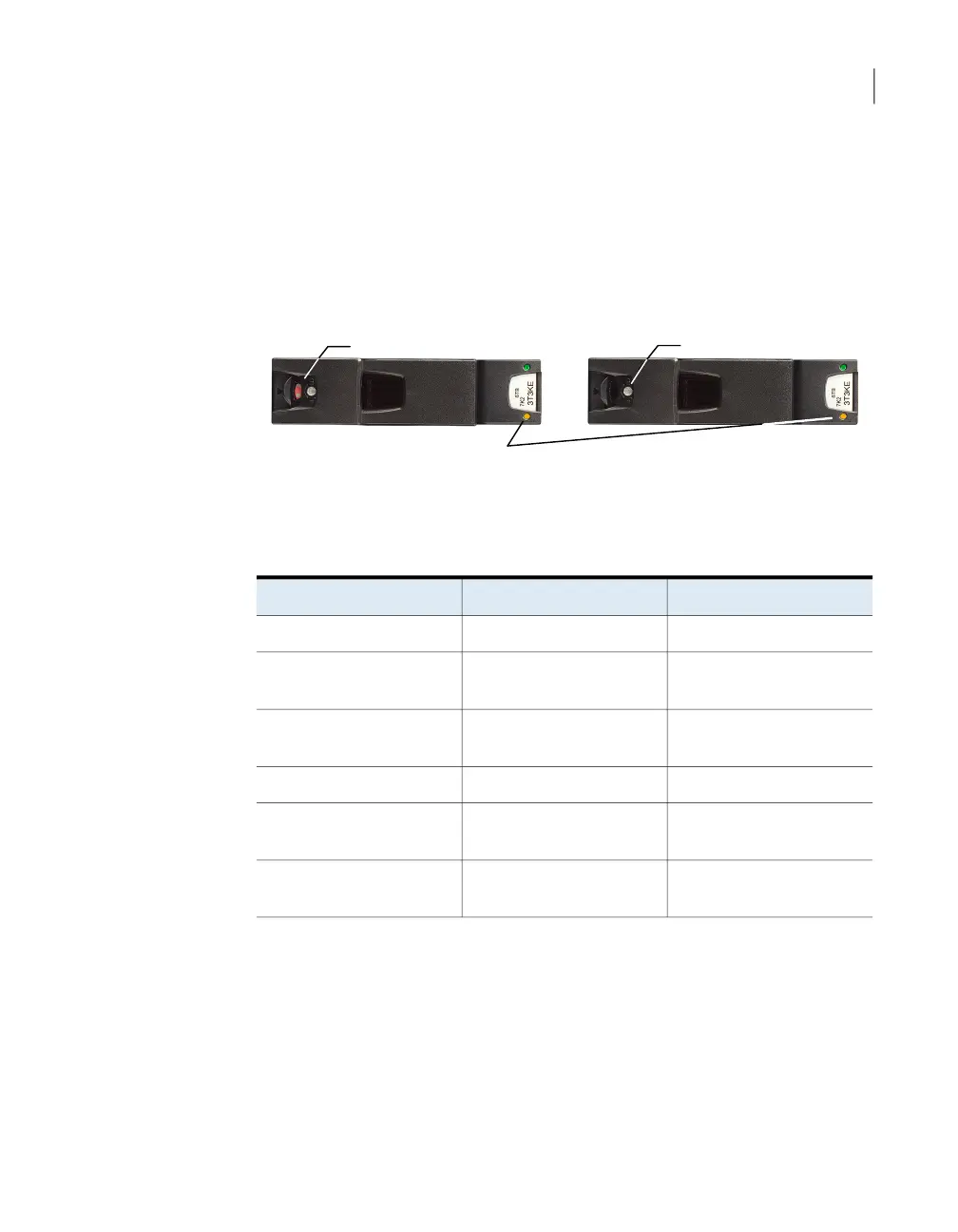

Hard disk drive tray components
Indicator Aperture
Locked
Anti-Tamper Lock
Unlocked
Drive tray Status LEDs
The following table describes the disk drive carrier LEDs. Note that the combination
of both LEDs provides the status.
Table 2-2
Veritas 2U12 49TB Storage Shelf disk drive carrier LED status
Fault (amber) LEDActivity (green) LEDStatus
OFFOFFNo disk drive installed.
OFFBlinks during I/O activity and
during startup.
Drives are installed, turned
on, and operational.
Blinks at a rate of 1 second
ON and 1 second OFF.
ONSCSI Enclosure Services
(SES) Device identity set.
ONOFFDrive slot fault.
ONONDrive fault. Power control
circuit fault.
Blinks at a rate of 3 seconds
ON and one 1 second OFF.
ONLogical fault. Possible drive
failed.
35About the Veritas 2U12 49TB Storage Shelf
