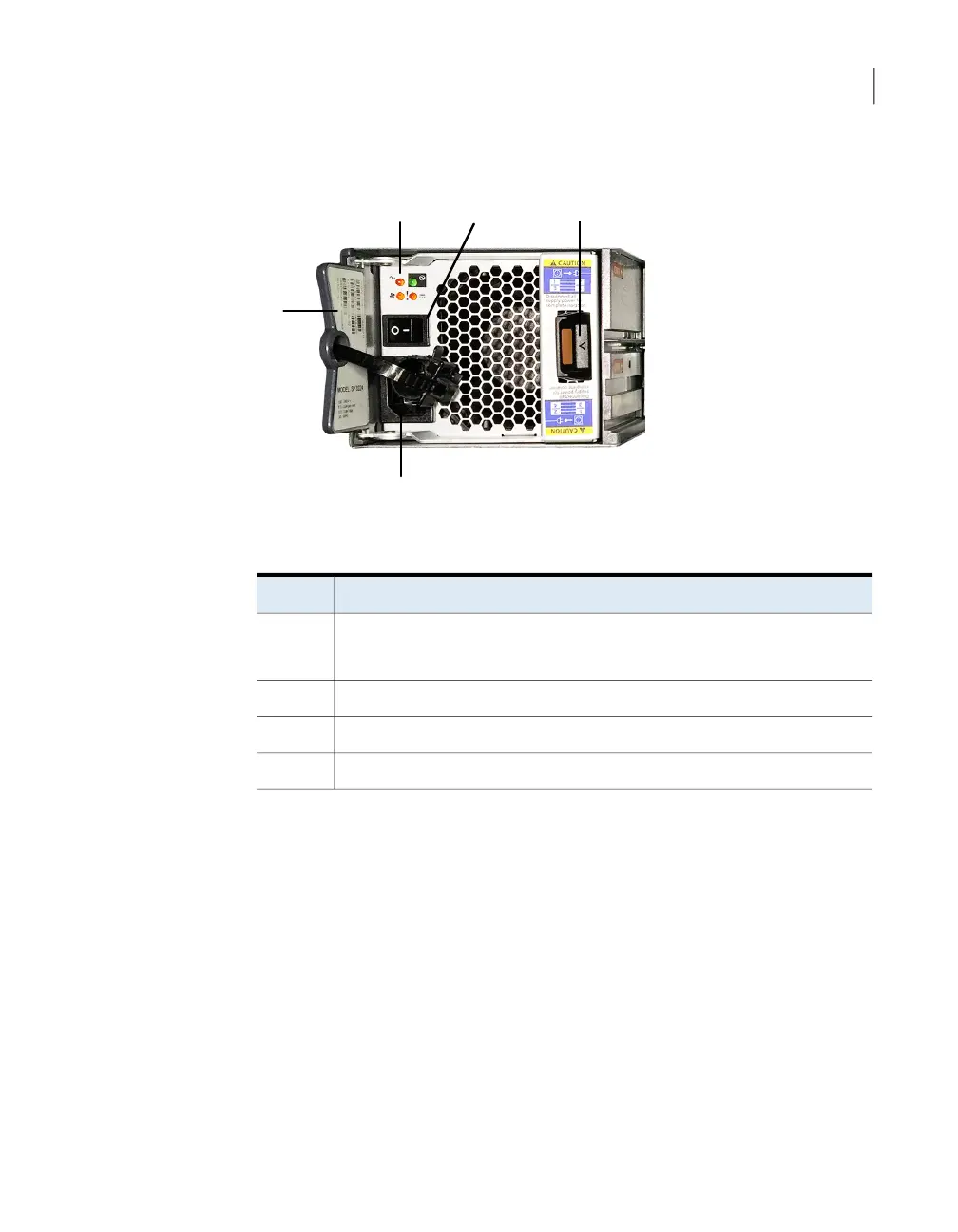

Figure
2-9
Power
Cooling
Module
1
3
5
4
2
T
able
2-9
Power
Cooling
Module
components
Component
Number
Power
Cooling
Module
LEDs
See
“Power
Cooling
Module
LEDs”
on
page
45.
1
On/Off
switch
2
Release
tab
3
AC
power
socket
4
44
About
the
V
eritas
2U12
49TB
Storage
Shelf
V
eritas
2U12
49TB
Storage
Shelf
rear
components
43
45
Table of Contents
Default Chapter
4
Table of Contents
4
Chapter 1 About the Netbackup 5240 Appliance
6
Netbackup 5240 Appliance Overview
7
Features and Components of the Netbackup 5240 Appliance
8
Netbackup 5240 Appliance Front Panel Disk Drive Configurations
10
Netbackup 5240 Appliance Disk Drive Leds
11
Netbackup 5240 Appliance Control Panel
12
System Status LED States
14
Power Button LED States
17
Netbackup 5240 Appliance Front Panel USB Port
12
Netbackup 5240 Appliance Rear Panel
18
Netbackup 5240 Appliance I/O Configuration Options
20
Netbackup 5240 Appliance Network Interface Port Locations and Speeds
31
Chapter 2 About the Veritas 2U12 49TB Storage Shelf
32
Veritas 2U12 49TB Storage Shelf Overview
32
Usable Appliance Storage Capacities
33
Veritas 2U12 49TB Storage Shelf Front Panel Components
34
Veritas 2U12 49TB Storage Shelf Control Panel
36
Veritas 2U12 49TB Storage Shelf Rear Components
38
Veritas 2U12 49TB Storage Shelf I/O Modules
39
Veritas 2U12 49TB Storage Shelf Power Cooling Modules
43
Chapter 3 Netbackup 5240 Appliance and Veritas 2U12 49TB Storage Shelf Connections
47
Netbackup 5240 Appliance and Veritas 2U12 49TB Storage Shelf Cables
48
Power Cables
48
Network Cable
49
Multi-Mode Fiber Optic Cable
50
Twinaxial Copper Cables
51
SAS-3 Cable
52
Appendix A Technical Specifications and Compliance Standards
54
Netbackup 5240 Appliance and Veritas 2U12 49TB Storage Shelf Technical Specifications
54
Environmental Specifications
59
Protocol Standards
60
Regulatory, Compliance, and Certification Information
61
Product Regulatory Compliance
61
Product Safety Compliance
62
Product EMC Compliance - Class a Compliance
62
Product Ecology Compliance
63
Certifications / Registrations / Declarations
63
Electromagnetic Compatibility Notices
64
Index
66
Other manuals for VERITAS NetBackup 5240
Manual
38 pages
Hardware Installation Guide
146 pages
Replacement
5 pages
Guide
84 pages
Hardware Service Procedure
7 pages
Safety And Maintenance Guide
29 pages
4
Based on 1 rating
Ask a question
Give review
