Light/Medium Duty OBD-II Harness Installation

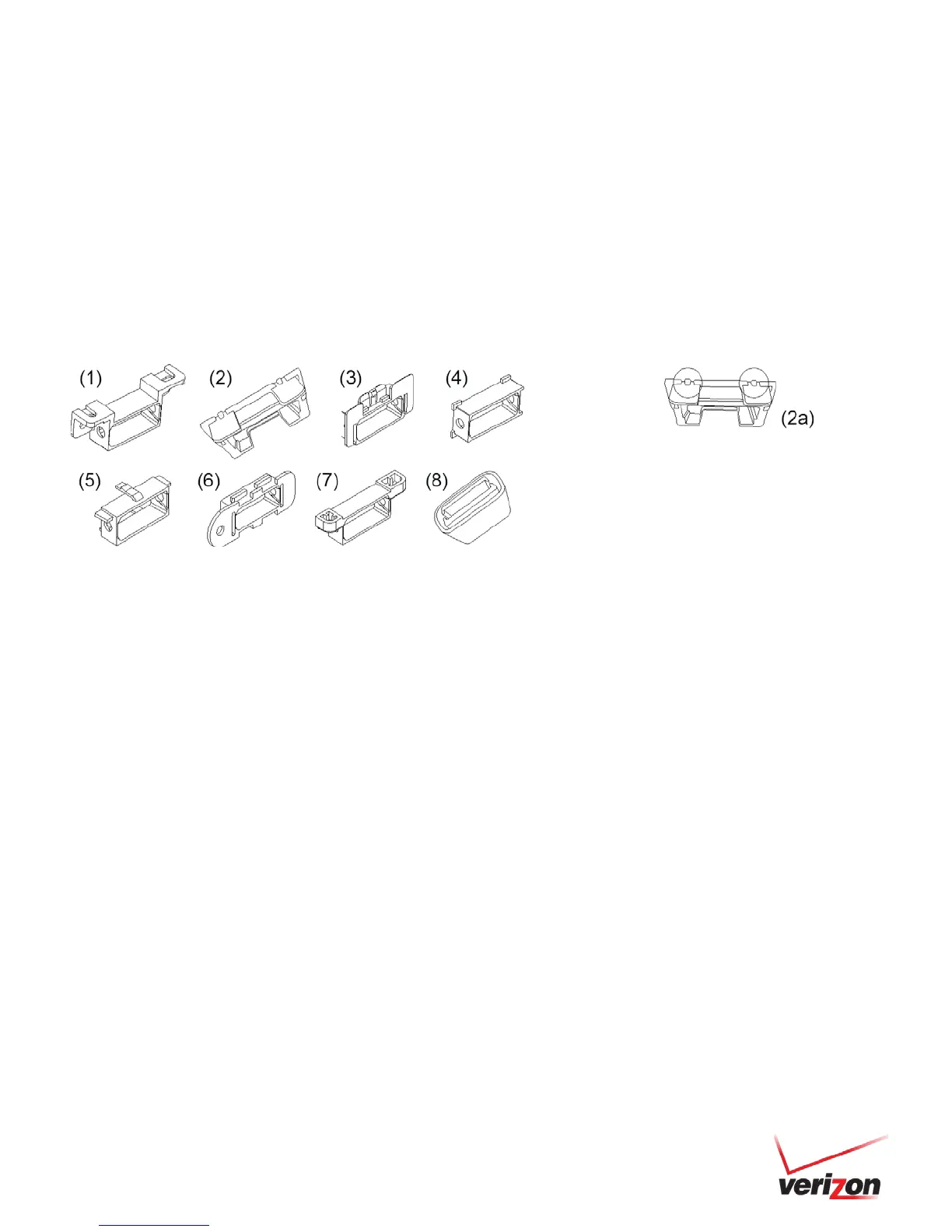

Select an Adapter that most resembles the shape of the OBD-II port of the vehicle.
Use these guidelines to match an adapter to the vehicle it is most likely to fit (each adapter is stamped with a number).
Ford, GM (1), (6), or (8)
Honda, Lexus, Toyota, Chrysler (2)
Toyota*, Chrysler* (2a)
GM, Saturn (3) | Mercedes, BMW (4)
Porsche, Audi, Volkswagen (5)
Volvo (6) | Saab (7)
For certain Toyota and Chrysler vehicles, you may need to adjust
the #2 adapter by removing the clips on the top and bottom of the
adapter. To the right is an example of the adjusted adapter labeled
(2a).
