Light/Medium Duty OBD-II Harness Installation

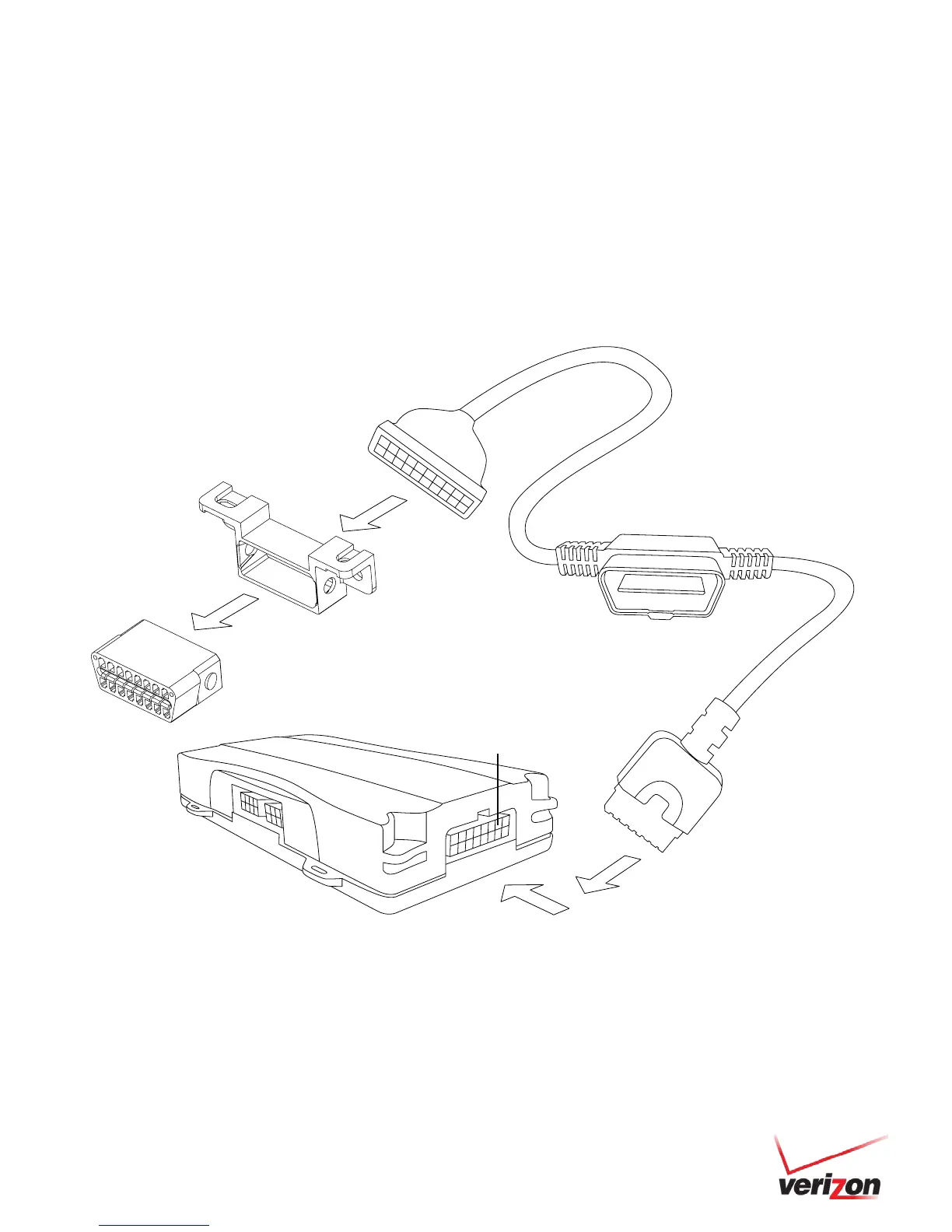

Core Connector Assembly
1. Snap the selected plastic adapter to the back of the Core Connector.
2. Attach the Core Connector to the OBD-II Replacement Connector.
Data Port Connection
Connect the Harness Connector to the Data Port.
OBD-II
Replacement
Connector
Adapter
Bypass
Connector
Harness
Connector
Networkfleet
Unit
Core
Connector
Data Port
