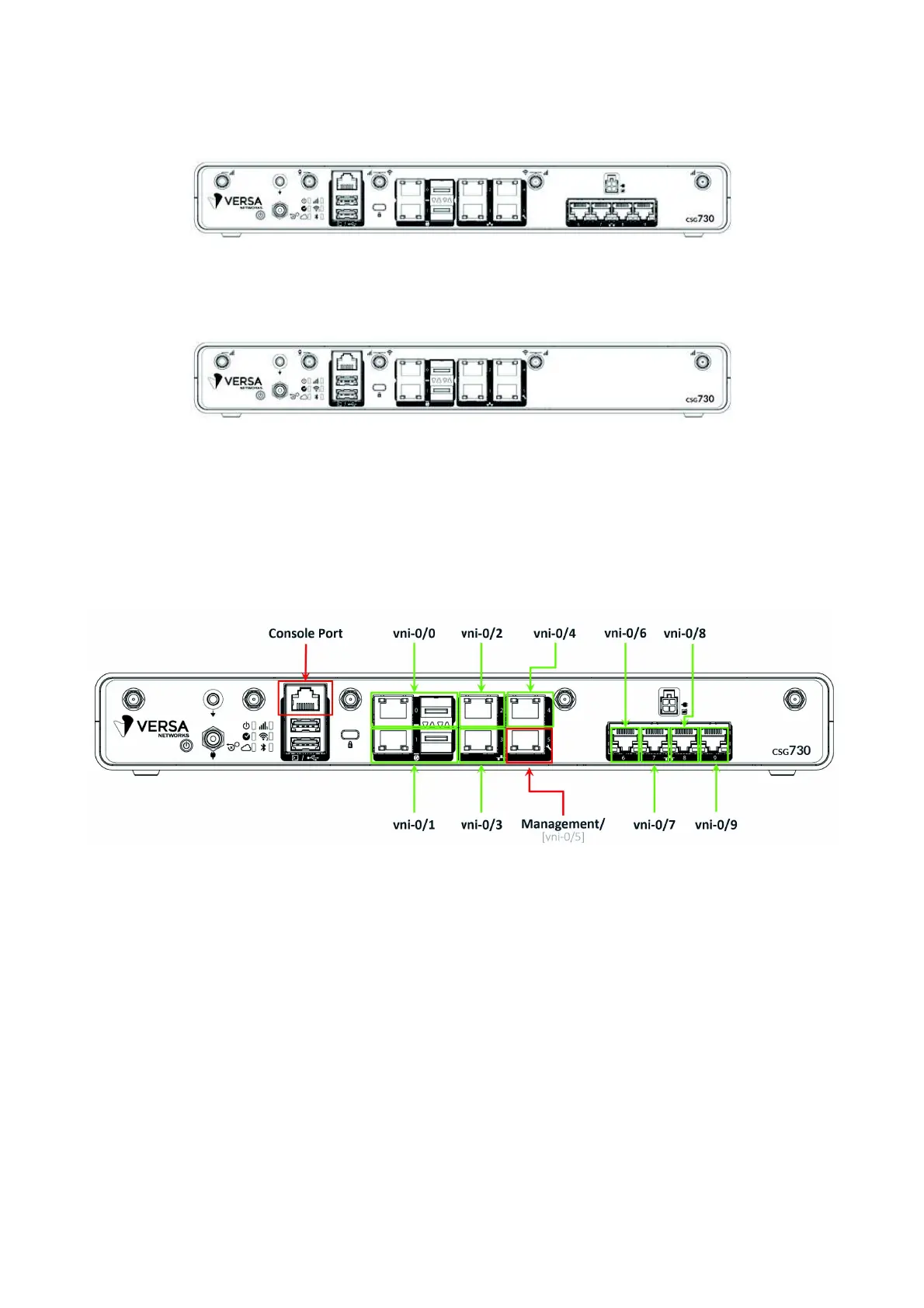

Figure 2 shows the four RJ-45 connectors/SFP slots for the 1-GB EoC/SFP combination port.
Figure 2: RJ-45 Connectors or SFP Slots for 1-GB EoC/SFP Combination Port
2.3 Interface Numbering
Figure 1 shows the mapping of the Ethernet ports to Virtual Network Interface (VNI) numbering.
Figure 3: Port-to-VNI Mapping
2.4 Power Supply and Airflow
This article describes the AC power supply, AC power cord specifications, and airflow requirements for CSG700
appliances.
2.4.1 AC Power Supply for CSG700 Series Appliances
By default, CSG700 series appliances ship with one AC power supply unit.
If you order the CSG700 series appliance with the power over Ethernet (PoE) NIC module, an additional power
supply unit ships with the appliance.
Table 1 describes the AC power supply specifications for each power supply unit.
