Operating Manual Reprint

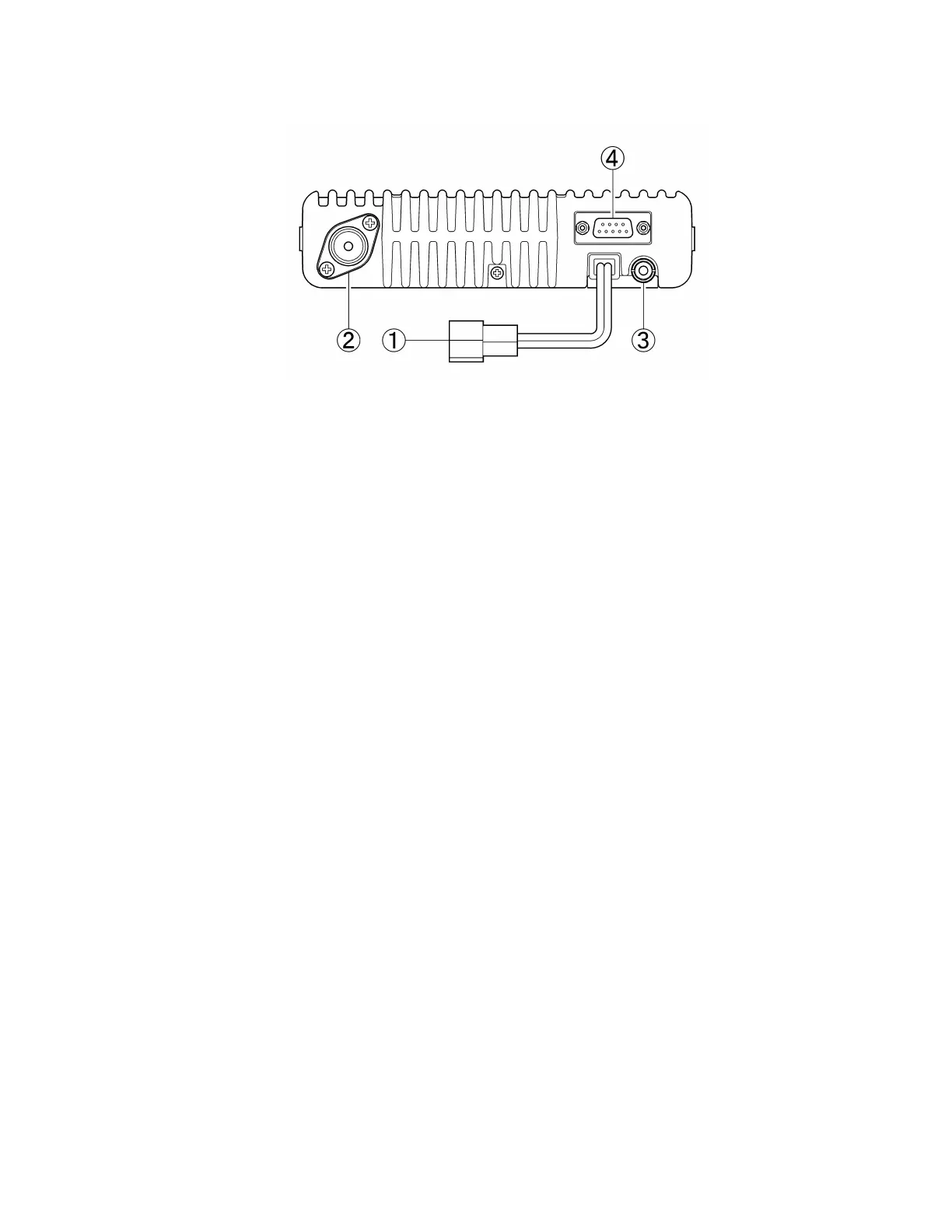

REAR (Heatsink)
À
13.6V DC Cable Pigtail w/Connector
The supplied DC power cable must be affixed to this 2-pin
connector.
Á
Antenna Socket
The 50-ohm coaxial feedline to the antenna must be con-
nected here, using a “UHF” type (PL-259) plug.
Â
External Speaker Jack
An external loudspeaker may be connected to this 2-con-
tact, 3.5-mm miniature phone jack.
Ã
DSUB 9-Pin Data Connector
External Transmit Audio input, PTT (Push To Talk),
Squelch, and Receive Audio output signals may be obtained
from this connector for use with accessories such as a data
transmission/reception modem, etc.
