MAIN Unit (Lot. 10~)
1
2
3
4
A C E FB D G H

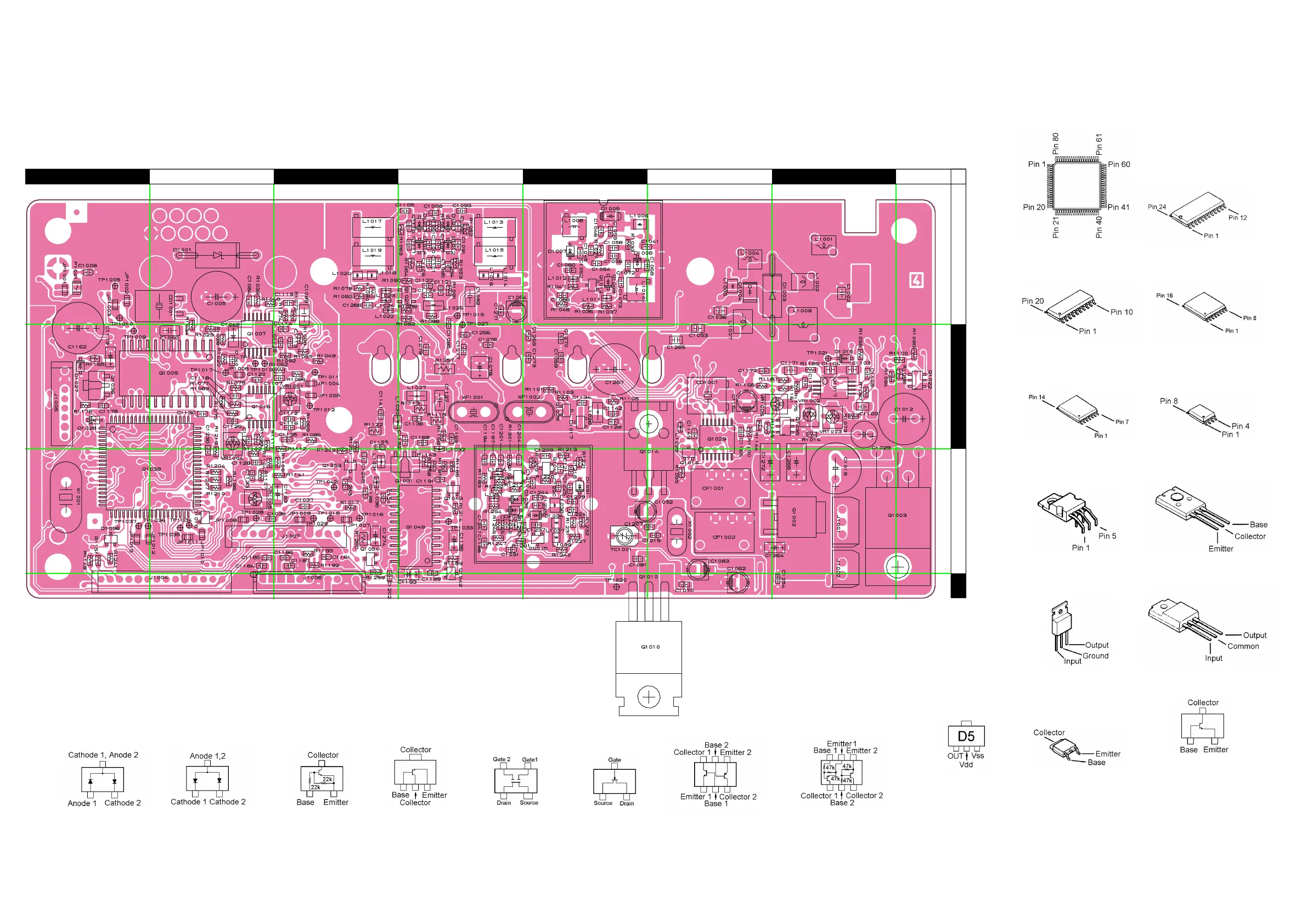

Parts Layout
Side A
DAP202U (P)
(D1016, 1036)
TDA2003H
(Q1003)
HA17805P (Lot. 1~)
(Q1010)
NJM2902V
(Q1007, 1016)
SC370651FR2
MC145192FR2 (Lot. 19~)
MC145193FR2 (Lot. 23~)
(Q1049)
BA4116FV
TA31136FN (Lot. 2~)
(Q1029)
IMZ1 (Z1)
(Q1022)
2SK880GR (XG)
(Q1043)
SGM2016M (M-)
SGM2016AM (Lot. 7~) (MA)
(Q1021)
2SB1201STP
(Q1002)
2SB1143S
(Q1014)
MX165BDW
MX165CDW (Lot. 5~)
(Q1009)
MB89P677ARFM (Lot. 1~)
MB89677ARPFM (Lot. 2~)
(Q1039)
DTC124EU (25)
(Q1050, 1053)
2SC3357 (RK)
(Q1031)
IMH6 (H6)
(Q1035)
2SC4116GR (LG)
(Q1015, 1042)
(Lot. 19~ : Q1054)
2SC4215Y (QY)
(Q1026)
2SC4226 (R24)
(Q1047)
2SC4227 (R34)
(Q1012)
2SC5107O (MFO)
2SC4226 (Lot. 7~) (R24)
(Q1044)
MA143 (MC)
(D1017)
NJM2904V
(Q1017)
RH5VA45AA (Lot. 1~) (D5)
RH5VT45AA (Lot. 10~)
(Q1036)
KIA7805API (Lot. 57~)
(Q1010)
