Vertex Standard VX-2000V - Main Unit Parts Layout (Lot. 19~)

33

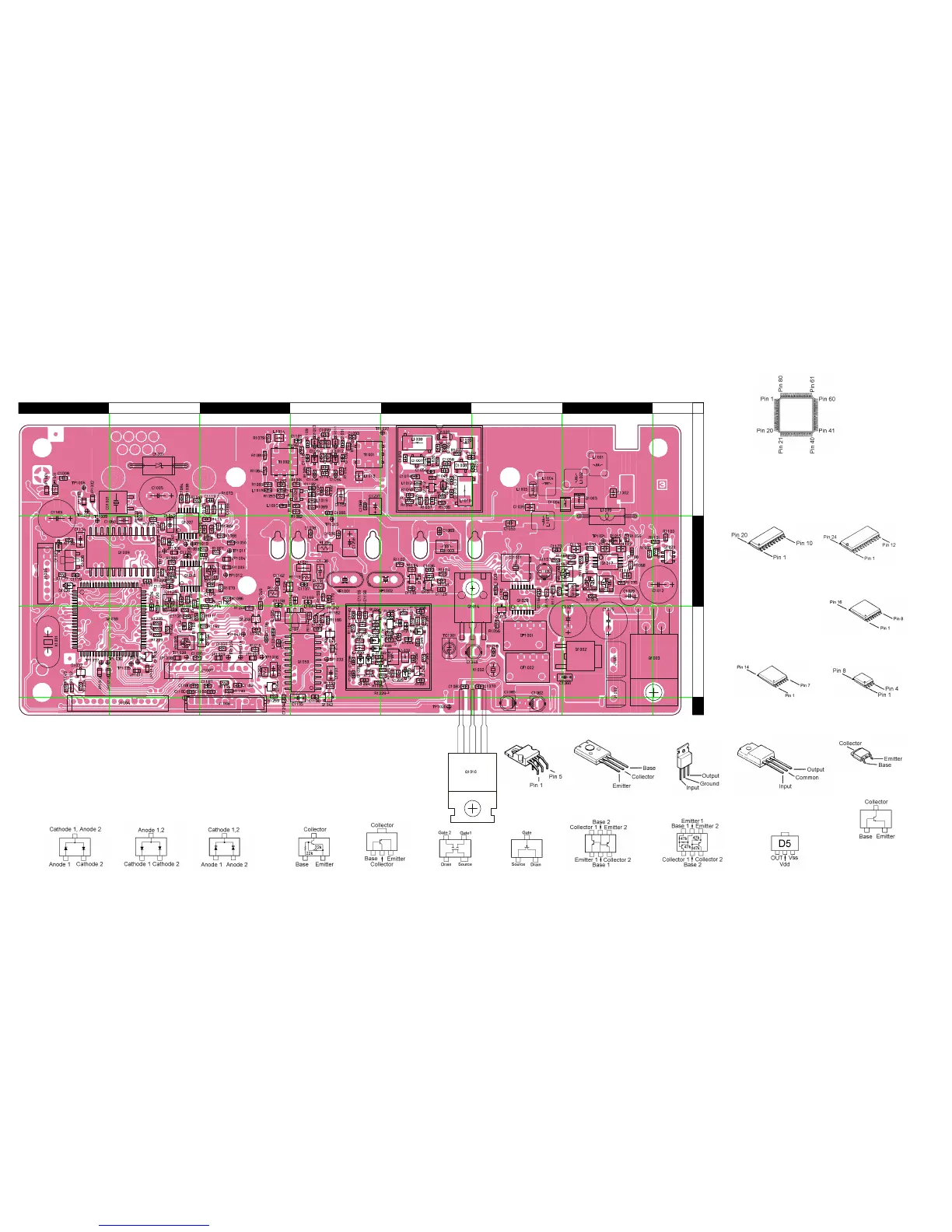

MAIN Unit (Lot. 19~)
1
2
3
4
A C E FB D G H
Parts Layout
DAP202U (P)
(D1016, 1037)
KV1470 (F7)
KV1870STL (Lot. 44-)
(D1007, 1008)
RH5VL45AA (D5) (Lot. 1~)
RH5VT45AA (Lot. 19~)
RH5VL45AA (D5) (Lot. 22~)
(Q1036)
IMZ1 (Z1)
(Q1022)
2SK880GR (XG)
(Q1043)
SGM2016M (M-) (Lot. 1~)
SGM2016AM (MA) (Lot. 8~)
(Q1021)
DTC124EU (25)
(Q1053)
(Q1048: Lot. 1)
2SC3357 (RK)
(Q1031)
IMH6 (H6)
(Q1035)
2SC4116GR (LG)
(Q1015, 1042)
(Q1048: Lot. 2~)
(Q1054: Lot. 26~)
2SC4215Y (QY)
(Q1026)
2SC4226 (R24)
(Q1012)
2SC5107O (MFO)
(Q1044, 1046)
MA143 (MC)
(D1017)
TDA2003H
(Q1003)
HA17805P (Lot. 1~75)
(Q1010)
NJM2902V
(Q1007, 1016)
SC370651FR2
MC145192FR2 (Lot. 26~)
MC145193FR2 (Lot. 41~)
(Q1050)
BA4116FV
TA31136FN (Lot. 7~)
(Q1029)
2SB1201STP
(Q1002)
2SB1143S
(Q1014)
MX165BDW
MX165CDW (Lot. 6~)
(Q1009)
MB89P677ARFM (Lot. 1~)
MB89677ARPFM (Lot. 2~)
MB89P677APFM (NTL: Lot. 53~)
MB89677ARPFM (EXP, STANDARD, VTX: Lot. 53~)
(Q1039)
NJM2904V
(Q1017)
KIA7805API (Lot. 76~)
(Q1010)
Side A
