16

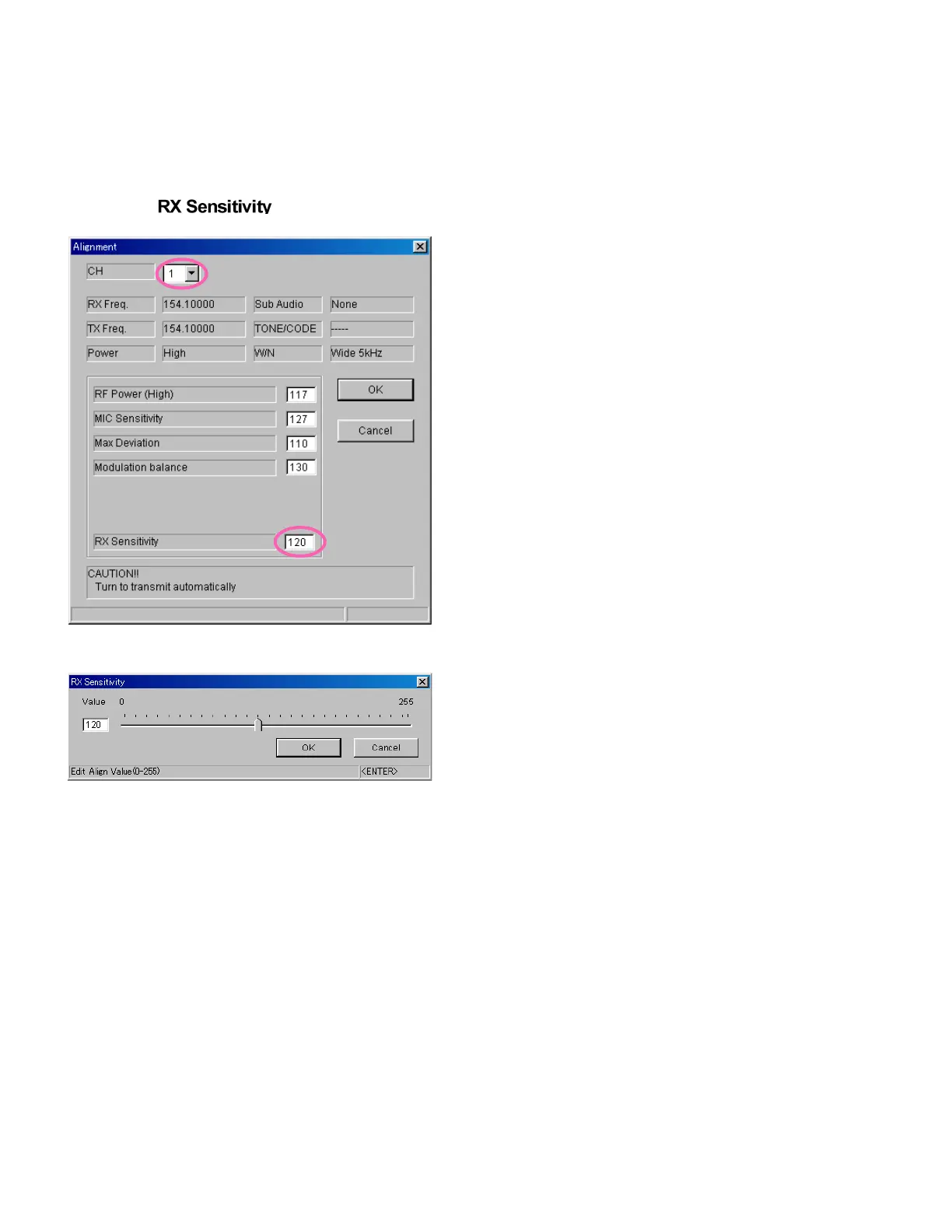

RX Sensitivity
This parameter is used to RX Sensitivity.
Set the transceiver to CH1# via the "CH" box lo-
cated upper left corner on the "Alignment" win-
dow previously.
Set the SG output level to -6dBµ EMF with 3kHz
deviation ±1kHz.
To adjustment double-click the left mouse but-
ton on the "
" box to open pop-up
window.
Move the Slide bar, as need, as need, to set the
RX Sensitivity to the following specification.
Press "OK" to lock in the new data.
Alignment
To Next Page
