Vertex Standard VX-2500EV - Page 36

PANEL Unit
36

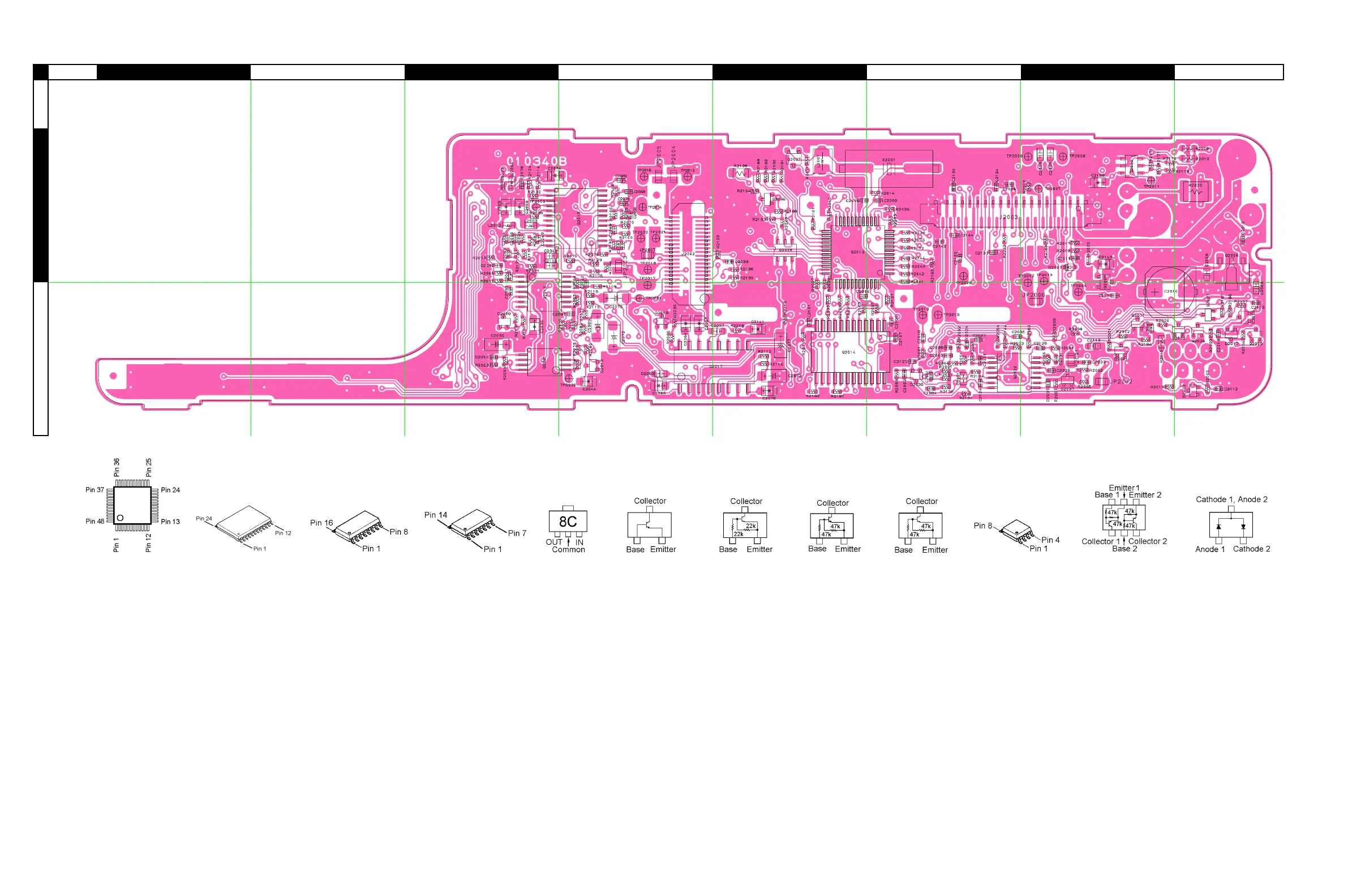

Parts Layout (Side B)
a
c
b
e
d
g
fh
1
2
AK2345
(Q2016)
M62364FP
(Q2014)
LA8630M
(Q2017)
NJM2902V
(Q2015, 2022)
NJM78L05
(Q2006)
2SC4154 (LE)
(Q2007)
2SC4617 (BR)
(Q2001, 2002, 2027)
PDTC144EE (08)
(Q2028)
RT1N241M (N2)
(Q2008)
RT1P441U (P3)
(Q2009, 2036)
DA221 (K)
(D2001, 2002, 2005, 2009,
2012, 2013, 2036)
IMH6A (H6)
(Q2025, 2035)
M37516F8HP
(Q2013)
M5223AGP 600C
(Q 2021)
