Vertex Standard VX-351PMR446 Service Manual

3VX-351PMR446 Service Manual

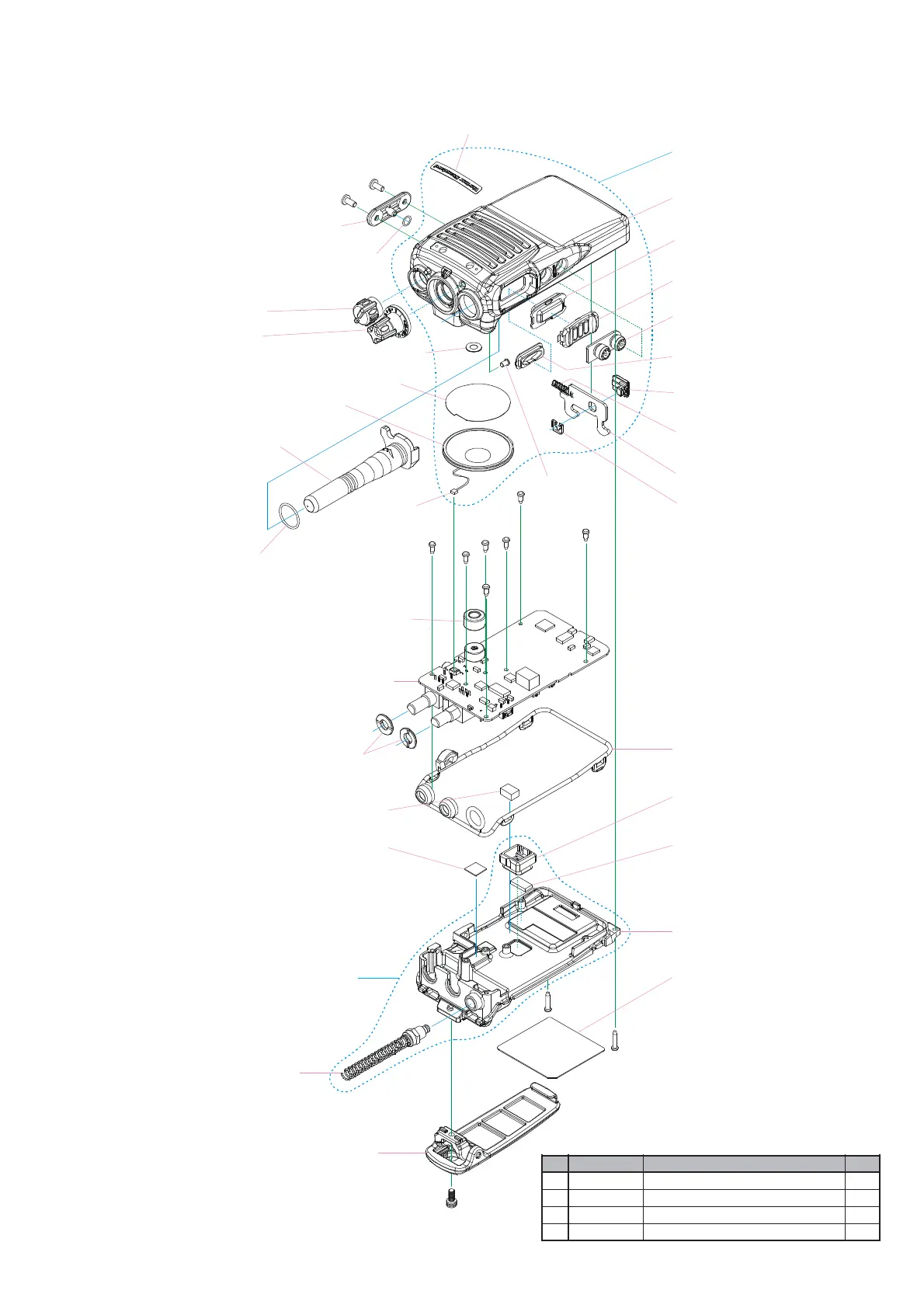

Exploded View & Miscellaneous Parts












RA090530A
COIL SPRING
RA104200B
LATCH NAIL
RA0905200
LATCH PLATE
RA090600D
KNOB (VOL)
RA090590A
NUT (x 2pcs)
RA091760D
KNOB ASSY (CH)
RA090490CCOVER
(PTT)
RA1041700
RUBBER (PTT)
M4090192B
SPEAKER
RA0557900
SP NET
CP9266001
REAR CASE ASSY
T9207469B
WIRE ASSY
RA011020A
HOLDER RUBBER (MIC)
MAIN Unit
RA1070200
RUBBER (TMNL)
RA1173600
RUBBER PACKING
RA0912700
SHEET (HEAT8t0.5)
RA0173500
CAP (MIC/SP)
AAF60X101
CLIP-18
RA03187AA
BLIND SHEET(BLACK)
RA1058900
O RING (2.9x1.2)
RA1042200
COVER (ANT)
RA1042100
LOCK PLATE
RA104190A
FRAME (PTT)
Q9000897
HELICAL ANTENNA
RA1058800
O RING (12x1)
RA102920D
FRONT CASE
RA1041800
RUBBER (SIDE)
RA0295700
NAME PLATE
RA0187600
SHEET (M-TEX1131)
RA010320A
LIGHT GUIDE
Non-designated parts are available only as part of a designated assembly.
REF VXSTD P/N DESCRIPTION QTY.

RA1424600 SCREW SM3X8SUS 1

U20206007 BINDING HEAD SCREW M2.6X6B 2

U24110002 BIND HEAD TAPTITE-B M2X10NI 2

U44105002 PAN HEAD TAPTITE-B M2X5NI 7
CP9267001
FRONT CASE ASSY
RA090570F
REAR CASE
RA0442300
SPONGE RUBBER (SHIELD)
RA0896300
GASKET (L=10)
