Vertex VX-6R - Page 20

20

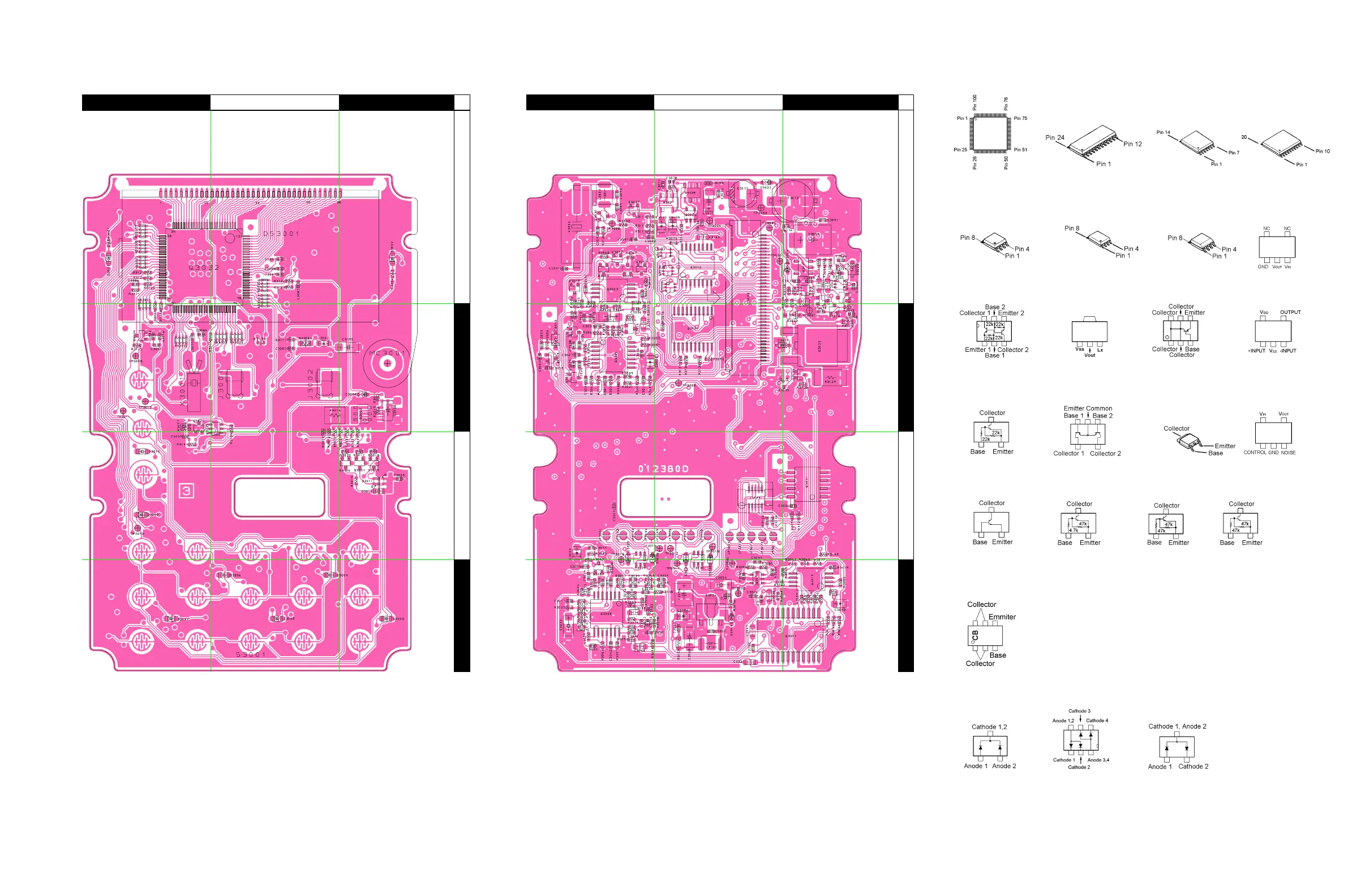

CNTL Unit (Lot. 3~)
Side A
Parts Layout
Side B
DAN222 (N)
(D3015)
DA221 (K)
(D3016, 3017, 3018,
3021)
HD64F2266TF13
(Q3032)
NJM3403AV
(Q3008)
XC6371A650PR
(Q3024)
DTA144EE (16)
(Q3007)
DTC143ZE (E23)
(Q3029)
DTC144EE (26)
(Q3001, 3005, 3006,
3010, 3012, 3013,
3014, 3034, 3037,
3038)
UMW1 (W1)
(Q3026)
2SC5374 (NA)
(Q3030)
2SC4617 (BR)
(Q3009, 3018, 3019)
2SD1801S
(Q3033)
CPH6102 (AB)
(Q3028)
AC
1
2
3
B
4
1
2
3
b
4
UMP11N (P11)
(D3029, 3030)
LM2904PWR
(Q3003, 3015)
M62364FP
(Q3011)
DTC124EE (25)
(Q3035)
UMD2N (D2)
(Q3025)
AT24C256N
(Q3031)
BU4094BCFV-E2
(Q3016)
LM2902PWR
(Q3004)
NJU7007F2-TE1
(Q3017)
TAR5S30
(Q3027)
NJU7231F30
(Q3021)
a c
CPH6202 (CB)
(Q3002)
BU2099FV-E2
(Q3020)
