VCO Unit

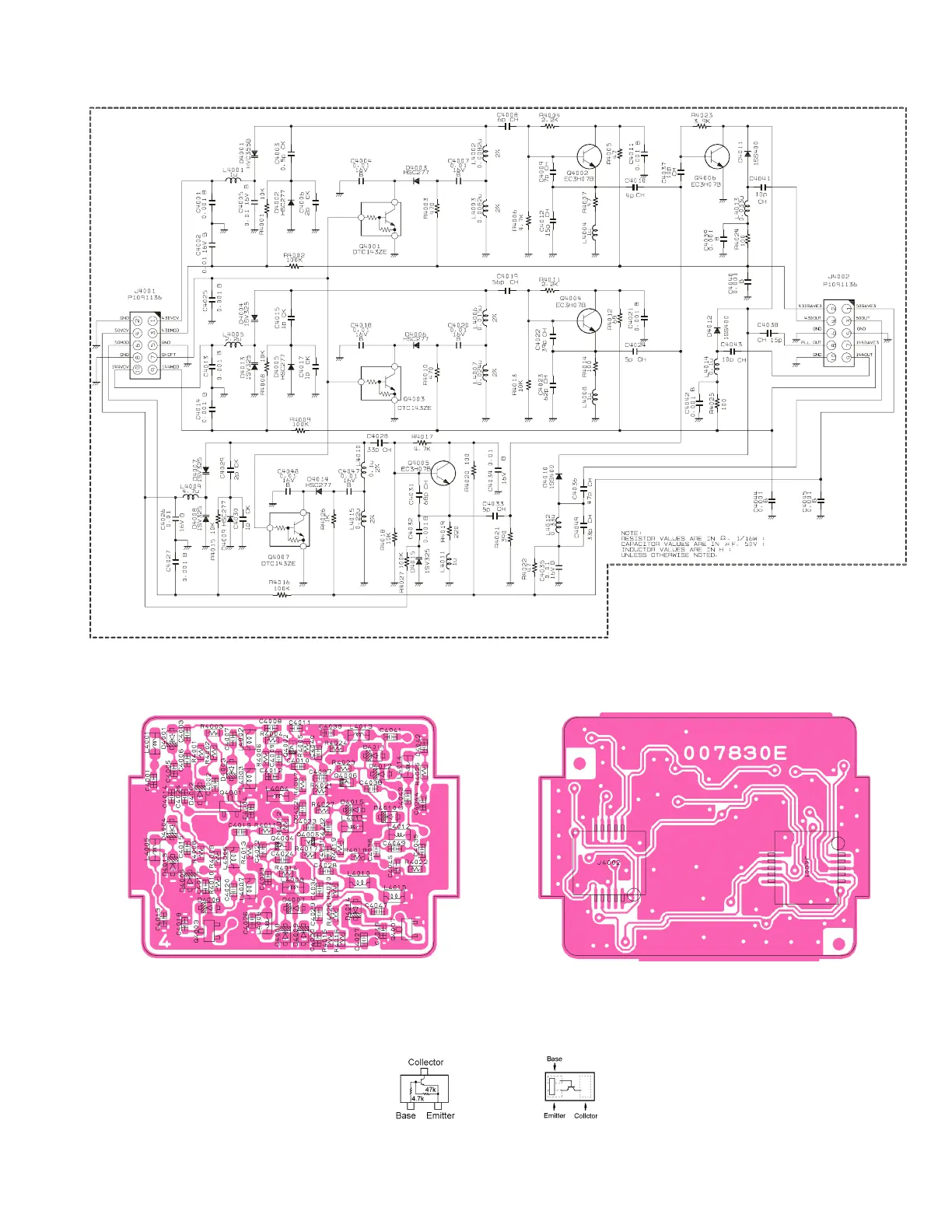

Circuit Diagram
Parts Layout
Side A Side B
DTC143ZE (E23)
(Q4001, 4003, 4007)
EC3H07B (G)
(Q4002, 4004, 4005,
4006)
