Vertex VX-6R User Manual

4

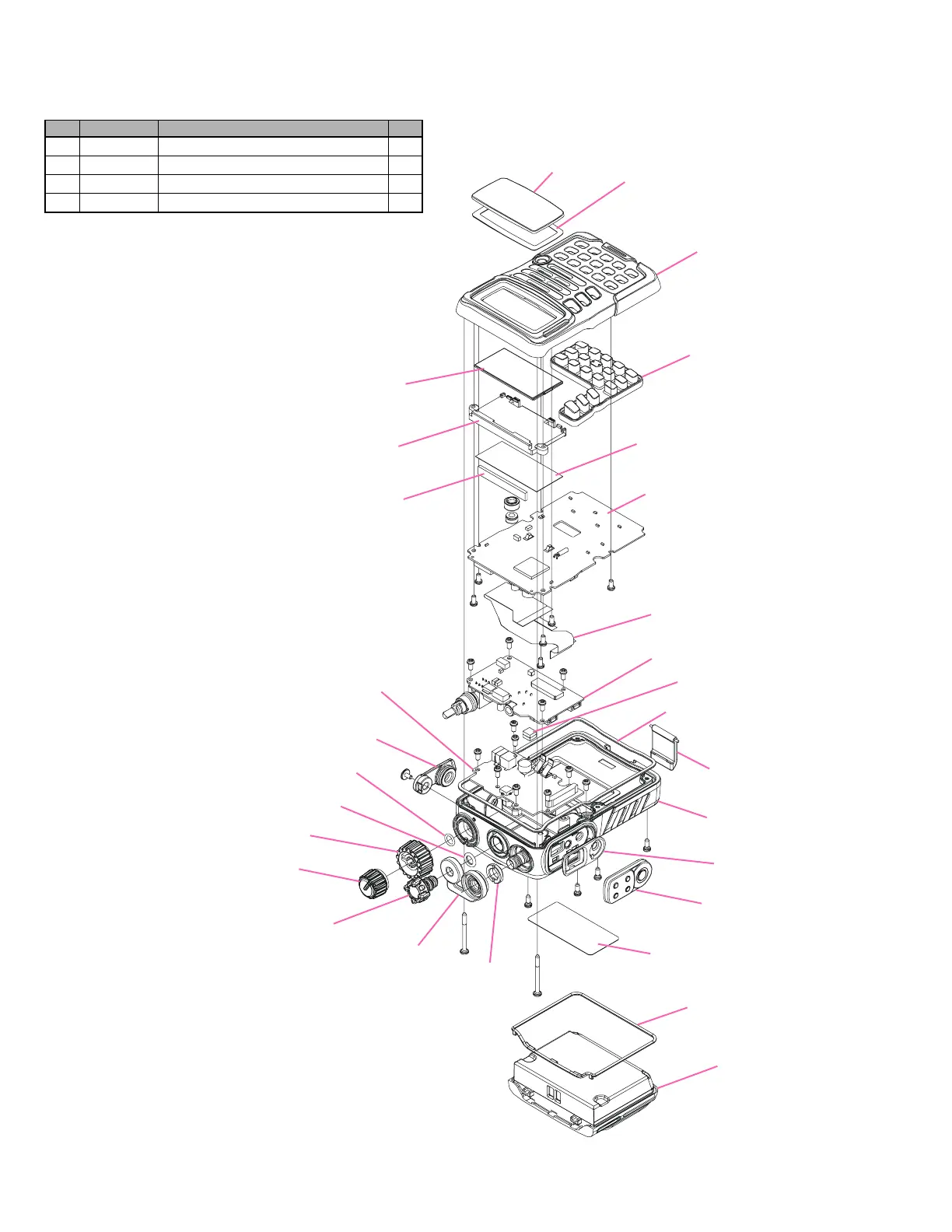

Exploded View & Miscellaneous Parts
Non-designated parts are available only as part of a
designated assembly.
No.




VXSTD P/N
U44104002
U9900180
U9900179
U9900181
Description
TAPTITE SCREW M2X4NI
TAPTITE SCREW 2X5SUS(O-RING)
TAPTITE SCREW 2X22SUS(O-RING)
TAPTITE SCREW 2X3.5(CAP)
Qty.
18
4
2
1
CP8159002 (DST:USA)
CP8159003 (DST:EXP)
CP8159004 (DST:EU)
CP8159005 (DST:AUS)
FRONT CASE ASSY
RA0653700
WINDOW
RA0645300
HOLDER PTT
RA0645200
PTT KNOB
RA014030A
LATCH NAIL
RA0646200
PACKING PAD
AF Unit
RA0577900
KNOB SCREW
RA0140100
MASK SHEET
RA0646500
RUBBERKEY
RA0653600
RING NUT
RA0646100
CAP
RA0646000
EXT CAP
RF Unit
CNTL Unit
FR013010A
FPC CABLE
FNB-80LI
RA0141600
RUBBER PACKING
RA0646600
LIGHT GUIDE(LCD)
RA0646700
REFLECTOR SHEET
G6090164
LCD

























CP8155001
REAR CASE ASSY
RA008890A
O RING
RA0645400
DOUBLE FACE TAPE
RA0646300
KNOB A
RA0646400
KNOB B
RA0467600
O RING
RA0646800
INTER CONNECTOR
S6000414
GAP PAD TMS-M-5 6X6 (2 pcs)
