Vertex VX-6R - Page 30

30

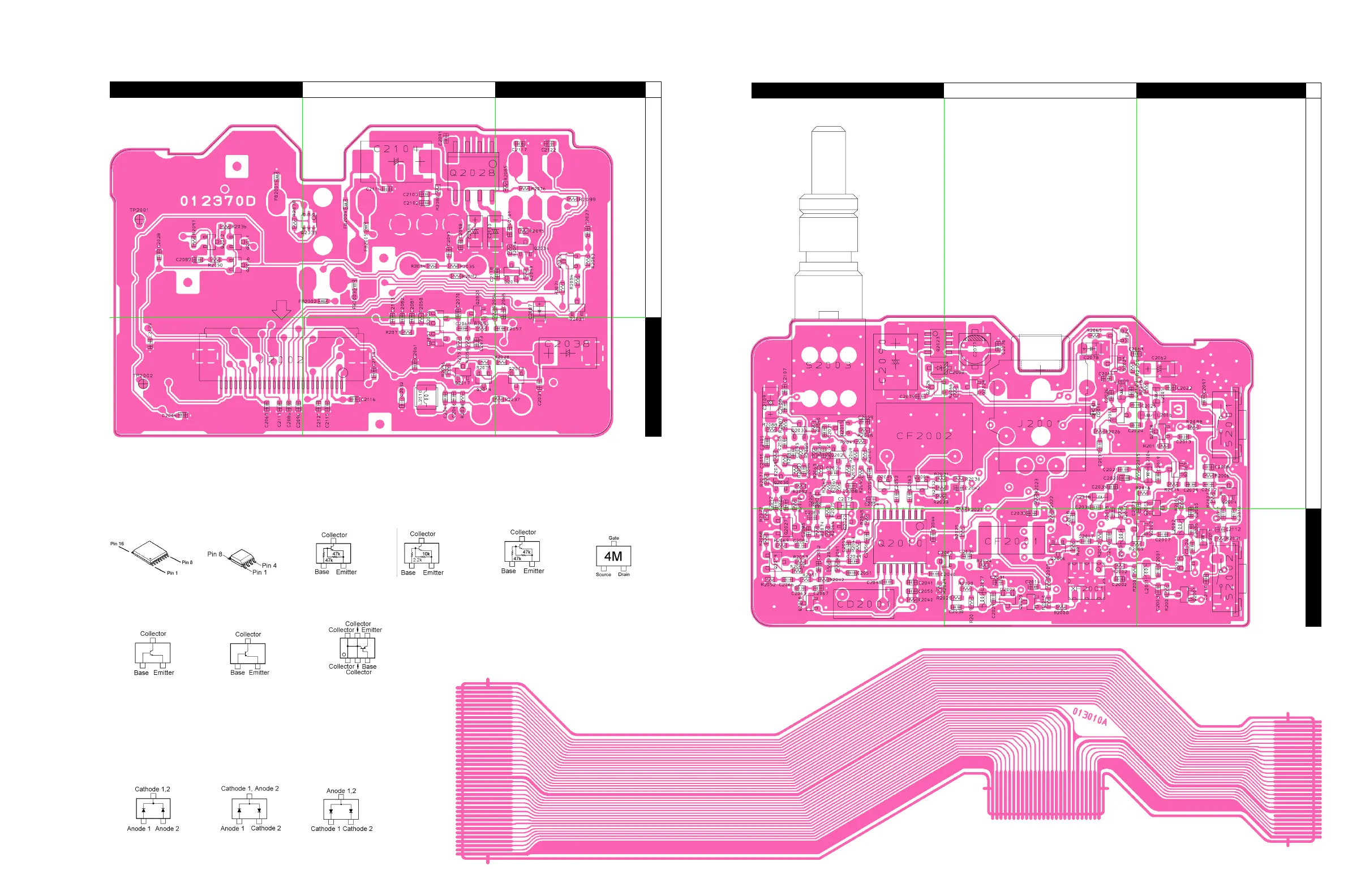

Parts Layout
TDA7233D
(Q2028)
DAP222 (P)
(D2001)
2SJ364-R(4M)
(Q2019, 2027)
Side A
AC
1
2
B
Side B
acb
1
2
DA221 (K)
(D2002, 2006, 2007,
2010)
DAN222 (N)
(D2003, 2004, 2005)
DTC144EE (26)
(Q2001, 2003, 2018,
2025)
DTA144EE (16)
(Q2024)
2SA1774 (FR)
(Q2011, 2013, 2014,
2016, 2032)
TA31136FN
(Q2010)
CPH6102 (AB)
(Q2023)
DTC123YE (62)
(Q2029)
2SC4617 (BR)
(Q2012, 2015, 2017,
2020, 2021, 2022,
2026, 2030, 2031,
2033, 2034)
2SC4915 (QY)
(Q2002, 2004, 2005,
2006, 2007, 2008,
2009)
AF Unit (Lot. 3~)
