Vertical Power VP-X Pro - Appendix F - Ray Allen Stick Grip Wiring; Excerpt from Ray Allen G205 and G207 stick grips wiring instructions, modified to show VP-X integration.

Page 80
VP-X Installation and Operating Manual
Rev. D (August 5, 2020)
Appendix F – Ray Allen Stick Grip Wiring
7
WIRING STYLE 2 (contʼd.)

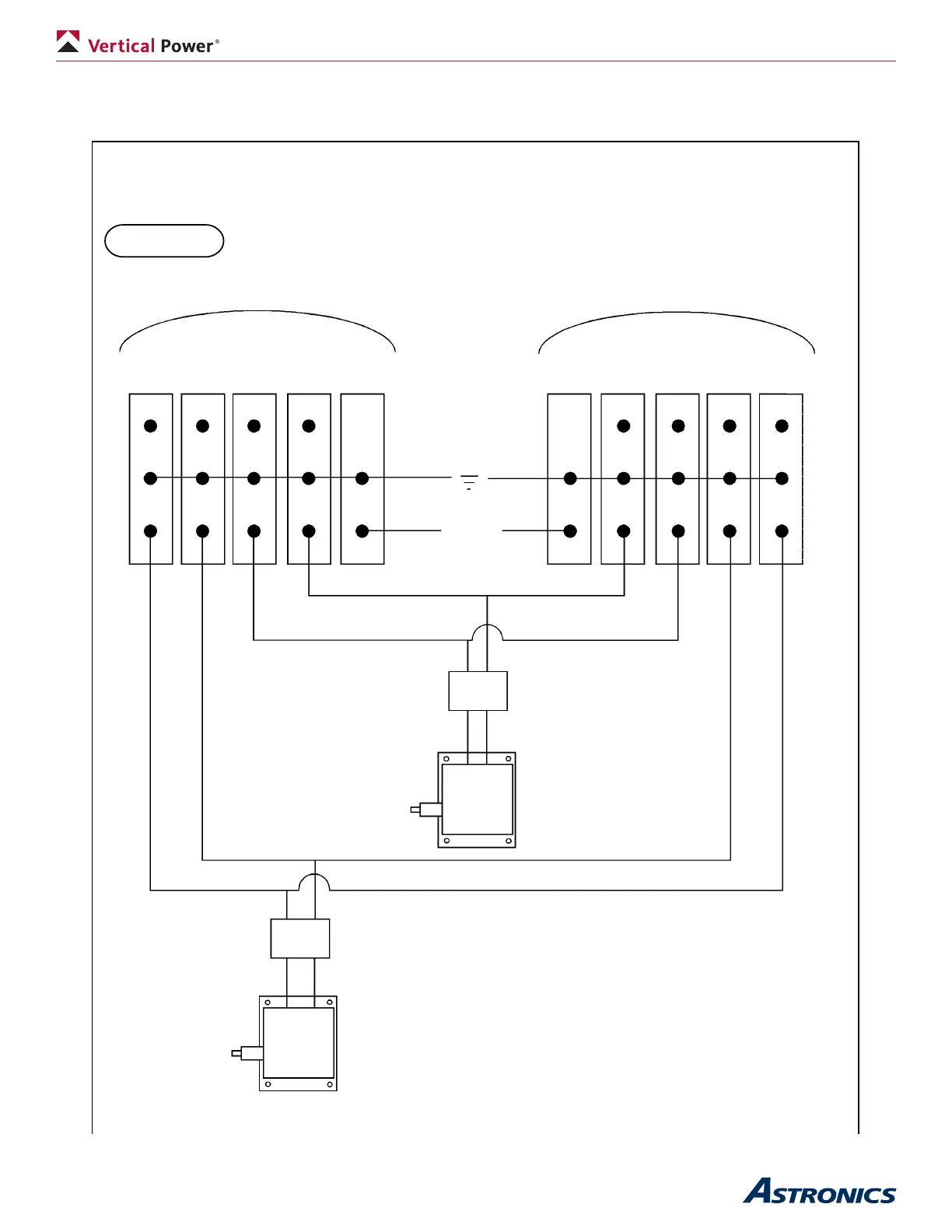

Figure 2C
NO
NC
C
NC = Normally Closed
NO = Normally Open
C = Common
Elevator
Servo
Aileron/
Rudder
Servo
VP-X
VP-X
NC
NO
C
Radio
PTT
Pilot's Grip
Copilot's Grip
Switch
#1
Switch
#1
Switch
#2
Switch
#2
Switch
#3
Switch
#3
Switch
#4
Switch
#4
Switch
#5
Switch
#5
Excerpt from Ray Allen G205 and G207 stick grips wiring instructions, modied to show VP-X integration.
