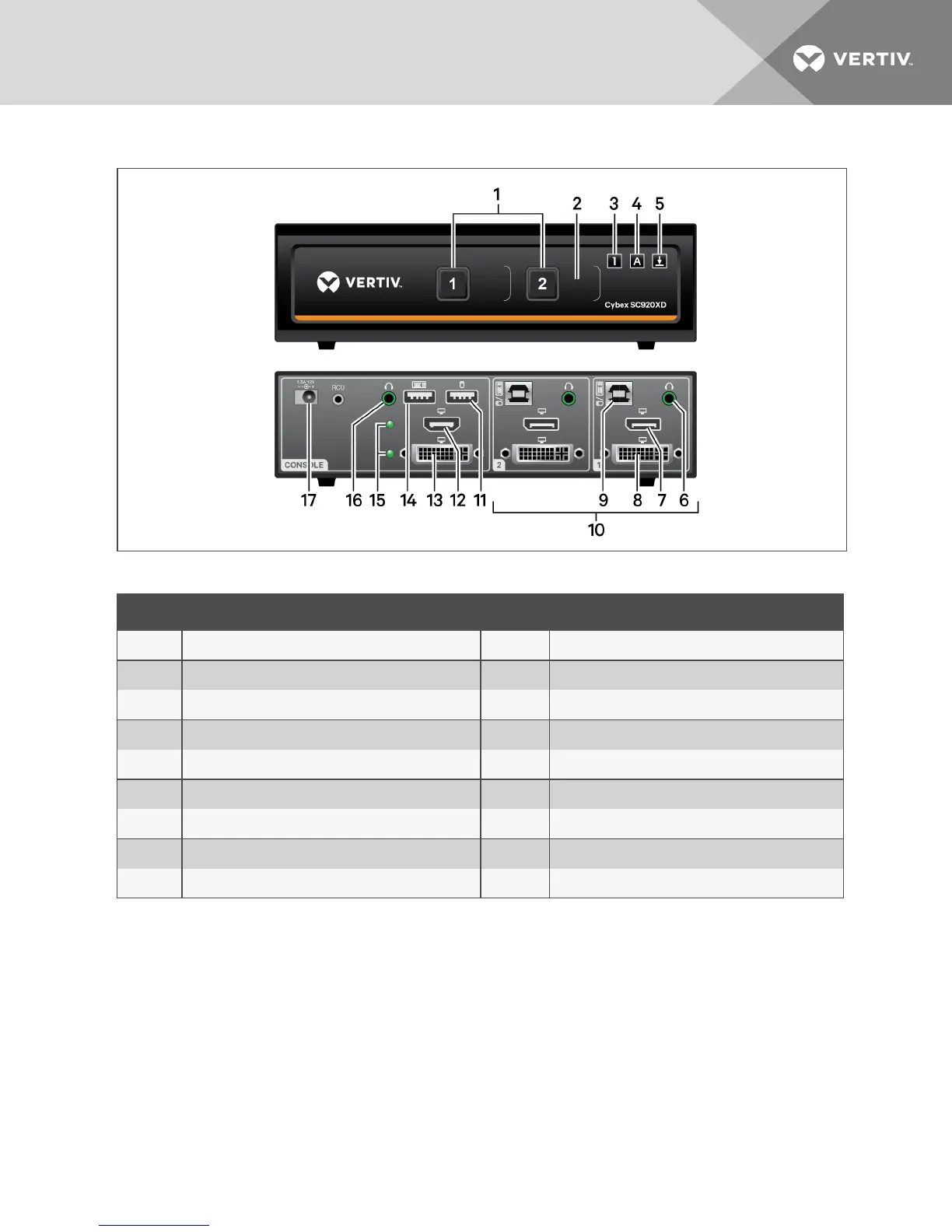

Figure 2.8 SC 920XD KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 10 PC ports
2 Channel label 11 CONSOLE mouse USB Type-A port
3 Num lock indicator 12 CONSOLEHDMI video port
4 Caps lock indicator 13 CONSOLE DVI-I video port
5 Scroll lock indicator 14 CONSOLEkeyboard USB Type-A port
6 PC audio jack (3.5 mm stereo) 15 Status LEDs
7 PC DisplayPort video port 16 CONSOLE audio jack (3.5 mm stereo)
8 PC DVI-I video port 17 DC power inlet
8 PC keyboard/mouse USB Type-B port
Table 2.8 SC 920XD KVM Switch Description
