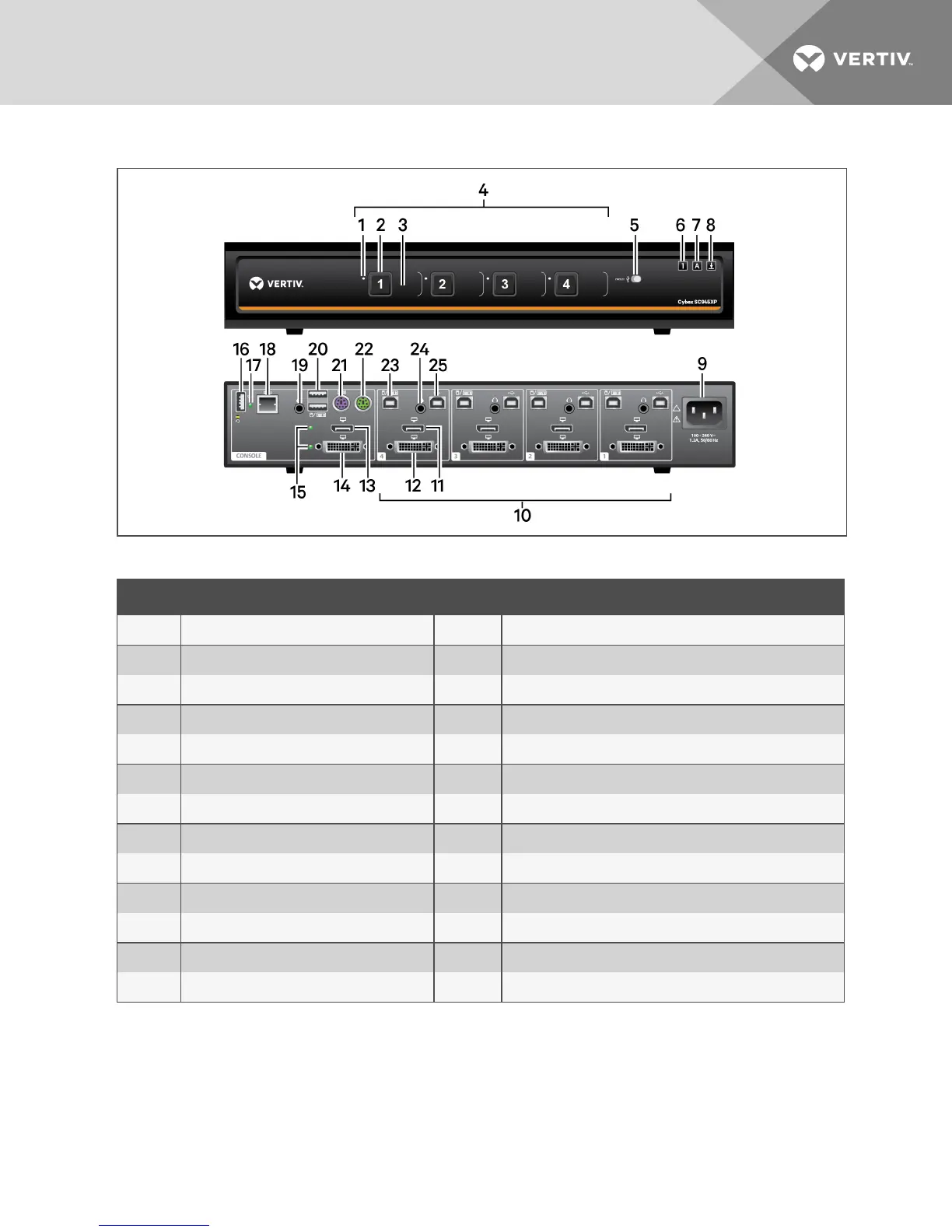

Figure 2.10 SC 945XP KVM Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED DPP channel indicator 14 CONSOLEDVI-I video port
2 LED channel selector 15 Status LEDs
3 Channel label 16 CONSOLE DPP USB Type-A port
4 PCport selectors 17 CONSOLE DPP LED connection indicator
5 DPP freeze button 18 CONSOLE Remote Control Unit (RCU) port
6 Num lock indicator 19 CONSOLE audio jack (3.5 mm stereo)
7 Caps lock indicator 20 CONSOLEkeyboard/mouse USB Type-A port
8 Scroll lock indicator 21 CONSOLE keyboard PS/2 mini-DIN 6-pin port
9 AC power inlet 22 CONSOLE mouse PS/2 mini-DIN 6-pin port
10 PC ports 23 PC keyboard/mouse USB Type-B port
11 PC DisplayPort video port 24 PC audio jack (3.5 mm stereo)
12 PC DVI-I video port 25 PC DPP USB Type-B port
13 CONSOLEDisplayPort video port
Table 2.10 SC 945XP KVM Switch Description
2 Basic Operation
13
