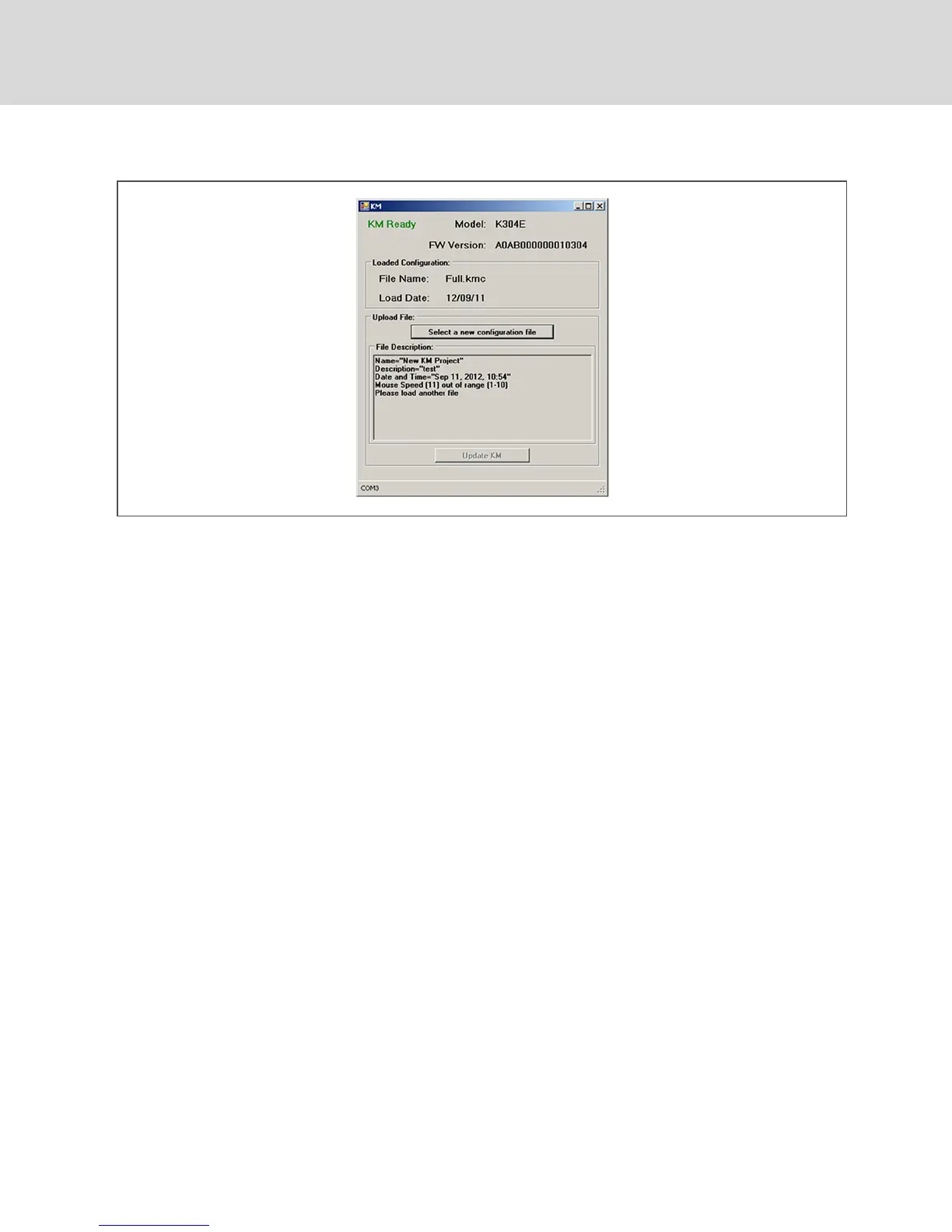

Figure 3.1 KMConfiguration Utility Load Interface with ConfigurationFile Error
• Invalid communication connection to the switch - When communication between the switch
and the utility is lost or fails, the KMconfiguration utility load interface status is KMNot Ready.
Ensure that you use a USB programming cable to connect the switch to the computer that
runs the configuration utility and the cable is connected to the switch's USBmouse port. Also
verify that the loading driver mapping file is installed on the computer. If the connection
continues to fail, restart the switch and relaunch administrator mode.
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
32
