Product Overview
Vertiv | Liebert CRD10 | User Manual 9
1.6.2
Fan
The EC Fan used in the CRD10 models are energy-efficient and innovative with integrated electronics and a
maintenance-free design.
• Ability to regulate the airflow and reduce the fan input power leading to high energy-efficiency.
• Hot swappable, easy-to-connect facility with minimal wiring resulting in to high performance with a wide
range of possible air flow rates. Figure 1-6 shows the EC Fan used in CRD10 model.

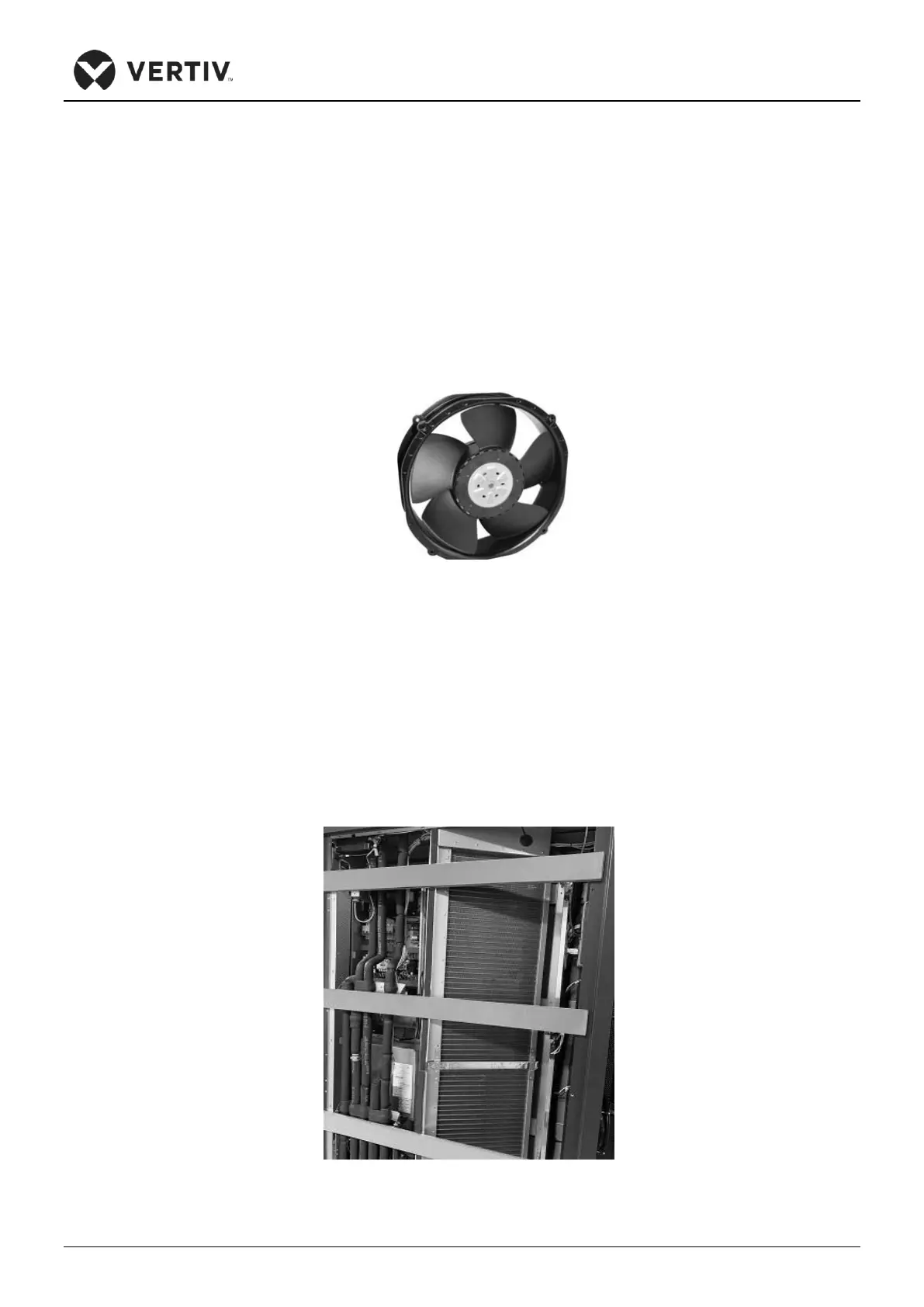

Figure 1-6 EC Fan
1.6.3
Evaporator
The sophisticated design of the distributor ensures that the refrigerant is evenly distributed in each loop,
thereby improving the effectiveness of the heat exchanger.
• Streamlined heat exchanger design and air distribution for optimum performance.
• Fin-tube heat exchanger for higher efficiency Figure 1-7 shows the image of an evaporator.
Figure 1-7 Evaporator
