Mechanical Installation
Vertiv | Liebert CRD10 | User Manual 32
3.4 Top frame and front frame
The CRD10 unit can be optionally field configured with a top frame and a front frame. The top frame and front
frame are installed as follows.
3.4.1
Top frame installation without front frame
The 267×1132mm (10.5×44.6in.) specification top frame installation does not require the front frame to be
installed, and the top frame can be directly installed. The installation method is as follows in figure 3-6.

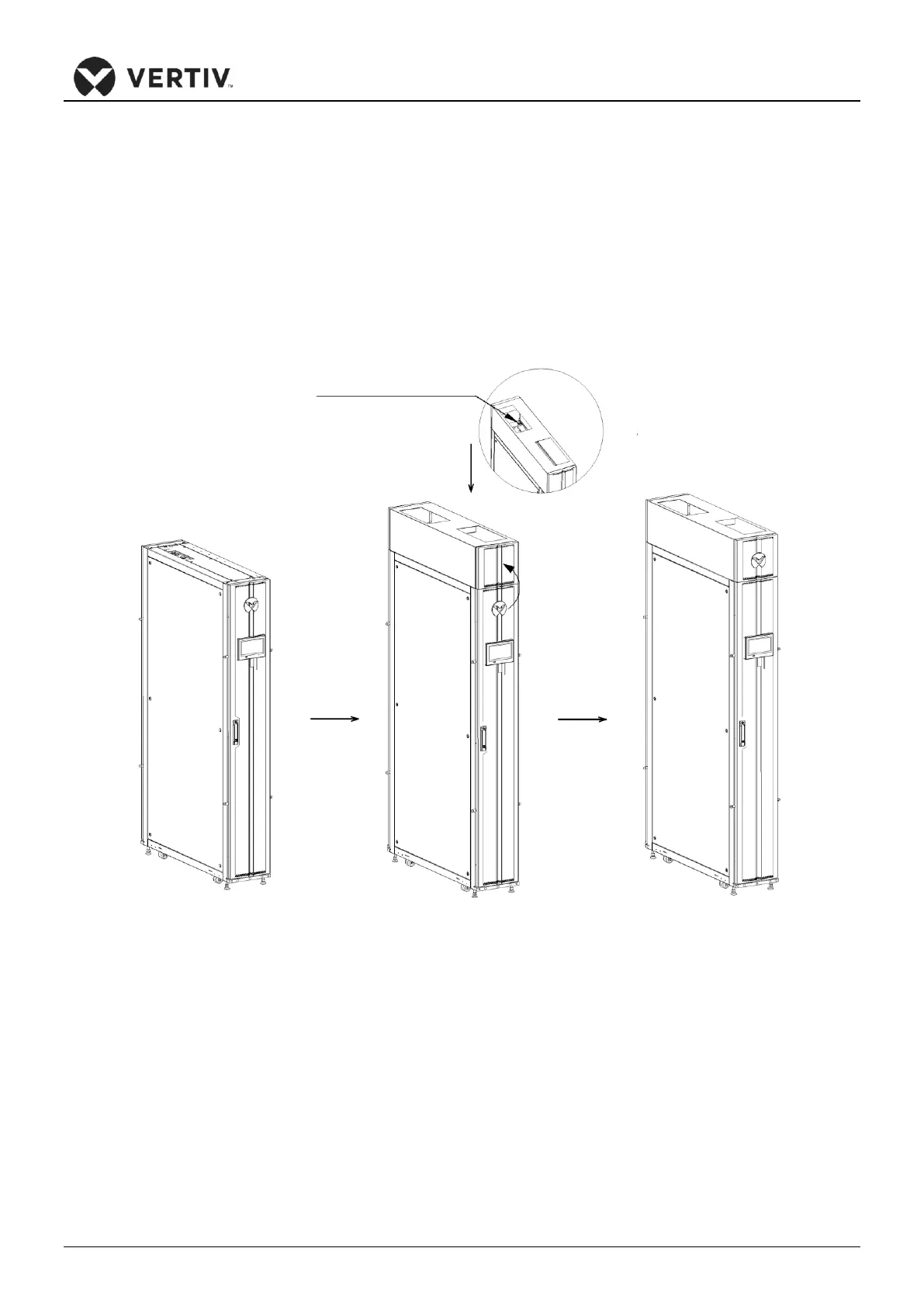

Figure 3-6 Top frame installation without front frame
3.4.2
Top frame installation with front frame
When installing the 267×1232mm (10.5×48.5in.) specification top frame, the front frame needs to be
installed at the same time. The installation method is as shown in figure 3-7. The door is linked to the cabinet
by hinges, and the display and foot rail is fixed with screws. To remove them, pull out the hinges and loosen the
screw.
Screw (M12×30) ×4
Step1: Install the top frame
and fixed it with M12×30
screws(4PCS).
Step2: Move the V logo to
the top frame.
A
