Mechanical Installation
Vertiv | Liebert CRD10 | User Manual 27
Pos.
Description
Pos.
Description
1
Compressor
9
Air Cooled Condenser
2
Crankcase Heater
10
Solenoid Valve (Connection on site)
3
Discharge Temperature Sensor
11
Filter Drier
4
High Pressure Switch
12
Sight Glass
5
High Pressure Transducer
13
Electronic Expansion Valve
6
Schrader Valve
14
Evaporating Coil
7
Ball Valve
15
Suction Temperature Sensor
8
Check Valve
16
Low Pressure Transducer

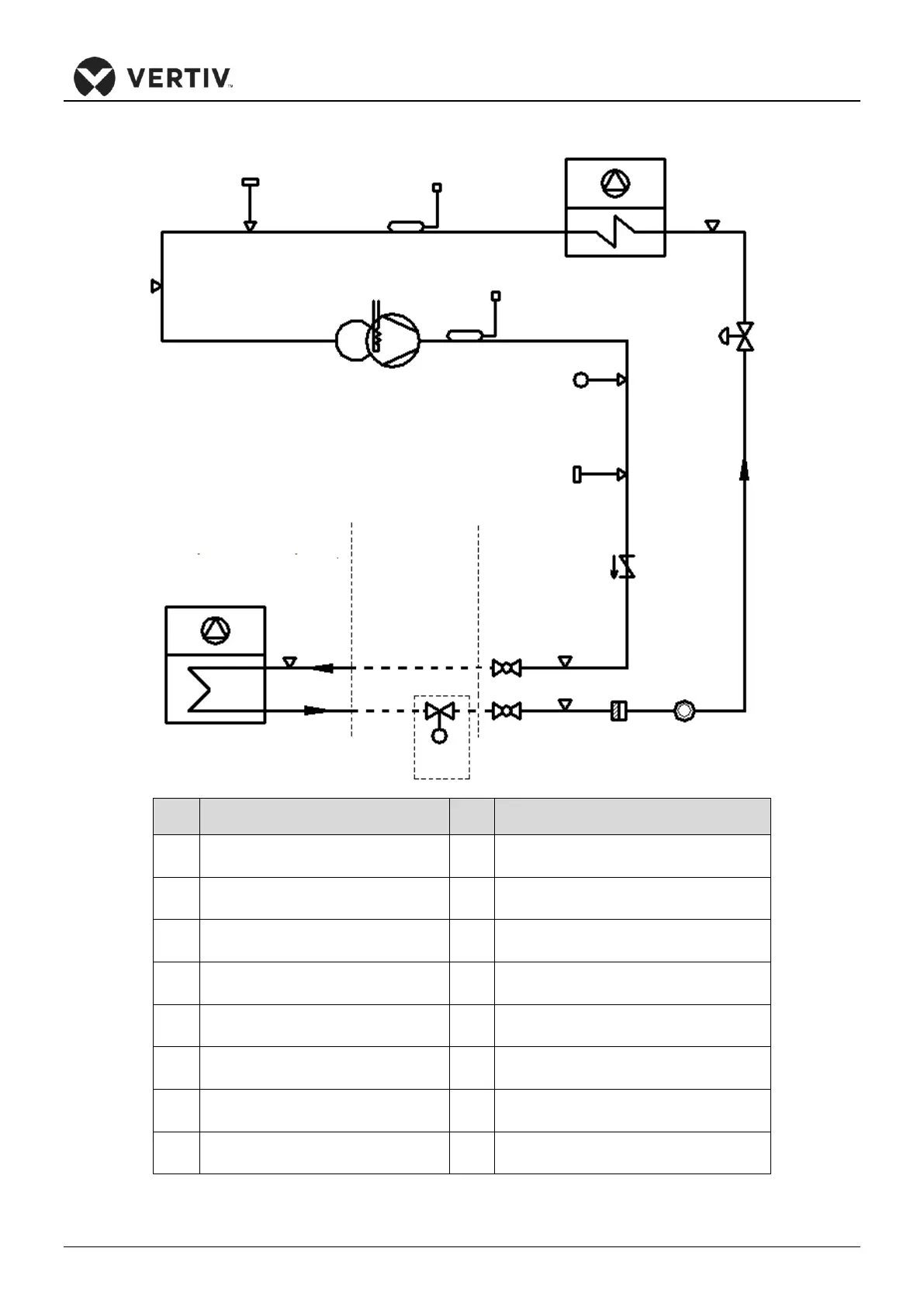

Figure 3-1 System Arrangement of the Unit System
CRD10 Indoor unit
External to CCD Condenser
Connection pipe
16
15
14
6
6
2
1
MC
3
4
5
8
6
7
9
6
10
7
6
11
12
13
