Mechanical Installation
Vertiv | Liebert CRD10 | User Manual 36
3. Screw down the fixing nuts on the feet bolts counter-clockwise and the leveling gets completed. If the
machine room has a mounting bracket, and its width does not exceed 30mm, remove the feet and fix
the cabinet onto the mounting bracket.
3.6.2
Removing the Feet and Fixing the Cabinet
NOTE: Before removing the feet and eventually fixing the cabinet, it is vital that 2 Technicians will be
required for this operation to avoid personal injury and cabinet damage.
Follow the instructions to remove the feet and fixing the cabinet;
•
Removing the feet: Use a movable wrench to loosen the fixing nuts on the four feet bolts in a
clockwise direction. Rotate the hexagon bolts at the bottom of the feet clockwise until the feet drops
from the cabinet frames.
•
Fixing the cabinet: As shown in Figure 3-11, the cabinet provides two holes (diameter: 13.5 mm) on top,
bottom, front and rear respectively.

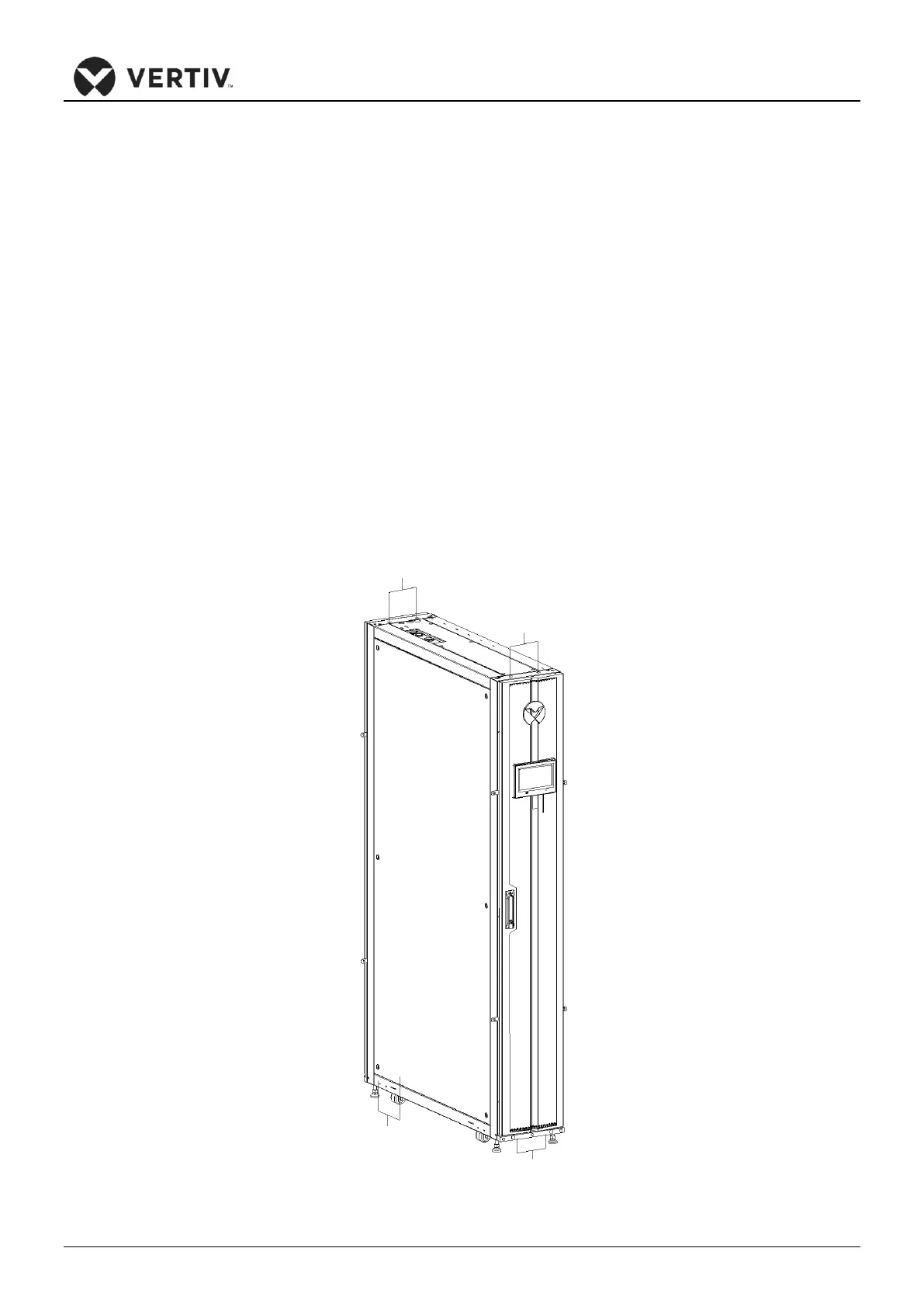

Figure 3-11 Fixing Holes of the Cabinet
